Aisi304 100*100mm Metal Mesh For Climbing Plants Diamond Hole
Aisi304 316 100*100mm Ferruled Stainless Steel Wire Rope Mesh Net 2.0mm For Plant Climbing
Ferruled Stainless Steel Wire Rope Mesh Details:
The standard mesh holes of stainless steel wire rope mesh net is a diamond shape with 60 degrees top angle. The main parameter's for production are the wire diameter, mesh size(center distance), and the width and length of the mesh panels. For the irregular shape of mesh, we will need a drawing to produce the mesh.
| Material | AISI304,AISI316,AISI304L,AISI316L |
| Mesh Type | Ferruled |
| Application | Railing Infill Mesh,Balustrade and balcony Mesh,Safety Mesh,Zoo Enclosure,etc. |
| Features | Flexible,soft,x-tend,support customization |
| Cable Structure | 7x7,7x19 |
| Surface Treatment | Polish,pvc coated |
| Mesh Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m |
| Mesh Opening Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Color | White,stainless steel primary color,black,red,blue,custom |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Stainless Steel Wire Rope Mesh Net Main Parameters :
Stainless steel wire rope mesh detailed description:
- Wire Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable
- Mesh Aperture : 40x40mm,50x50mm,60x60mm,80x80mmcustomized
- Cable Structure : 7 x7,7x19
- The breaking load (lbs) : 270 to 1600
-
Mesh type : Inter-woven type (Sleeveless Webnet) and Ferrule Type (Stainless steel ferrule)
|
Ferruled Stainless Steel Wire Rope Mesh Net |
|||||
| Item | Wire Diameter | Mesh Aperture | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |

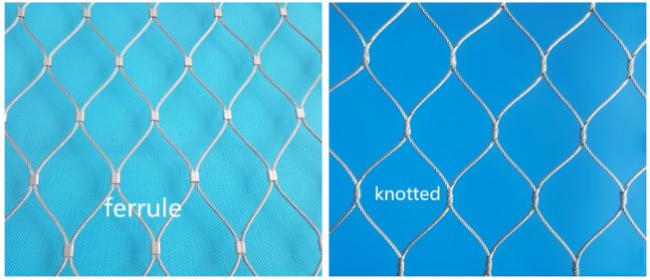

Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.
Advantages :
1. High tensile strength with light weight;
2. Good resistance for weather and corrosion;
3. Good transparency for animal view and admire;
4. Unique : each mesh is designed and manufactured to meet your specific project requirements, the rope diameter, opening size and mesh size also can be customized.
If you are interested in our metal rope mesh product please feel free to contact us.
Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
