Hydraulic Press Water Bulging Machine For Stainless Steel Cookware metal ware
Price:
Negotiable
MOQ:
1 set
Delivery Time:
1 month
Brand:
Star Power
Product Description
Hydraulic Press Water Bulging Machine For Stainless Steel Cookware metal ware
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

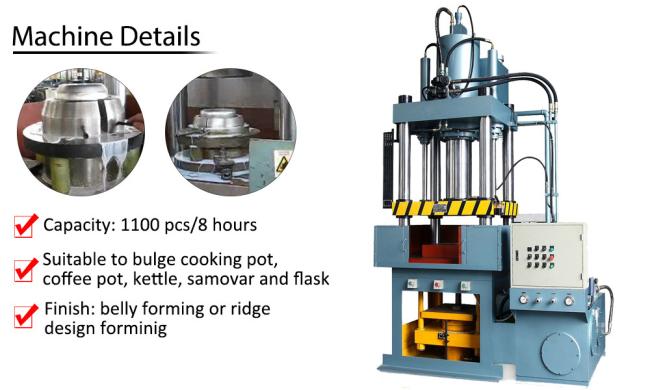

Quick Details:
Capacity:1100pcs/8 hours

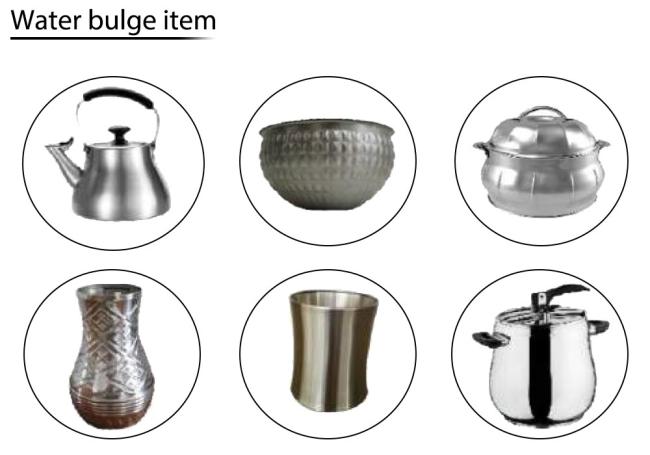

Suitable to bulge cooking pot
coffee pot,kettle,samovar and flask
Finish: belly forming or ridge
design forminig

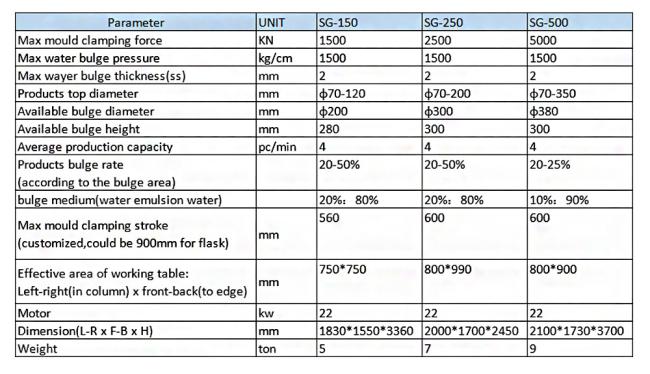

Specifications:
| Parameter | UNIT | SG-150 | SG-250 | SG-500 |
| Max mould clamping force | KN | 1500 | 2500 | 5000 |
| Max water bulge pressure | kg/cm | 1500 | 1500 | 1500 |
| Max wayer bulge thickness(ss) | mm | 2 | 2 | 2 |
| Products top diameter | mm | Φ70-120 | Φ70-200 | Φ70-350 |
| Available bulge diameter | mm | Φ200 | Φ300 | Φ380 |
| Available bulge height | mm | 280 | 300 | 300 |
| Average production capacity | pc/min | 4 | 4 | 4 |
| Products bulge rate according to the bulge area | 20-50% | 20-50% | 20-25% | |
| bulge medium(water emulsion water) | 20%:80% | 20%:80% | 10%:90% | |
| Max mould clamping stroke (customized,could be 900mm for flask) | mm | 560 | 600 | 600 |
| Effective area of working table: Left-right(in column) x front-back(to edge | mm | 750*750 | 800*990 | 800*900 |
| Motor | kw | 22 | 22 | 22 |
| Dimension(L-R x F-Bx H) | mm | 1830*1550*3360 | 2000*1700*2450 | 2100*1730*3700 |
| Weight | ton | 5 | 7 | 9 |
Advantages:
