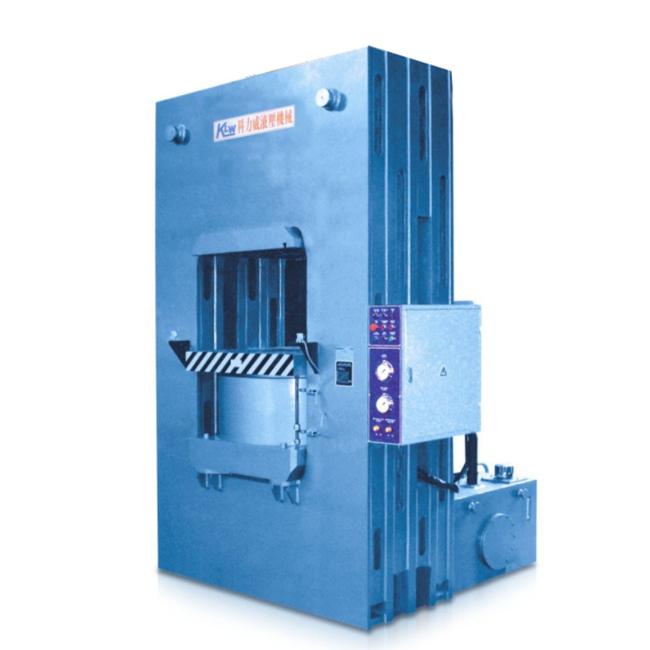

Stainless Steel Durability Stretch Cookware Upper Top Frame Hydraulic Press Machine
Stainless Steel Durability Stretch Cookware Upper Top Frame Hydraulic Press Machine
The equipment is widely used in metal products, embossing, complex mold at theend ofthe industry and other products molding.
Product Description:
1. The overall steel plate structure frame, with sufficient steel.
2. no-load upstream speed, fast boost power consumption low.
3. accessories with imported parts, high degree of durability. Equipped with photoelectric protection device.
Quick Details:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Specifications:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 180 | To be negotiated |
Applicable areas:
1. hardware products,embossed, complex mold and other complex products with the use of molding.
2. Typical products are: watch case, strap, chain machine, glasses accessories, Western tableware, all kinds of badges, commemorative coins, heating pipe molding, stainlesssteel products, shallow stretch bulge and various spare parts correction Assembly and so on.
Main technical parameters:
| Projects | YDK-2000T |
| Nominal force(KN) | 20000 |
| Liquid maximum working pressure(Mpa) | 40 |
| Maximum stroke(mm) | 250 |
| The maximum distance from the work surface to the beam(mm) | 600 |
| Table up speed(mm/s) | 80/120 |
| Motor power(KW) | 37+3 |
| Workbench effective area(mm) | About:1000 Before and after:1000 |
| Dimensions (approx.)(mm) | About:2330 Before and after:2360 HIgh:3585 |
The technical parameters listed above are subject to change without notice, can be customized according to the requirements of customer technical parameters.
