Compact Right-Angle 720 Degree Swivel Micro Nano Bubble Faucet Aerator with M22 M24 Connector

Product Overview

The BriskSpring Compact Right-Angle Faucet Aerator is a space-saving micro nano bubble faucet accessory designed for compatible household kitchen and bathroom taps.

This version uses a short right-angle elbow structure that positions the outlet close to the faucet connection. Its compact body is suitable for installations where surrounding space is limited or where a long extension structure is not required.

Water passes through the internal gas-liquid cutting structure, where air is mixed into the water stream to produce a fine bubble-rich outlet flow. The product can also incorporate a reusable stainless steel screen gasket and multi-layer stainless steel mesh for basic interception of relatively large visible particles.

The compact aerator is intended for municipal tap-water applications. It should not be presented as an RO purifier, sterilization system or solution for dissolved contaminants.

Product Specifications

The compact aerator is connected directly to a compatible faucet outlet using the confirmed M22 or M24 connection.

When water enters the product, it passes through the valve core and internal gas-liquid cutting channels. The channel structure introduces air into the water flow and generates a fine bubble-rich outlet stream.

Before leaving the outlet, the water passes through the reusable stainless steel filtering structure. The screen gasket and multi-layer mesh help intercept relatively large visible particles that may be carried through household water pipelines.

The short elbow design redirects the water flow at a right angle while keeping the complete product close to the faucet body. This helps reduce the amount of installation space required.

The outlet direction can be adjusted according to the faucet and sink configuration. Actual movement range and water pattern should be confirmed according to the final production structure.

Key Advantages

• Compact Right-Angle Design

  The short elbow body redirects the water flow while occupying less space than an extended faucet attachment.

• Suitable for Limited Spaces

  The compact structure can be evaluated for small bathroom basins, shallow sinks and faucets installed close to a wall or mirror.

• Adjustable Water Direction

  The swivel connection allows the outlet position to be adjusted for everyday washing and basin cleaning.

• Bubble-Rich Outlet Flow

  Gas-liquid cutting technology introduces air into the water stream without requiring an external electrical connection.

• Reusable Stainless Steel Filter

  The internal stainless steel screen and mesh can be cleaned and reused depending on source-water conditions.

• Durable Internal Structure

  The product can be configured with an H59-1 brass connector and a SUS304 stainless steel valve core for compatible municipal tap-water applications.

Applications

• Compact bathroom washbasins
• Small kitchen sinks
• Faucets installed close to walls or mirrors
• Hand-washing applications
• Face-washing and basin-rinsing applications
• Daily sink and faucet cleaning
• Residential faucet accessory projects
• Retail, wholesale and private-label programs

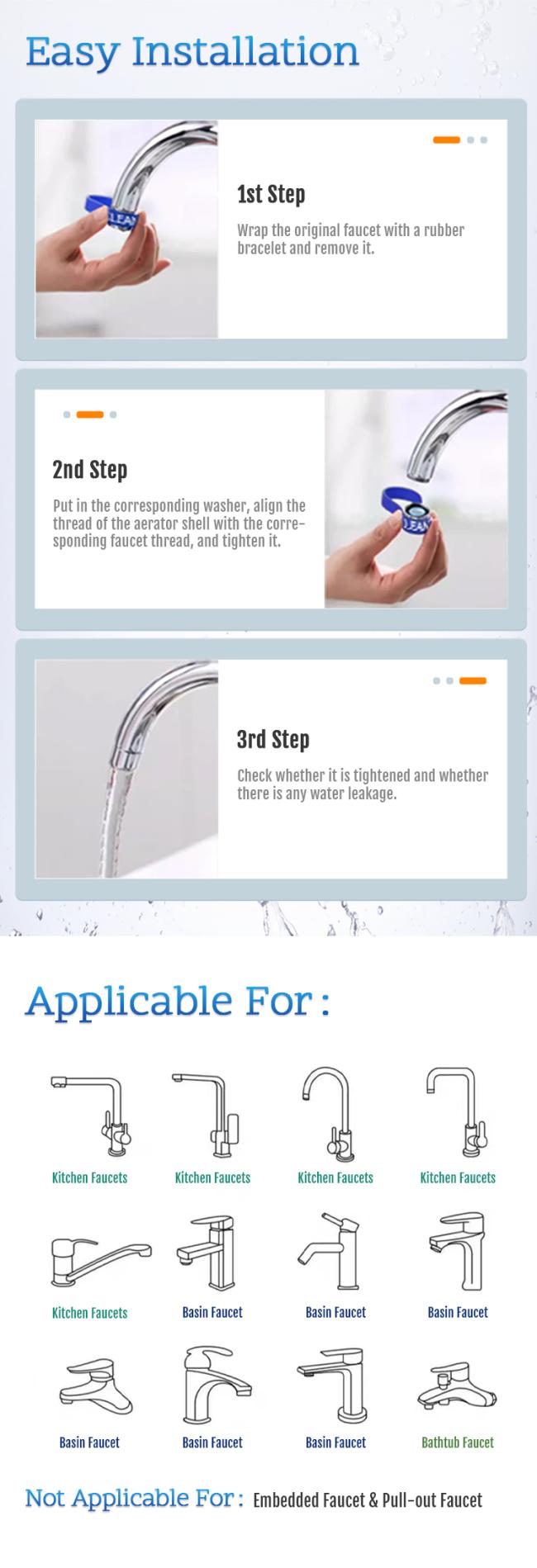

Installation Notes

Confirm that the faucet uses a compatible M22 or M24 connection before installation. The thread diameter, internal or external thread structure and required adapter should be checked using the actual faucet.

Because this version uses a compact right-angle body, check that the outlet direction will not interfere with the faucet handle, wall, mirror or basin edge.

Clean the original faucet outlet and correctly position the sealing gasket before fitting the aerator.

Tighten the connector securely but do not overtighten it. Excessive force may damage the faucet thread, adapter or sealing gasket.

Open the faucet gradually after installation and check for leakage. Rotate or reposition the outlet only through the normal operating range.

Clean the internal screen and mesh if sediment accumulation causes a noticeable reduction in water flow.

The product should only be used with municipal tap water within the confirmed operating pressure and temperature ranges.

Why Choose BriskSpring

BriskSpring provides OEM and private-label support for faucet aerators, water-saving accessories, bubble-generation products and household water pre-treatment components.

Project services can include custom branding, packaging, instruction manuals, connector options, finish selection and supporting technical materials.

The final product description, filtration data, bubble-performance claims and compliance information should be confirmed according to the selected model and production configuration.

FAQ

• 1. What is the main advantage of this compact model?

  The short right-angle structure occupies less space and keeps the outlet close to the faucet body, making it suitable for smaller sinks and restricted installation areas.

• 2. Does the right-angle structure reduce water flow?

  Actual flow performance depends on inlet pressure, internal channel design and faucet conditions. The product should be tested under the intended installation conditions.

• 3. Does it fit M22 and M24 faucets?

  The product can be supplied or configured for compatible M22 or M24 faucet connections. Final thread specifications must be confirmed before ordering.

• 4. Can the outlet direction be adjusted?

  The swivel connection is designed to allow directional adjustment. The exact rotation range should be confirmed according to the final product structure.

• 5. What can the internal filter intercept?

  The reusable stainless steel structure helps intercept relatively large visible particles such as small sediment and rust fragments. It does not remove dissolved contaminants.

• 6. Is it suitable for purification of drinking water?

  No. It is a faucet outlet accessory with basic coarse filtration and does not replace a complete drinking-water treatment system.

• 7. How should the internal filter be maintained?

  Remove the accessible outlet section, rinse the screen and mesh with clean water, and reinstall the components in their original order.

• 8. How frequently should it be cleaned?

  Cleaning frequency depends on pipeline condition, visible sediment level, water consumption and actual outlet-flow performance.

• 9. Can it be installed in a commercial washroom?

  It may be evaluated for compatible applications, but water pressure, operating frequency, faucet dimensions and local compliance requirements should be confirmed first.
