BriskSpring N1-2C-BS Whole House Water Filtration System with 1-10 Micron Filtration and 3 T/H Flow Rate Featuring Quick-Service Cartridge
BriskSpring N1-2C-BS Whole House Water Filtration System with 1-10 Micron Filtration and 3 T/H Flow Rate Featuring Quick-Service Cartridge
Product Overview
The N1-2C-BS provides distributors, water-treatment companies and residential installers with a compact central filtration solution for municipal tap water.
Its standard PP Origami + Carbon Fiber composite cartridge provides 1-10 micron filtration, while the rated flow reaches 3 T/H / 13.2 GPM, supporting compatible residential whole house water demand.
The product is designed around easier cartridge servicing. A one-turn operating structure integrates unlocking, water shutoff and depressurization, allowing the front housing to be opened and the cartridge removed directly.
Routine cartridge replacement can be completed without shutting off the household main water valve, helping installers reduce service steps and giving end users a simpler maintenance experience.
For B2B buyers, N1-2C-BS is not only a central purifier but also a platform for building a continued replacement-cartridge business.
Key Features
Rated flow reaches 3 T/H / 13.2 GPM, providing a compact central filtration option for compatible residential municipal water systems.
The standard PP Origami + Carbon Fiber cartridge provides 1-10 micron filtration for household central water treatment.
Rated total purified water capacity is 50,000 L, giving distributors and project buyers a clear specification for product comparison.
The quick-release structure allows the cartridge to be removed rapidly after the unit is unlocked and opened.
The integrated service structure allows normal cartridge replacement without closing the household main water valve.
Unlocking, internal water shutoff and depressurization are combined into one operating structure to simplify routine maintenance.
The product provides a visual cartridge service reference with Green for 0-90 days, Yellow for 91-105 days and Red for 106-120 days.
Two connection options help distributors and installers match different compatible residential plumbing configurations.
The unit uses 1 x 18650 lithium-ion battery, reducing dependence on a nearby electrical outlet.
At 380 x 235 x 158 mm, the purifier combines central filtration capability with a relatively space-efficient installation footprint.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | BriskSpring |
| Model Number | N1-2C-BS |
| Product Type | Compact Central Water Purifier |
| Water Flow Rate | 3 T/H / 13.2 GPM |
| Filtration Precision | 1-10 Micron |
| Rated Total Purified Water Capacity | 50,000 L |
| Filter Cartridge Material | PP Origami + Carbon Fiber |
| Applicable Water Quality | Municipal Tap Water |
| Applicable Pressure Range | 0.1-0.4 MPa / 14.5-58.0 PSI |
| Connector Size | 3/4 Inch or 1 Inch |
| Connector Material | Premium H59-1 Brass |
| Internal Power Supply | 1 x 18650 Lithium-Ion Battery |
| Applicable Environment Temperature | +5 C to +38 C / 41 F to 100.4 F |
| Product Dimensions | 380 x 235 x 158 mm |
| Item Weight | 1.5 KG |
| Included Components | Compact Central Water Purifier, User Manual, 2 Sealing Gaskets, 2 Brass Connectors |

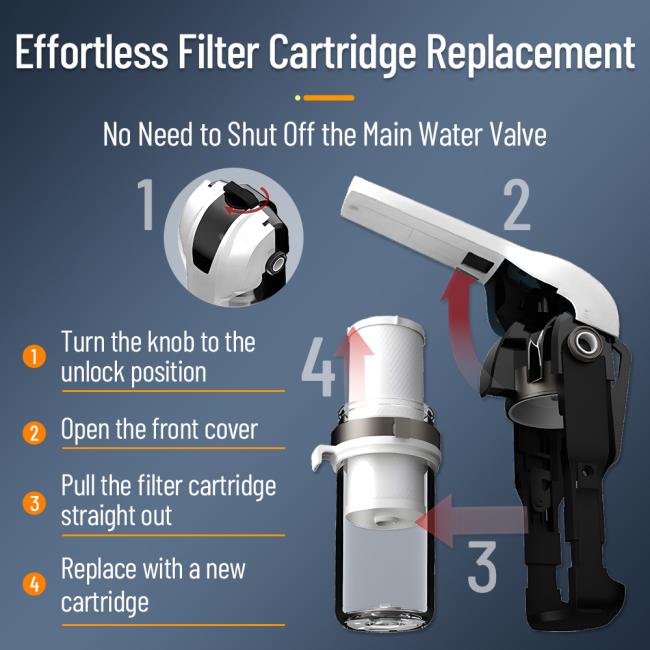

Designed for Easier Maintenance
Traditional central filtration equipment can create additional service work when cartridge replacement requires shutting down the household water supply or using multiple tools.
N1-2C-BS is designed to simplify this process.
- Step 1: Turn the control knob to the unlock position.
- Step 2: Open the front housing.
- Step 3: Pull the filter cartridge straight out.
- Step 4: Insert the replacement cartridge and close the unit.
This structure helps reduce routine maintenance complexity for both professional installers and end users.

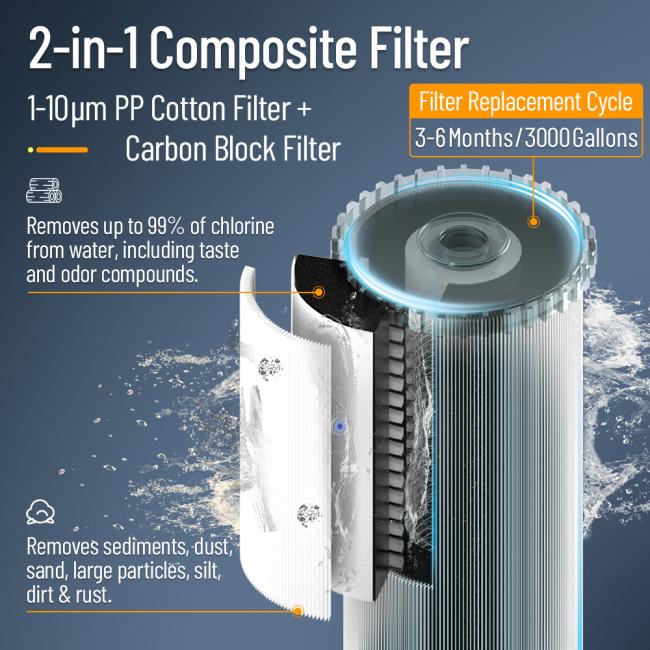

Composite Cartridge System
The standard cartridge uses:
Provides fine physical filtration for sediment and suspended particles within the specified 1-10 micron filtration range.
Provides an additional carbon-based treatment stage within the composite cartridge.
Product materials also show alternative cartridge solutions including:
- PET Folded Filter Element
- UDF Activated Carbon / Carbon Fiber
- PP Polypropylene Melt-Blown Filter Element
This gives B2B buyers additional flexibility when planning product configurations for different local market requirements.
Three-Color Cartridge Management
The integrated indicator provides an intuitive replacement reference:
Normal cartridge use period.
Cartridge replacement reminder.
Cartridge replacement required.
This visible reminder system helps reduce uncertainty around routine cartridge servicing.
B2B Buyer Advantages
Quick cartridge access and integrated shutoff/depressurization help installation companies simplify routine maintenance.
The replaceable composite cartridge creates an ongoing consumable opportunity after the initial equipment sale.
The front-opening quick-release structure, three-color indicator and compact housing provide features that distributors can easily demonstrate to customers.
Multiple cartridge concepts shown in the product program allow distributors to develop different filtration configurations around the same equipment platform.
3/4 Inch and 1 Inch options provide practical coverage for different residential installation requirements.
3 T/H flow, 1-10 micron filtration and 50,000 L rated capacity provide purchasing teams with measurable parameters for comparison and project selection.
Applications
- Residential Whole House Water Filtration
- Municipal Tap Water Treatment
- Main Water Inlet Filtration
- Apartment Central Water Purification
- Villa Water Treatment Systems
- Residential Plumbing Projects
- Upstream Household Water Treatment
- Water Treatment Distributor Product Programs
Package Contents
- Compact Central Water Purifier
- Filter Housing
- Filter Cartridge
- Brass Adapters
- User Manual
- Mounting Bracket
- Washers
- Expansion Anchors
- 18650 Battery
FAQ
The rated flow rate is 3 T/H / 13.2 GPM.
The standard filtration precision is 1-10 microns.
The standard cartridge material is PP Origami + Carbon Fiber.
The rated total purified water capacity is 50,000 L.
Yes. The product's service structure allows routine cartridge replacement without shutting off the household main water valve.
The product supports 3/4 Inch and 1 Inch connections.
The applicable pressure range is 0.1-0.4 MPa / 14.5-58.0 PSI.
It is designed for municipal tap water.
Green, yellow and red LED indications provide cartridge replacement references across the 0-120 day period.
The unit uses 1 x 18650 lithium-ion battery.
