15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
High voltage 15kwh-50kwh Lithium-ion battery pack smart BMS Lifepo4 51.2v 100Ah Rack Mounted Battery Lithium Ion Battery
High Voltage 50kWh 75kWh Commercial Energy Storage Cabinet Description:
Our Commercial and Grid-Tied/ Off-Grid Energy Storage System is a flexible and scalable solution ideal for industrial use.
It supports peak shaving, self-consumption, and grid-tied power sales across a range of industries.

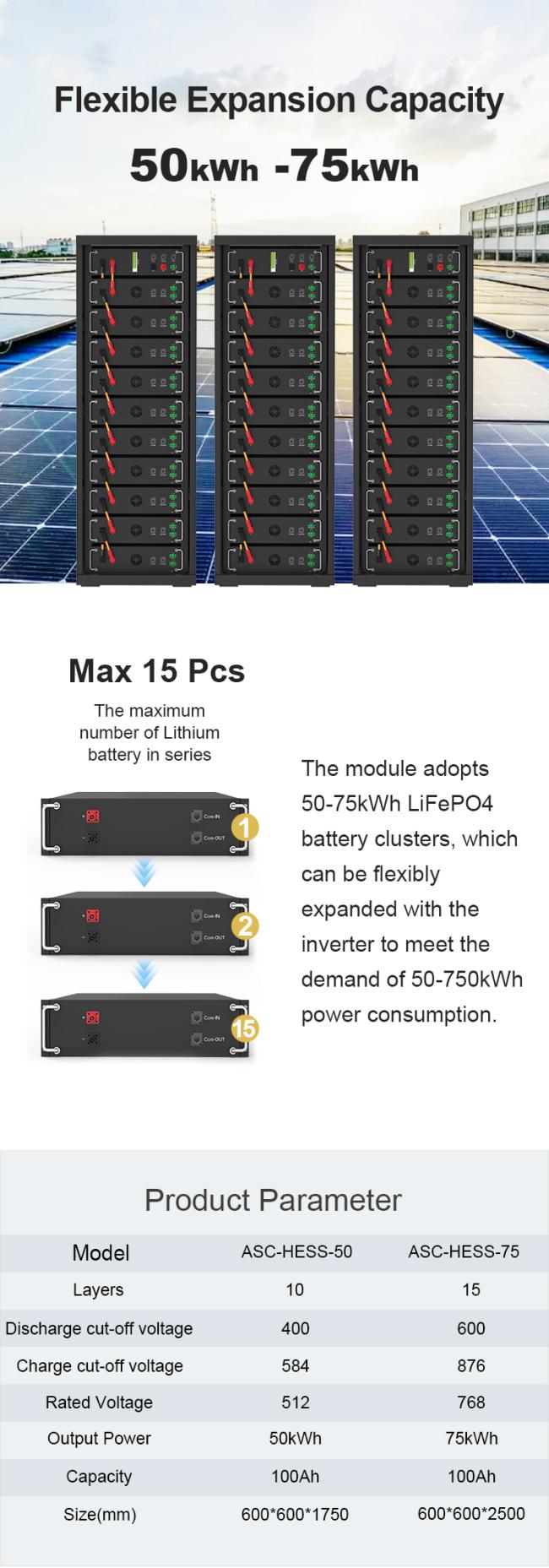

With a capacity ranging from 15kWh to 750kWh, it can be easily expanded to meet any energy needs.
The modular design allows for customization and expansion based on specific requirements.
With our 24/7 technical support, you can be assured of prompt assistance in case of any issues.
Features :
- Product Item: 50kWh 75kWh High voltage energy storage cabinet
- Capacity: 100Ah
- Voltage: 512V/ 768V
- Material: lithium iron phosphate
Specifications:
| Nominal Voltage |
512V-530V |
| Rated Capacity | 100Ah |
| Stored energy | 50 kWh |
| Cycle life@100%DOD | 4000 times |
| Weight | 650 KG |
| Internal Resistance |
≤40 mΩ |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 50 A |
| Charge Cut-off Voltage |
584V |
| Discharge Cut-Off Voltage | 400V |
| Dimensions |
600*600*1750mm |
| Operating Temperature Range | 20~60℃ |
| Charge |
0~55℃ |
| Discharge |
-20~60℃ |
|
Communication |
RS485, CAN |
| Life Expectancy (years) | 10-20 years max |
|
x. Efficiency |
97.60% |
|
Euro Efficiency |
97.00% |
|
MPPT Efficiency |
99.90% |
|
Grid Regulation |
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Product Details :
