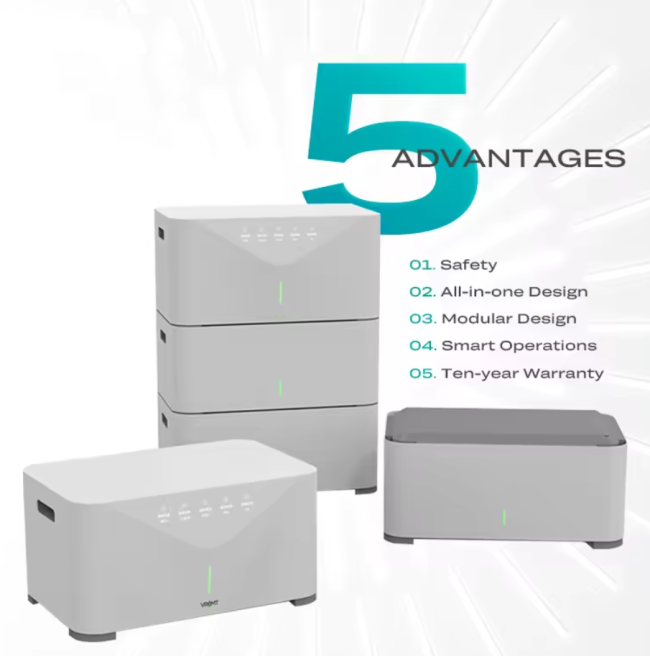

Residential 10kw Energy Storage Solar System All In One ESS With EMS And BMS

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

Residential 10kw Energy Storage Solar System All In One ESS With EMS And BMS

Product parameters
PV Input
Maximum PV Input Power
7500Wp
12000Wp
15000Wp
Rated input voltage
150V~950V/600V
200V~950V/600V
Maximum input voltage
1100V
Minimum Input Voltage/Startup Voltage
60V/180V
Number of MPPTs / Number of MPPT strings per circuit
2/1
Maximum input current per MPPT
20A
Maximum short-circuit current per MPPT
30A
MPPT efficiency
99.90%
European efficiency/Maximum efficiency
97.2%/98%
97.9%/98.4%
Pack Data
Number of packs
2
3
4
Available Power
5.6kWh
8.4kWh
11.2kWh
Weight
60kg
90kg
120kg
Rated charge/discharge power
5kW
7.5kW
10kW
Maximum Discharge Power
10kW, 10s
15kW,10s
20kW,10s
Rated Voltage
400V
Battery Type
LFP
AC Output
Voltage Range/Rated AC Voltage
270V~480V/3/N/PE, 220V/380V; 230V/400V; 240V/415V
Rated Grid Frequency
50Hz/60Hz
Rated apparent power
5000VA
8000VA
10000VA
Rated Grid Output Current (@400V)
7.3A
11.6A
14.5A
THDi
<3%
On-grid AC input
Rated Grid Voltage
220V/380V; 230V/400V; 240V/415V
Rated Grid Frequency
50Hz/60Hz
Maximum AC Input Power
10000W
16000W
20000W
Off-grid AC input
Rated Output Voltage
270V~480V/3/N/PE, 220V/380V; 230V/400V; 240V/415V
Rated output frequency
50Hz/60Hz
Rated apparent power
5000VA
8000VA
10000VA
Rated current (@400V)
7.3A
11.6A
14.5A
Maximum switching time
10ms
THDv
<2%
General Data
PCS Weight
25kg
Operating Temperature Range
-25~60℃
Heat Dissipation Method
Phase Transition Cooling
Protection Grade
IP66
Maximum Relative Humidity
100%
Communication
WIFI/LAN/Bluetooth
Warranty
Pack 10 years / pcs 5 years
Company Profile

Guangzhou Pei Mengdan new energy Technology Co., LTD has growing as a leading manufacturer and exporter of lithium battery for energy storage Solutions in China. On the basis of technology development, our company has taken in a group of experienced personnels who are talented in senior management, engineering and skills of producing. In the company, our great attention is paid to basic management, stable quality, continuously upgrade technology, sale and after-sale services, to enhancing the market competitiveness of our products.

FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.

Question 2:What is the warranty period, and how many years?
Answer 2: The warranty period for batteries is 5-10 years.

Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime.

Question 4: Is the sample available and free?
Answer 4: Sample will be charged a cost.

Question 5: Do you support OEM/ODM?
Answer 5: Of course, we can do customized services for our partners
