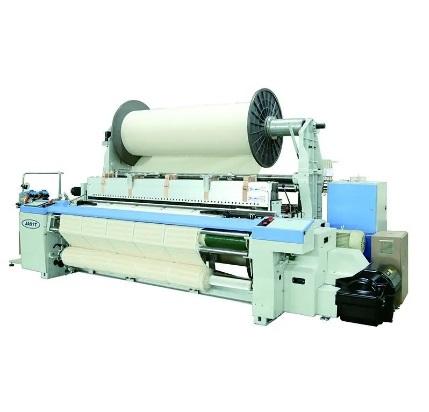

JA93T Terry Towel Making Machine Double Beams Air Jet Weaving Loom With Dobby Or Jacquard Shedding

JA93T Terry towel weaving machine air jet loom is a new generation of air jet looms, which developed on the basis of JA93 airjet weaving loom. Through a large number of market research, communicated with customers, in-depth analyzed, to meet the needs of customers by meticulous research and development. The terry loom performance is a leading level in China, and can be compared with the most advanced terry looms in the world. The design of JA93T towel loom shedding, weft insertion, let-off, beating-up, terry formation and take-up is improved according to the requirements of terry operation, making terry weaving more convenient and efficient. The loop towel loom has the characteristics of high speed, high weaving efficiency, high automation and stable performance.

Contact us:

Mob/ Wsap +86 15253270037

E-mail: topbright@yeah.net

Servo Terry Formation mechanism

Terry formation mechanism is the core part of terry making loom. We adopt a new structure: using servo motor as terry formation motor, cooperating with speed reducer to ensure the high efficiency and stability of terry height, easier and more convenient for weaving special varieties terry.

Servo Terry Warp Tension System

The terry warp tension of JA93T terry air-jet loom is controlled by torque motor, which controlling the forward and backward movement of terry warping tension rod. The control system is not only simple but also plays an important role in the accuracy of terry height.

Terry Warp Consumption Precise Control Device

In the weaving process of terry loom, the consistency of terry height is an important standard for evaluating terry weaving loom. Terry Warp Consumption Precise Control Device designed and developed by our company, which obtained information fed back to the system. The amount of terry warp used in weaving can be accurately calculated by adjusting the system to ensure that the height of terry is consistent with each time.

Terry Motion Mechanism

The JA93T Terry airjet loom adopts the electronic terry slider mechanism. The terry effect is achieved by controlling forward and backward movement of the sliding mechanism on the beam by the terry servo motor. Because of the electronic terry slider mechanism, the ideal terry action can be achieved by controlling the angle of slider accurately by the electronic control system, and this way is more accurate and convenient to adjust.

Terry Tension Multi Step Control System

Terry Tension Multi Step Control System can be used to set the terry warp tension in two stages (starting, running) while controlling the weaving ground warp or stopping. Thus, the terry height is consistent from plain fabric to terry. In addition, the system can set terry warp tension through density to realize the diversity of terry weaving.
