27.9mm Plus H Fiber Lens For 4-15KW Empower Laser Cutter Head
Fiber Lens 27.9 * 4.1mm Plus-H Laser Protective Windows For 4-15KW Empower Laser Cutting Head
27.9mm Plus H Fiber Lens For 4-15KW Empower Laser Cutter Head
Product Description

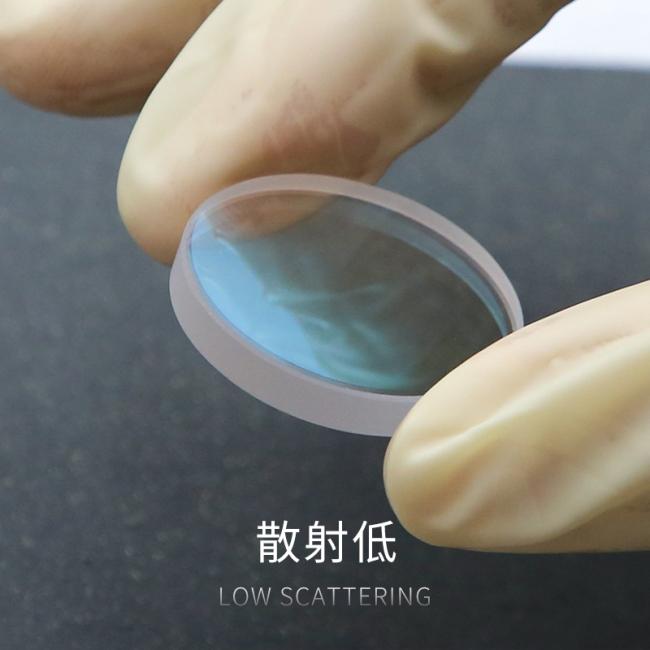

Fiber Laser Protective Lens
Material: JSG1 Fused Silica (Quartz)
Wavelength: 1064nm
Transmittance: 99.5%
27.9mm Plus H Fiber Lens For 4-15KW Empower Laser Cutter Head
| Diameter | Thickness | Wavelength |
| 20 | 2 | 1010-1090nm |
| 20 | 3 | 1010-1090nm |
| 20 | 5 | 1010-1090nm |
| 22.35 | 4 | 1010-1090nm |
| 25 | 2 | 1010-1090nm |
| 25 | 3 | 1010-1090nm |
| 25.4 | 4 | 1010-1090nm |
| 25.4 | 5 | 1010-1090nm |
| 27 | 4 | 1010-1090nm |
| 27.9 | 4.1 | 1010-1090nm |
| 30 | 1.5 | 1010-1090nm |
| 30 | 5 | 1010-1090nm |
| 32 | 4 | 1010-1090nm |
| 34 | 3 | 1010-1090nm |
| 34 | 5 | 1010-1090nm |
| 35 | 4 | 1010-1090nm |
| 35 | 5 | 1010-1090nm |
| 36 | 5 | 1010-1090nm |
| 37 | 7 | 1010-1090nm |
| 38 | 2 | 1010-1090nm |
| 40 | 3 | 1010-1090nm |
| 42 | 9 | 1010-1090nm |
| 50 | 1.5 | 1010-1090nm |
27.9mm Plus H Fiber Lens For 4-15KW Empower Laser Cutter Head
Good quality optic fiber protective lens coated AR/AR @ 1030-1090nm at both sides, material adopted JGS1 or Fused Silica (FS). The protective window is used at laser cutting head to protect the focusing lens in case of damage. We can provide any wavelength coating according to customer demand. For other wavelengths, diameter, thickness and coating, we can produce as customized requirements as well.
