Hand Robotic Arm Gripper Manufacturers Metal Economi For Plastic Injection Molding Machine

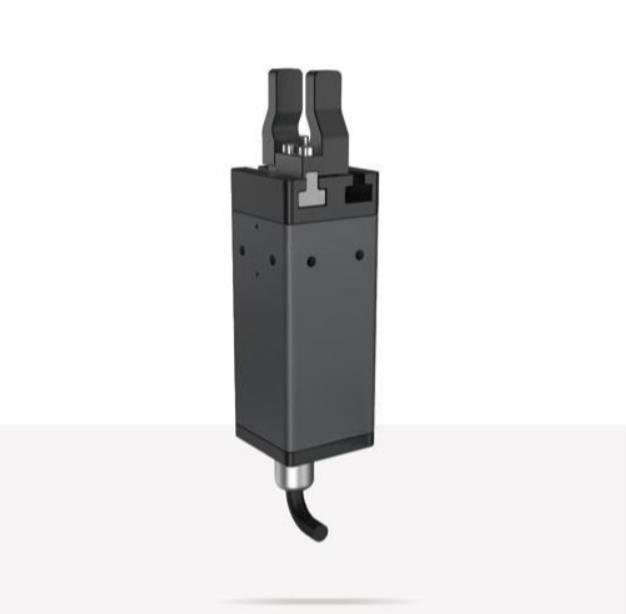

Economic gripper EPG26-015 robot arm use robot arm for plastic injection molding machine
Product Overview
During the transmission and grasping process, replace manual hands to achieve automated gripping. It is widely used in automated production lines, robotic arms, forming machines and other automated mechanical equipment. Parallel fixtures usually have two types: single action and double action. Single action mainly requires ventilation when gripping the product, and there is no need for ventilation when loosening the product. Double acting mainly requires ventilation during clamping and loosening, with higher performance than single acting.
Product Features
1. Anodized, with good strength, high hardness, and strong durability.
2. High quality aluminum alloy, lightweight, can effectively improve work efficiency.
3. High precision guide rail, without derailment.
4. High quality sealing ring.
5. High installation freedom, chuck can install non-standard parts, strong applicability, and wide use.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code | EPG26-015-1L#-C0024-P40-A |
| Adjustable stroke | 0-26 mm |
| Single finger clamping force | 1-15 N |
| Opening/closing time | 0.3s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 0.3 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.25 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.85 A |
| Rated current | 0.4 A |
| Communication protocol | Modbus RTU(RS 485) |
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 150 N |
| Allowable static moment of slider Mx | 1.2 N·m |
| Allowable static moment of slider My | 0.9 N·m |
| Allowable static moment Mz of slider | 0.55 N·m |

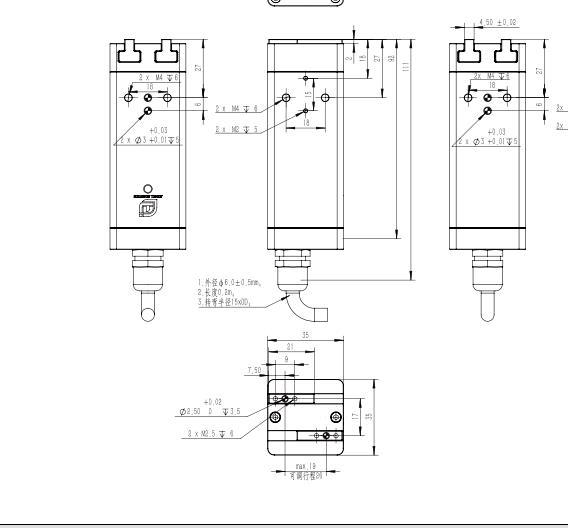

Product parameters table
