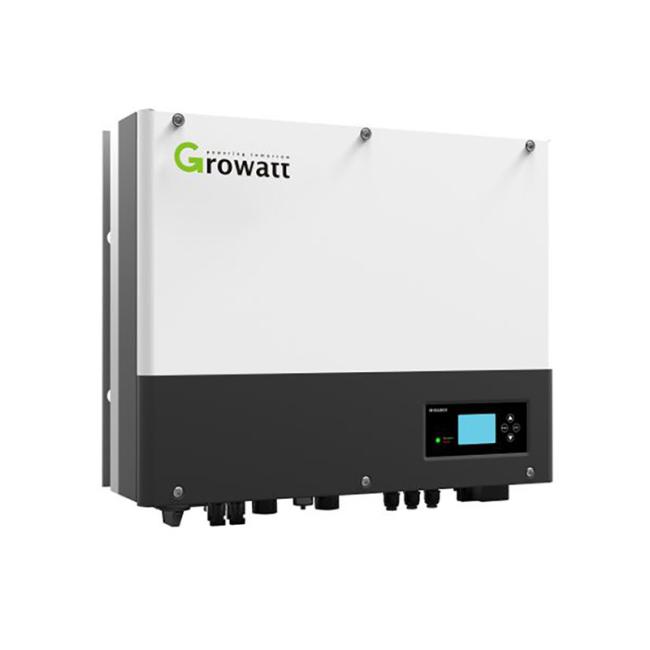

Mppt 6000 Watt Grid Tie Inverter 230v Grid Hybrid Solar Power Inverter With UPS
MOQ:
1 Pieces
Delivery Time:
30 days
Brand:
Kweight
Product Description
6000W MPPT 230V Pure Sine Wave Solar Inverter For On Grid Tie System With UPS Function SPH6000TL BL-UP
Product features:
>UPS function, 10ms transition
>UPS function, 10ms transition
>4kW charge/discharge power
>4kw backup power
>AC-coupled function compatible with third-party inverter
>4kw backup power
>AC-coupled function compatible with third-party inverter
>1.5 DC/AC ratio, 6kw system with 9kW solar input
>13.5A solar input current for high power modules
>VPP interface ready
>Scalable system configuration
>VPP interface ready
>Scalable system configuration
>Safety standard set by LCD directly
|
Datasheet
|
SPH3000
|
SPH4000
|
SPH4600
|
SPH5000
|
SPH6000
|
|
PV Input data
|
|||||
|
Max. recommended PV power (for module STC)
|
6600W
|
8000W
|
9200W
|
10500W
|
11200W
|
|
Max. DC voltage
|
550V
|
||||
|
Start voltage
|
120V
|
||||
|
MPP voltage range
|
120V-550V/360V
|
||||
|
No. of MPP trackers
|
2
|
||||
|
No. of PV strings per MPP tracker
|
1
|
||||
|
Max. input current per MPP tracker
|
13.5A
|
||||
|
Max. short-circuit current per MPP tracker
|
16.5A
|
||||
|
AC Output
|
|||||
|
Rated AC output power
|
3000W
|
4000W
|
4600W
|
5000W
|
6000W
|
|
Max. AC apparent power
|
3000VA
|
4000VA
|
4600VA
|
5000VA
|
6000VA
|
|
Nominal AC voltage (range)
|
230V/(180Vac-270Vac)
|
||||
|
AC grid frequency (range)
|
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
|
||||
|
Max. output current
|
16A
|
22A
|
22A
|
22A
|
27A
|
|
Displacement power factor
|
0.8leading…0.8lagging
|
||||
|
THDI
|
< 3 %
|
||||
|
AC grid connection type
|
Single phase
|
||||
|
AC output power(Backup)
|
|||||
|
Max. output power
|
3000W
|
3000W
|
3000W
|
3000W
|
3000W
|
|
Max. output current
|
17.4A
|
||||
|
Rated AC output voltage
|
230Vac
|
||||
|
Rated AC output frequency
|
50/60Hz
|
||||
|
THDv
|
<3%
|
||||
|
Switch time
|
<10ms
|
||||
|
Battery data
|
|||||
|
Battery voltage range
|
42~59V
|
||||
|
Max charging and discharging current
|
66A
|
85A
|
85A
|
85A
|
85A
|
|
Max charging and discharging power
|
3000W
|
4000W
|
4000W
|
4000W
|
4000W
|
|
Type of battery
|
Lithium /Lead-acid
|
||||
|
Efficiency
|
|||||
|
MAX. efficiency
|
97.2%
|
97.3%
|
97.4%
|
97.5%
|
97.6%
|
|
Euro European efficiency
|
97.0%
|
97.1%
|
97.1%
|
97.2%
|
97.2%
|
|
MPPT efficiency
|
≥99.5%
|
||||
|
Protection devices
|
|||||
|
DC switch
|
yes
|
||||
|
DC reverse polarity protection
|
yes
|
||||
|
AC/DC surge protection
|
yes
|
||||
|
Battery reverse protection
|
yes
|
||||
|
Output over current protection
|
yes
|
||||
|
Output over voltage protection
|
yes
|
||||
|
Ground fault monitoring
|
yes
|
||||
|
Grid monitoring
|
yes
|
||||
|
Integrated all - pole sensitive leakage
|
yes
|
||||
|
General data
|
|||||
|
Dimensions (W / H / D)in mm
|
458/565/188mm
|
||||
|
Weight
|
31kg
|
||||
|
Operating temperature range
|
-25°C... +60°C
|
||||
|
Nighttime power consumption
|
< 10 W
|
||||
|
Topology
|
transformerless
|
||||
|
Cooling
|
Natural
|
||||
|
Protection degree
|
IP65
|
||||
|
Altitude
|
2000m
|
||||
|
Relative humidity
|
0~100%
|
||||
|
PV DC Connection
|
MC4/H4(opt)
|
||||
|
Battery DC Connection
|
OT Terminal
|
||||
|
AC connection
|
Connector
|
||||
|
Interface:RS232/USB/RF/Wi-Fi
|
yes/yes /opt/opt
|
||||
|
Display
|
LCD+LED
|
||||
|
Interfaces:RS485/CAN/USB
|
Yes
|
||||
|
Monitor : RF/WIFI/GPR
|
Optional
|
||||
|
Warranty: 5 years /10 years
|
yes / opt
|
||||
