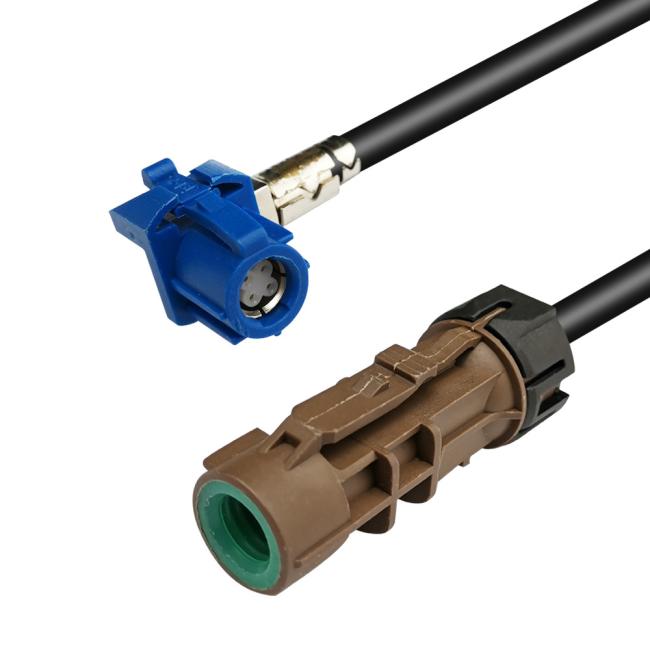

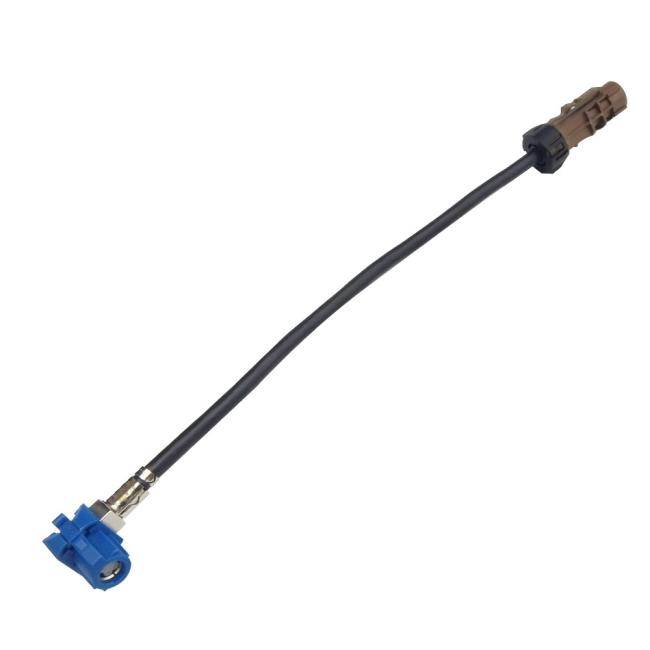

Waterproof HSD Cable Assembly Female Connector 4 Pin High Speed Data Cable
4 Pin Waterproof HSD Female Connector Automotive High Speed Data Cable
Product description:
High-Speed Data (HSD) connectors focus on various motor vehicle applications and are widely used for in-vehicle high-speed data transmission connections, in-vehicle entertainment systems, in-vehicle audio and video transmission, LVDS cameras, tire pressure monitoring and alarm systems, water supply systems, in-vehicle radios, in-vehicle telephones, in-vehicle antennas, etc.
Main Feature:
1. Compliant with LVDS (Low voltage differential signal), Ethernet, and USB protocols.
2. Extend the PCB connector product portfolio.
3. Full range of connectors for non-sealed and sealed applications.
4. Fully shielded connection system of different wire diameters and types.
5. IDB 1394 Automotive Specification.
6. High level of process automation and global manufacturing footprint.
Product Detail:
| Application | Automotive |
| Frequency | DC~6GHz |
| Impedance | 100 Ω |
| Temperature Range | -40° ~ +105°C |
| Working Voltage | 335V r.m.s at Sea Level |
| Housing | PA66+30%GF |
| Insulator | PTFE POM |
| Dielectric withstanding Voltage | > 1000 Voltage |
Our Serivce:
1.Samples are free of charge, only the customer has to pay the courier fee.
2.Accept OEM and ODM orders.
3.Fast delivery time and first-class service.
4.Support multiple logistics methods.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
