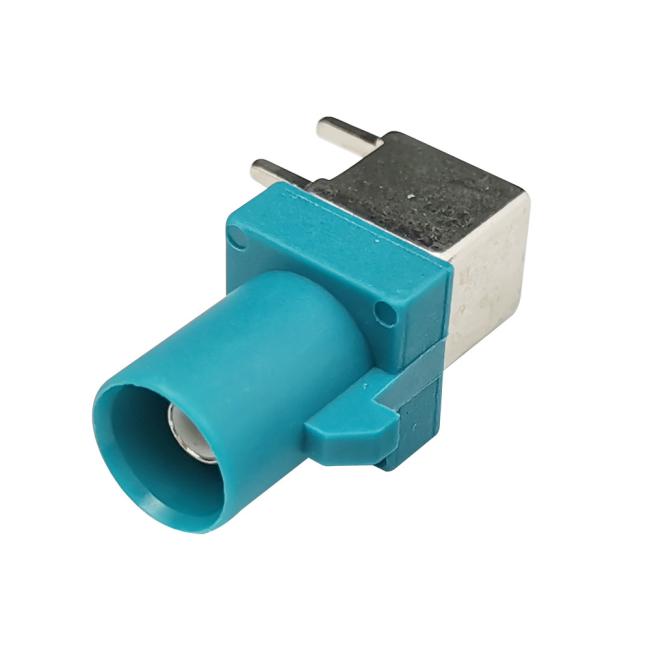

Multipurpose FAKRA PCB Connector Male Z For Automotive Industry
HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector
Description:
FAKRA connectors have been specially developed for automotive applications. They are based on the SMB connector interface and meet the high requirements of the automotive industry in terms of functionality and safety. Designed for high speed data transfer to meet automotive data transfer rates up to 6 GHz.
Key Feature:
1. High-speed shielded connection system for digital data with performance up to 6Gbps.
2. Advanced mechanical and color coding system with 13 different codes.
3. Maximum assembly security.
4. Coaxial plug-in and cable in a rotatable plastic housing.
5. Highly reliable connection with good contact, firm and no loosening.
6. Can be used in combination with a wide range of protocol interfaces, such as LVDS Ethernet and USB.
7. High level of process automation and global manufacturing footprint
8. MOQ:20 PCS
Technical Specifications:
| Material | |
| Housing | PA |
| Center Pin | Copper Alloy |
| Outer contact | Zinc Alloy |
| Insulator | HTN |
| Electrical Performance | |
| Impedance | 100 Ω |
| Frequency Range | DC to 2 GHz |
| Return Loss |
≥20 dB to 1 GHz |
| Insertion Loss | ≤0.1 dB to 2 GH |
| Insulation Resistance | ≥ 1000 MΩ |
| Center Contact Resistance | ≤ 8mΩ |
| Test Voltage | 250 V rms |
| Working Voltage | 100 V rms |
| Contact Current | ≤ 1.5 A DC |
| Mechanical Performance | |
| Mating Cycles | ≥ 25 Time |
| Engagement Force | ≤ 30 N |
| Disengagement Force | ≥5 N |
| Retention Force Latch | ≥ 110 N |
| Temperature Range | -40 °C ~ +105 °C |

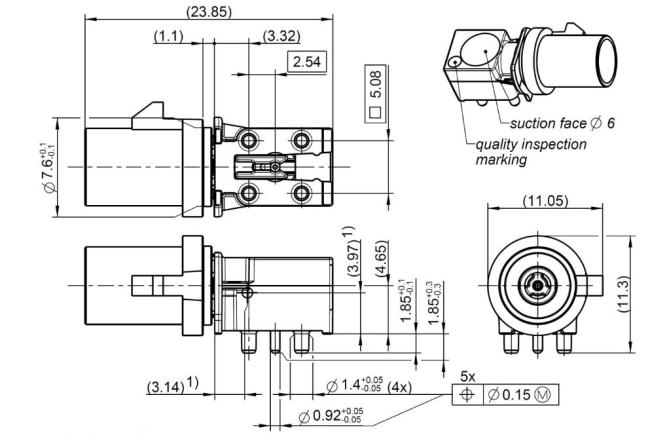

Dimension & PCB Layout:

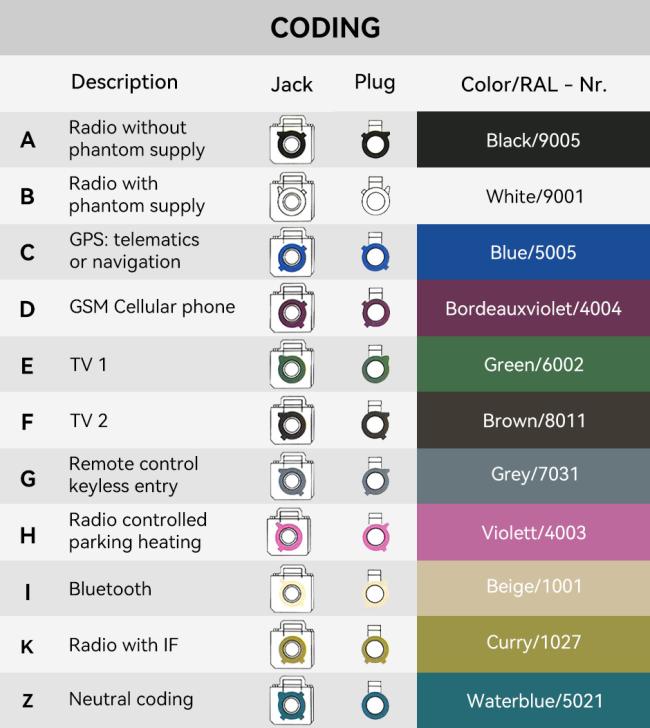

Others Code:
