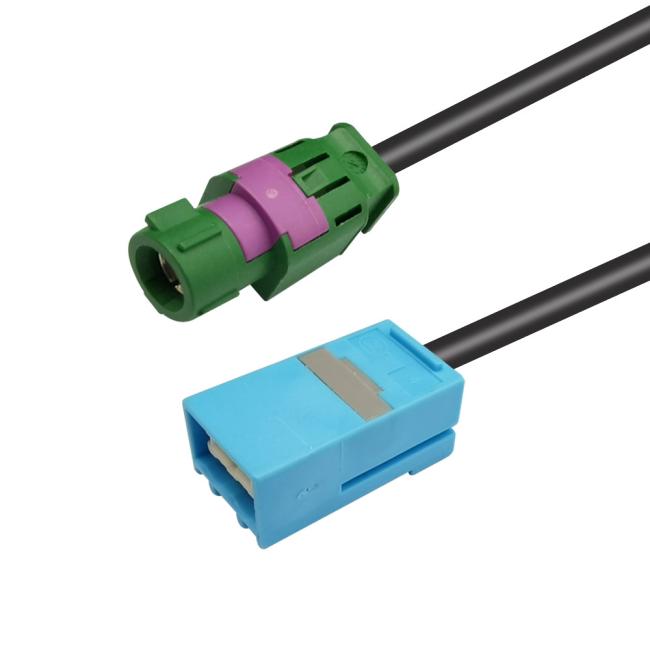

PVC Jacker HSD LVDS Cable To GVIF Video Output Length 20CM 0.5M 1M
Automotive HSD LVDS Cable Conversion Harness HSD To GVIF Video Output Cable For TOYOTA Or LEXUS
Description:
HSD cable connector is a high-performance digital system that prevents crosstalk and external interference from low-voltage differential signals.HSD LVDS cables provide connectivity solutions for automotive infotainment modules, cameras, global positioning satellites, display devices and remote vehicles.
Key Feature:
1. High-speed shielded connection system for digital data.
2. High connection reliability with good contact and firmness without loosening.
3. High assembly security due to primary and secondary locking system.
4. Available for a wide range of coaxial cables (RG58, RG174, RG316, RTK031, RG178, etc.).
5. Excellent data transmission.
6.MOQ:20 PCS
Technical Specifications:
| Electrical Performance | |
| Impedance | 100 Ω |
| Frequency Range | DC to 4 GHz |
| Return Loss | ≥-26 dB ,DC to 1 GHz |
| Insertion Loss | ≤0.1 x √f(GHz) dB |
| Insulation Resistance | ≥ 100 MΩ |
| Center Contact Resistance | ≤ 5 mΩ |
| Voltage Rating | 335 V rms |
| Working Voltage | 100 V rms |
| Contact Current | ≤ 1 A DC |
| Mechanical Performance | |
| Mating Cycles | ≥ 25 Time |
| Cable Retention Force | ≥80 N |
Detail image:
FAQ:
1.Q:How do I apply for samples?
A:You can cantact our customer service,you only need to pay the freigth, our samples are free.
2.Q:What if I don't see the connector I want?
A:You just need to send the producct to us, we have professional engineering to help you answer.
3.Q:How can I get your best price?
A:You can send us your consumption requirement and model by email.
4.Q:How do I customize it?
A:You can send your needs to us bu email or message, we have professional customer service and docking with you.
