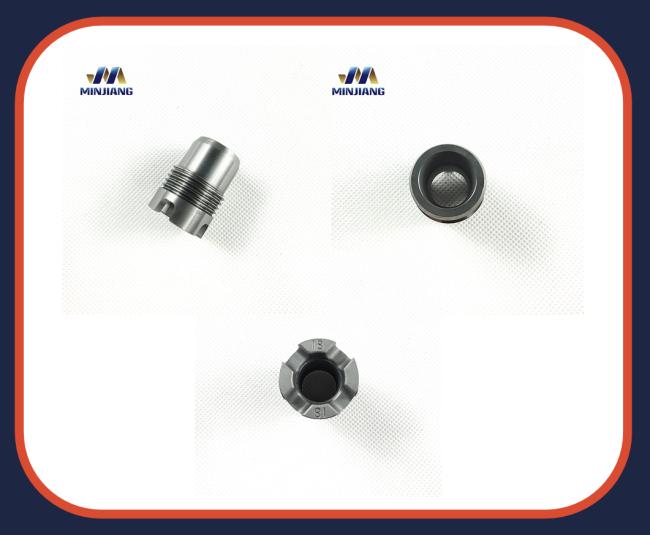

Heat Resistance Tungsten Carbide Nozzles Oil Drilling Carbide Spray Nozzle





Tungsten carbide nozzle is a specialized tool used for a variety of industrial applications. It is made from a combination of tungsten carbide and cobalt, which is then combined with other metals and materials to create a strong and durable tool. The nozzle is designed to be used in high-pressure applications, such as those found in oil and gas industries. The combination of the tungsten carbide and cobalt makes the nozzle highly resistant to wear and tear, and it is also corrosion resistant. This type of nozzle is also able to withstand extreme temperatures, making it suitable for many industrial applications. Tungsten carbide nozzles are used for a variety of purposes, such as in the production of oil and gas, in welding, and in the manufacturing of electronics. They are also used for the application of sealants, adhesives, and other liquids. Tungsten carbide nozzles are ideal for a variety of industrial applications due to their high strength, corrosion resistance, and heat resistance.





Grade	ISO Grade	Chemical Composition		Physical Properties				Applications
		WC%	CO%	Density g/cm3(±0.1)	Hardness HRA(±0.5)	TRS Mpa(min)	Grain Size(μ m)
YG6	K20	94	6	14.85-15.00	90.5-92	1800	1.2-1.6	Carbide burr.
YG6X	K15	94	6	14.80-15.00	91.7-93	1600	＜1.0	High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons.
YG8	K30	92	8	14.62-14.82	89.5-91	1900	1.2-1.6	Wire drawing die and non-standard structure and mechanical component and valve ball.
YG9	K40	91	9	14.40-14.60	89-90	1850	1.2-1.6	Flow sleeves, bushings, rings.
YG9C	K40	91	9	14.50-14.90	87.5-89	1815	1.2-1.6	Nozzles, for the petroleum.
YG11	K40	89	11	14.35	89	3200	1.6-2.0	Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry.
YG11C	-	89	11	14.20-14.40	87.5-89	2200	1.6-2.4	Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries.
YG13	-	87	13	14.10-14.30	87.5-89	2500	1.6-2.0	Sleeves and bushings.
YG13C	-	87	13	14.05-14.25	85.8-87.3	2550	2.4-4.0	Alloy teeth and brazing bits.
