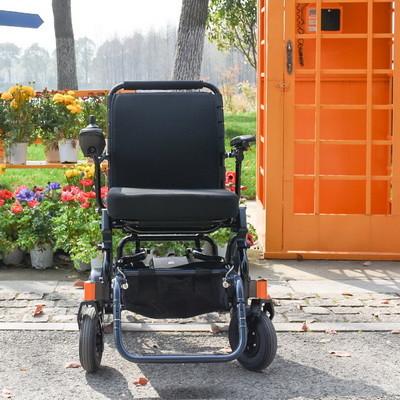

PU Tyre Electric Wheelchair Lightweight Foldable Multifunction
Lithium Battery Electric Wheelchair Lightweight Foldable
Model:F308
Description
Multifunction Foldable Electric Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 22kg (48.5 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 45cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size | 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4.5hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
* Error and uncertainty in measurement
Wheelchair Details
1. Easy operate with a joystick
2. Light weight, lithium battery
3. Aluminum alloy frame make more strong
4. Alumium alloy for front/Rear wheel
5. Electric & Mechanical brake
6. Easy foldable for storage & transportion
7. Armrest can be turned up, more convenient for disabled up and down.
8. Shock-absorber for the front wheel
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
