1000m Infrared Laser Ranging Drone Gimbal Camera Industrial 2 Axis Gimbal Drone HXTS01A

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 7
Brand: Customized
Product Description

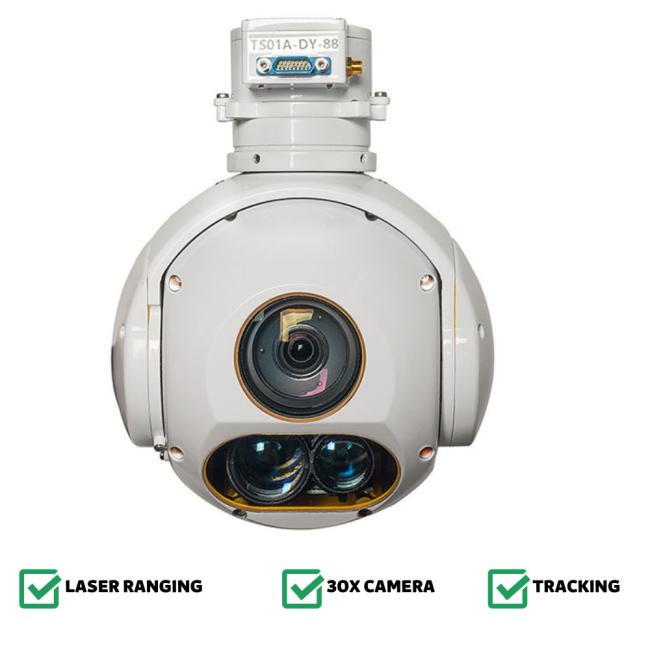

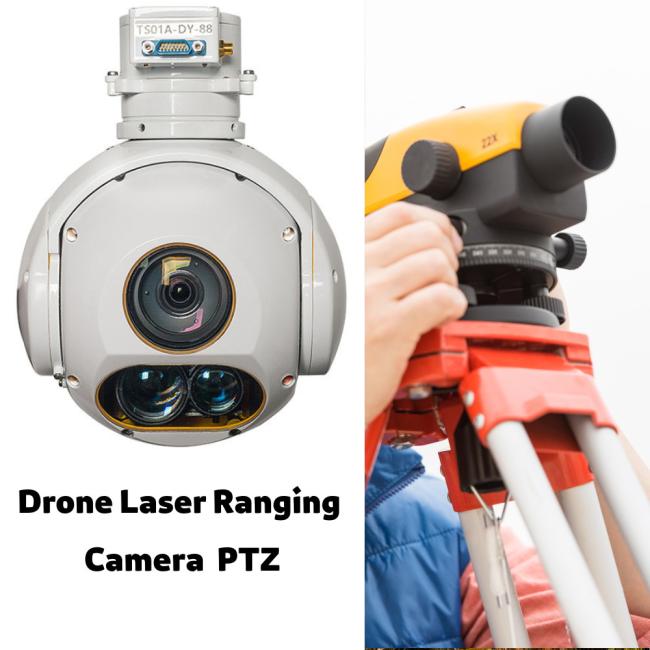

HXTS01A 1KG 2 Axis 1000M Infrared Laser Ranging 30X Zoom Industrial Drone UAV Tracking Gimbal Camera PTZ





Features

The product has compact structure, light weight, mature and reliable technology, and can be mounted on various aerial vehicles such as drones. It can also be assembled on ships and vehicles to meet the requirements of sea, land and air.



30X High-Definition Visible Light Camera

The drone pod has a built-in 30x high-definition visible light camera.



360 Degree Continuous Rotation

The HXTS01 drone pod camera adopts a two-axis gyro-stabilized platform, and a conductive slip ring is installed to achieve 360-degree continuous rotation.





Application Industry Scenario

This UAV pod camera is mainly used for airborne ground imaging detection, identification, tracking, etc., to meet the needs of different industrial scenarios such as aerial surveying, monitoring, and investigation.





Drone Pod Camera Specific Parameters

HXTS01A  Industrial Drone Pod
Working band
0.4μm~0.9μm
Number of detector pixels
1920×1080;
Focal distance
4.3 mm ~ 129 mm, optical 30x continuous zoom
Continuous zoom horizontal
field of view
63.7º~1.1º
Video output
HD-SDI,1080P,30Hz.
Laser Ranging
operating wavelength
905nm
Ranging accuracy
±3m
Ranging frequency
1Hz
Laser ranging distance
3~1000m
Physical and electrical performance parameters
measure
≤Φ120mm×171mm
weight
≤810g
Working temperature
-20℃~60℃
communication interface
1-way RS422
Video interface
1-way HD-SDI
Tracking performance indicators
Pixel deviation update rate
50hz
Tracking speed
30 pixels/frame
Minimum target contrast
8%
Minimum target imaging size
4×3 pixels











Why Choose Us?



*We support Customizing Drone UAV Gimbal Camera according to your work scene needs.



*HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.



*The goods can be sent to all over the world by international express within 7 days at the fastest.



*We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.
