PTZ Drone Pod 2.8KG Drone Thermal Camera Gimbal 360° 2 Axis Gyro Stabilization ​640X512 HXTS02A

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 7
Brand: Customized
Product Description

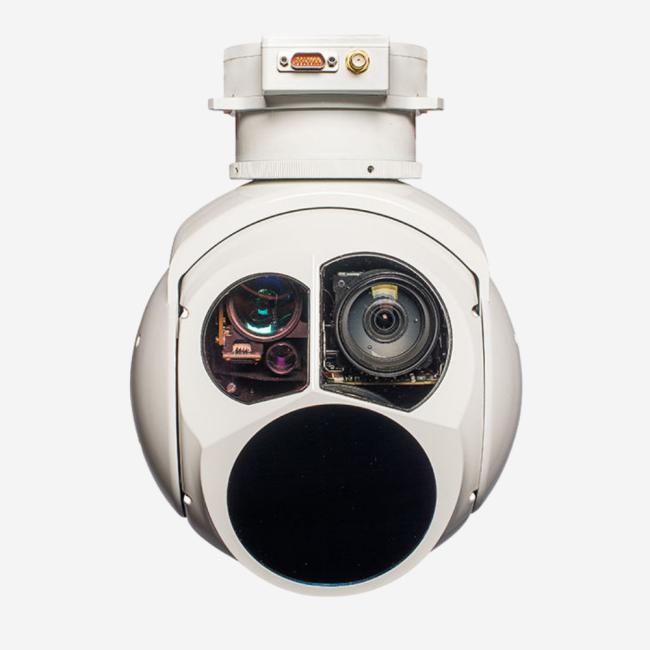

HXTS02A 2.8KG Thermal 360° 2-Axis Gyro Stabilization ​640X512 PTZ Drone Pod Zoom HD Camera Gimbal





Product Features Overview A.

  • A two-axis gyro-stabilized platform is used, and a conductive slip ring is installed to achieve 360° continuous rotation
  • Built-in 30 times high-definition visible light camera, long-wave uncooled infrared imaging component, laser rangefinder
  • Mainly used in airborne ground imaging detection, identification, tracking, ranging and positioning, etc.



Product Features Overview B.

  • ◆ Using high-definition visible light, long-wave uncooled infrared dual-light imaging
  • ◆ High-precision boresight stabilization function



Product Features Overview C.

  • ◆ Capable of detecting and identifying ground targets
  • ◆ With search, track, lock, guide and other working modes



Product Features Overview D.

  • ◆ With character overlay customization and display function
  • ◆ With target positioning function
  • ◆ With laser ranging function
  • ◆ With self-test and fault diagnosis function





UAV Pod Visible light zoom camera
Working band
0.4μm~0.9μm
Number of detector pixels
1920×1080
focal distance
4.3 mm ~ 129 mm, optical 30x continuous zoom
Continuous zoom horizontal field of view
63.7º~1.1º
video output
HD-SDI,1080P,30Hz
UAV Pod Long wave uncooled infrared imaging
Working band
8μm~14μm
Number of detector pixels
640×512
Pixel size
17um
NETD
60mk
focal distance
42mm/F1.0
viewing angle
14.6º×11.7º
video output
HD-SDI,1080P,30Hz
UAV Pod Laser ranging
operating wavelength
1535nm
Ranging accuracy
±1m
Ranging frequency
1Hz
Laser ranging distance
50~3000m
Pixel deviation update rate
50hz
Tracking speed
30 pixels/frame
Minimum target contrast
8%
Minimum target imaging size
4×3 pixels
