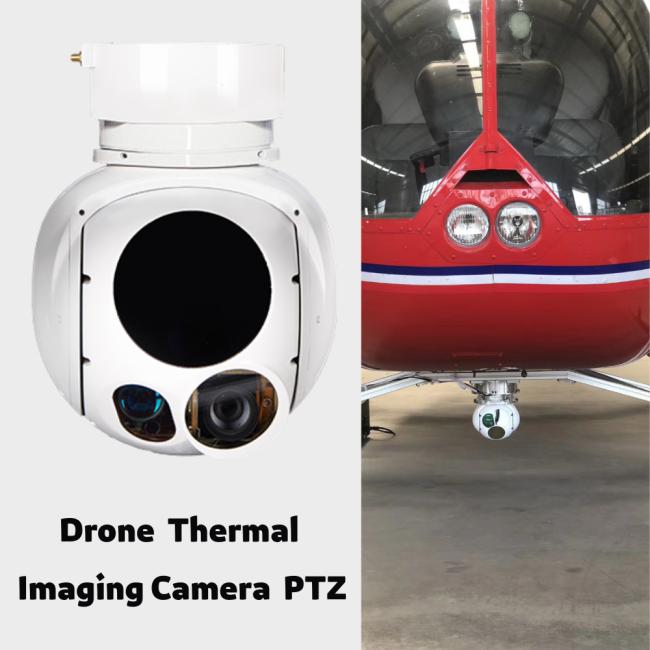

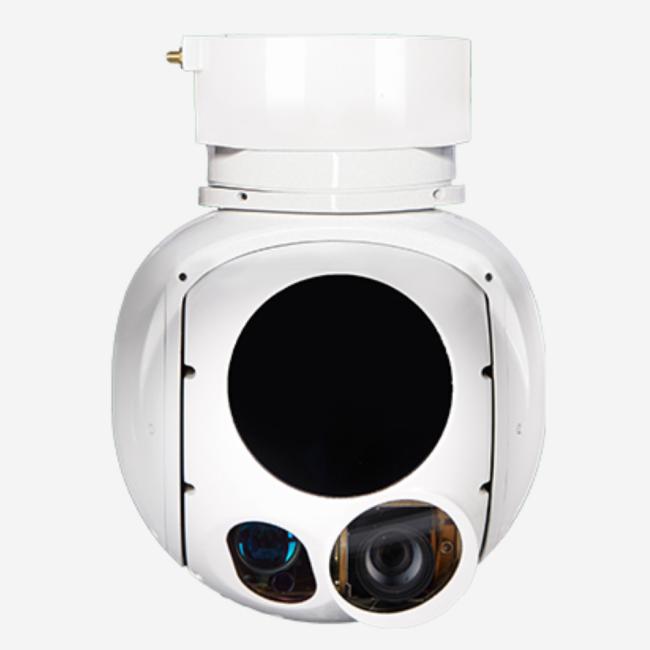

10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10
HXTS10 10.5KG Laser Ranging Thermal Automatic Capture Tracking Drone 30X Zoom HD Camera Gimbal

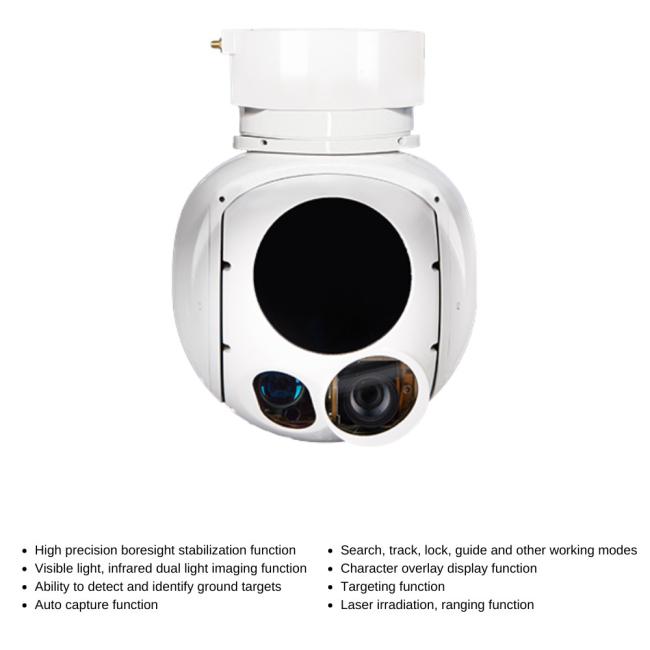

Core functions 1.
- ◆ High-precision boresight stabilization function
- ◆ Visible light and infrared dual-light imaging function
- ◆ Ability to detect and identify ground targets
Core functions 2.
- ◆ Automatic capture function
- ◆ Search, track, lock, guide and other working modes
- ◆ Character overlay display function
Core functions 3.
- ◆ Target positioning function
- ◆ Laser irradiation, ranging function
- ◆ Self-test and fault diagnosis function
|
HXTS10 Drone Pod continuous zoom visible light parameters |
|
|---|---|
| Working wavelength | 0.4μm~0.9μm |
| Focal length | Optical 30x continuous zoom |
| Resolution | (1920H)x1080(V) |
| Horizontal field of view | 63.7° ~ 2.3° |
| Drone Pod Medium Wave Cooled Infrared Imaging Parameters | |
| Working wavelength | 3~ 5μm |
| Focal length | 19-275mm/F5.5 |
| Detector | 15um |
| Resolution | 640(H)x512(V) |
| Horizontal field of view | 28°~ 2.05° |
| Cooling time | ≤6min |
| MRTD | ≤25mk |
|
HXTS10 Drone Pod Laser Photometry Parameters |
|
| Laser energy | 60mJ |
| Range | 180m-10km |
| Ranging accuracy | 2m |
| Drone Pod Servo Performance Index Parameters | |
|
Line of sight stabilization accuracy ( 1σ ) |
≤100μ rad |
|
Angle measurement accuracy ( 1 σ) |
≤2mrad |
| Rotation range | Azimuth: 360° continuous Pitch: +90° ~ - 120° |
| Maximum Rotational Angular Velocity | Azimuth: ≥60°/s; Pitch:≥60°/s |
| Maximum rotational angular acceleration | Azimuth: ≥90°/s2; Pitch: ≥90°/s2 |
|
HXTS10 Drone Pod Tracker Performance Metrics Parameters |
|
| Target Imaging Contrast | 8% |
| Movement speed | 30 pixels/frame |
| Target imaging size | 4x3 pixels |
| It has the ability of anti-occlusion and no loss | |
