Heavy Duty Vtol Drone Mapping For Cargo Transportation 2Hours Battery Life HX330PRO
HX330PRO 2Hours Battery Life Material Transportation Delivery VTOL Mapping UAV Security Industrial Inspection Drone

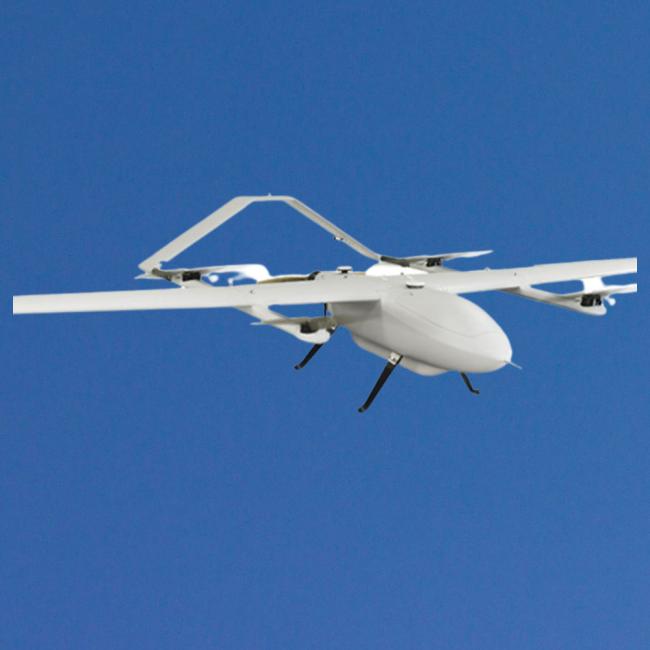

The HX330PRO vertical take-off and landing drone with a cargo box is a heavy-duty long-endurance VTOL for logistics and transportation, which can achieve a 2-hour load of 3 kg.
HX330PRO Features
- *Adopt dual GPS differential design, which greatly improves positioning accuracy, anti-interference ability and flight stability.
- *Equipped with 100m ranging single-point lidar, which can provide altitude detection during VTOL descent.
- *Motor and propeller direction locking design reduces wind resistance in fixed-wing mode.
- *The quick release design makes the aircraft easy to assemble and convenient to transport.
HX330PRO three cargo delivery modes
Pattern A: throw-return
Shipping items are delivered to their destination - after descending to the desired height the package is thrown - back.
Mode B: Automatic
Deliver the transport items to the destination, land and lock and throw the cargo for 10 seconds and take off automatically (the time can be set).
Mode C: Land and lock
Shipping item delivered to destination - landed and locked - operator manually presses switch twice to pick up - operator takes a long time
Press the switch, the drone will take off and return after 10 seconds (the time cannot be changed).
| HX330PRO Parameters Industrial Inspection Drone |
|
|---|---|
| Span Legngth | 3200mm |
| Custom function | Available |
| Length | 1750mm |
| Drone type | VTOL |
| Material | Kevlar, glass fiber, carbon fiber |
| RTF weight | 10KG (no battery, no load) |
| Maximum take-off weight | 24KG |
| Battery life | 2hours (4x6S 22000mAh,2x6S 12000mAh, 3kg) |
| Maximum payload | 3KG (without battery) |
| Maximum cruising speed | 32m/s |
| Recommended cruising speed | 22m/s |
| Stall speed | 8m/s |
| Maximum descent speed | 5m/s |
| Maximum flight altitude | 2000m |
| Operating Voltage | 48V |
| Operating temperature | -10℃~40℃ |
| Box size | 135cm*63cm*61.5cm |
