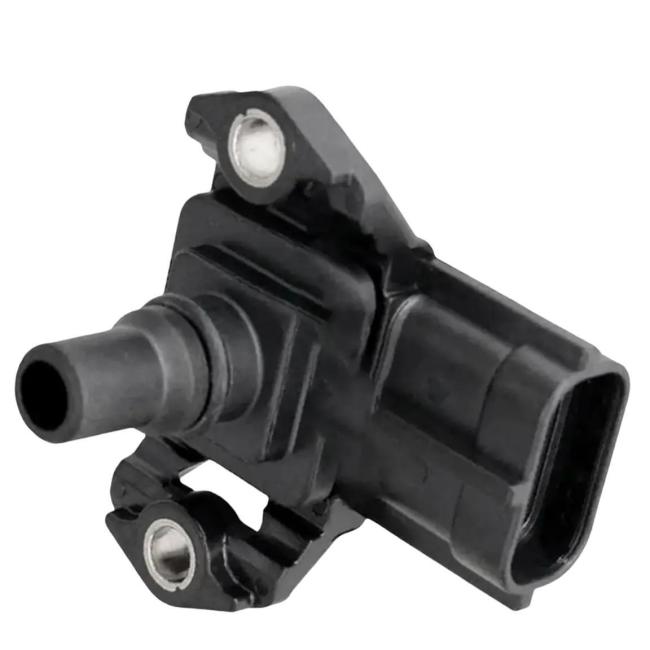

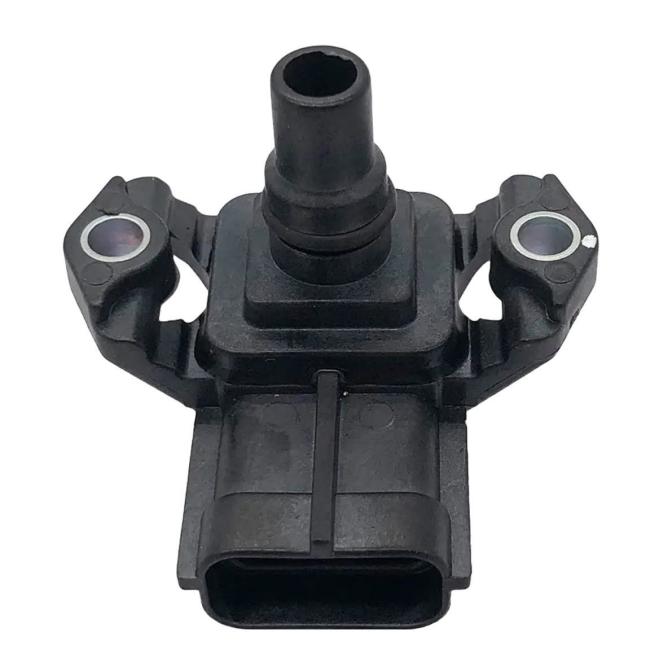

Manifold Air Pressure Sensor MAP Sensor 079800-4250 37830-PAA-S00 For Honda
1m Cable Atmospheric Pressure Sensor with -10℃~60℃ Temperature Compensation and ≤1ms Response Time
Product Description:
The MAP pressure sensor is a high-precision intake air pressure sensor, designed to measure the inlet air pressure in the air intake system. It is an ideal tool for monitoring boost pressure in turbocharged and supercharged engine systems. It has a temperature range of -40℃~125℃, and a lightweight stainless steel housing that weighs only 120 g, making it perfect for any engine system. It outputs a voltage signal, which can be used as an input for an electronic control unit to regulate and monitor boost pressure. Our MAP pressure sensor is a reliable and accurate tool for any engine system, and it comes with a comprehensive warranty for your peace of mind.
Features:
- Product Name: MAP pressure sensor
- Temperature Range: -40℃~125℃
- Response Time: ≤1ms
- Dimensions: 30mm*30mm*50mm
- Pressure Connection: G1/4
- Output Signal: Voltage
- Barometric Pressure Sensor
- Boost Pressure Sensor
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | MAP Pressure Sensor |
| Accuracy | ±0.5%FS |
| Housing Material | Stainless Steel |
| Weight | 120g |
| Response Time | ≤1ms |
| Dimensions | 30mm*30mm*50mm |
| Temperature Range | -40℃~125℃ |
| Warranty | 1 Year |
| Pressure Connection | G1/4 |
| Cable Length | 1m |
| Manifold Absolute Pressure Sensor | Yes |
| Low Pressure Sensor | Yes |
| Absolute Pressure Sensor | Yes |
Applications:
The Oetex Atmospheric Pressure Sensor is an ideal solution for applications in which an accurate, reliable and cost-effective Manifold Absolute Pressure Sensor (MAP) is required. Featuring an accuracy of ±0.5%FS, a response time of ≤1ms and a compensation temperature range of -10℃ to 60℃, the Oetex Atmospheric Pressure Sensor is designed to measure the atmospheric pressure of inlet air with an operating voltage of 5V and dimensions of 30mm*30mm*50mm.
The Oetex Atmospheric Pressure Sensor is typically used in a variety of applications such as engine management systems, climate control systems, and automotive diagnostic systems. It can be used as an Inlet Air Pressure Sensor to detect the atmospheric pressure of air entering an engine or climate control system. This MAP sensor is also suitable for monitoring the pressure changes and fluctuations in automobiles.
The Oetex Atmospheric Pressure Sensor is highly reliable and is perfect for applications that require long-term stability. It is also known for its high-precision measurement, making it an ideal choice for applications that require accurate readings. With its ultra-compact size, the Oetex Atmospheric Pressure Sensor can be easily and conveniently installed in the most confined spaces.
Customization:
Introducing the Oetex MAP Pressure Sensor, a barometric pressure sensor, intake air pressure sensor, and atmospheric pressure sensor with the following specifications:
- Pressure Connection: G1/4
- Measuring Range: 0-1.2MPa
- Output Signal: Voltage
- Housing Material: Stainless Steel
- Warranty: 1 Year
Whether you need a barometric pressure sensor, intake air pressure sensor, or atmospheric pressure sensor, the Oetex MAP Pressure Sensor has you covered. With its high quality stainless steel housing and 1 year warranty, you can be sure that your MAP Pressure Sensor will provide reliable and accurate readings for years to come.
Support and Services:
MAP pressure sensor technical support and service includes:
- 24/7 customer service
- Regular maintenance and repair
- Software and hardware updating
- Troubleshooting and problem solving
- Technical advice and assistance
Packing and Shipping:
Packaging and Shipping for MAP pressure sensor:
The MAP pressure sensor is carefully packaged in a box to ensure it arrives safely. The box is then sealed and shipped to the customer via a reliable delivery service.
FAQ:
Q1:What is the brand name of MAP pressure sensor?
A1:The brand name of MAP pressure sensor is Oetex.
Q2:What is the accuracy of MAP pressure sensor?
A2:The accuracy of MAP pressure sensor is up to 0.2%.
Q3:What is the operating temperature of MAP pressure sensor?
A3:The operating temperature of MAP pressure sensor is -40℃ to +125℃ (-40℉ to +257℉).
Q4:What is the maximum pressure of MAP pressure sensor?
A4:The maximum pressure of MAP pressure sensor is up to 25MPa (3625psi).
Q5:What is the wetted material of MAP pressure sensor?
A5:The wetted material of MAP pressure sensor is stainless steel.
