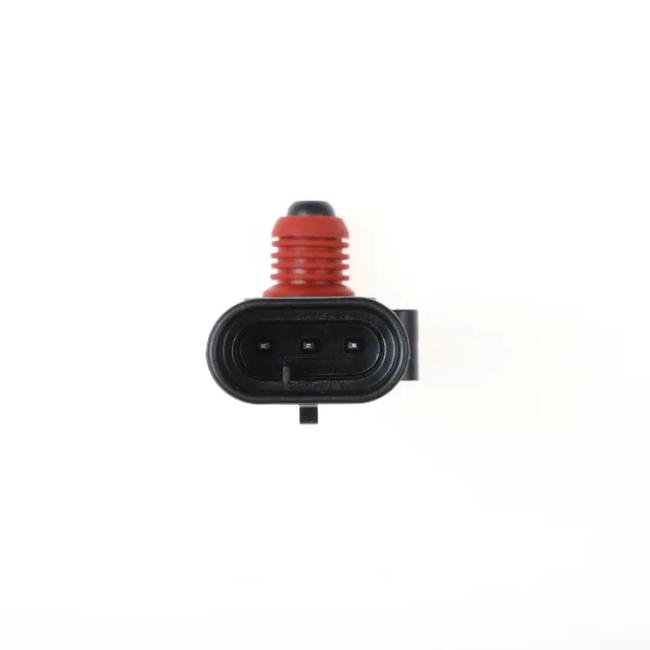

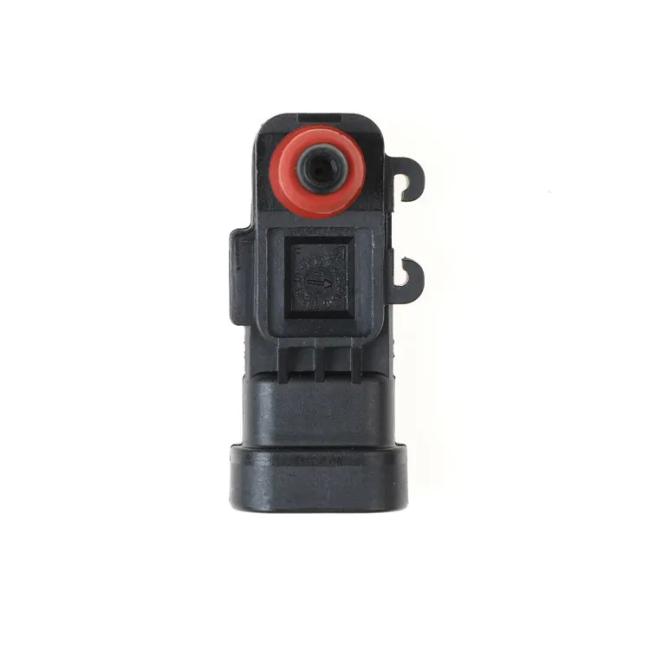

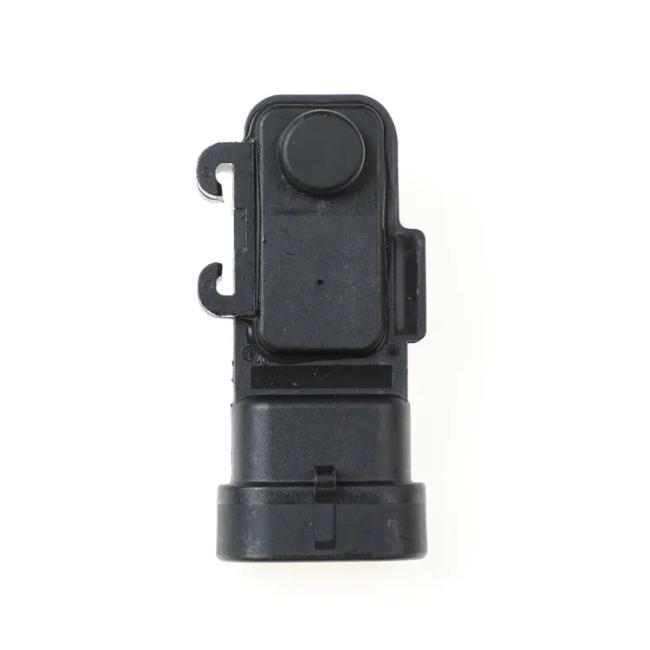

Engine MAP Pressure Sensor 9490930515 392002F000 For KIA Sorento 2.2T

Product Description:

A manifold absolute pressure sensor is used to measure the intake manifold pressure. It's usually located near or on the throttle body, and provides intake manifold pressure readings to the Engine Control Unit (ECU). With help of this data, the ECU will calculate air density, air-fuel ratio, engine load, pulse width for fuel injection and adjust ignition timing.

A MAP sensor can also be used to identify any performance issues related to throttle, spot vacuum leakage in the inlet manifold, convert MAP signal into air mass data with help from engine speed and Intake Air Temperature (IAT) sensor data, detect functioning of Exhaust Gas Recirculation (EGR) valve as back-up when Mass Airflow (MAF) sensor is not available.

Common causes of MAP sensor failure include: contaminated, clogged, electronics damaged due to intense engine heat and vibration damage in the engine.

Symptoms of a malfunctioning MAP sensor are as follows: engine won't start or starts with difficulty, detonation or misfire, excessive fuel consumption, lack of engine power and Check Engine Light on.

Features:

• Product Name: MAP pressure sensor
• Output Signal: Voltage
• Cable Length: 1m
• Operating Voltage: 5V
• Response Time: ≤1ms
• Accuracy: ±0.5%FS
• Barometric Pressure Sensor
• Differential Pressure Sensor
• Boost Pressure Sensor

Technical Parameters:

Applications:

The Oetex Atmospheric Pressure Sensor, Manifold Absolute Pressure Sensor, Intake Air Pressure Sensor is designed to measure the difference between the atmospheric pressure and the intake manifold pressure in vehicles. It is an ideal solution for different applications. This pressure sensor features a 1m cable length, -40℃~125℃ temperature range, 30mm*30mm*50mm dimensions, -10℃~60℃ compensation temperature range, and voltage output signal. It is suitable for applications such as engine control, fuel injection, and transmission control. It is also suitable for monitoring the intake air pressure, exhaust pressure, intake air temperature, and other parameters. Moreover, it is accurate, reliable, and easy to install.

Customization:

• Brand Name: Oetex
• Pressure Connection: G1/4
• Product Name: MAP Pressure Sensor
• Temperature Range: -40℃~125℃
• Response Time: ≤1ms
• Compensation Temperature Range: -10℃~60℃
• Specialized for Vacuum Pressure Sensor, Inlet Air Pressure Sensor, Boost Pressure Sensor.

Support and Services:

• Provide online technical support and troubleshooting services
• Provide professional installation and maintenance services
• Assist with product selection and specification
• Provide onsite repair and calibration services
• Provide product training and safety seminars
• Offer extended warranty options

Packing and Shipping:

The MAP pressure sensor is packaged in a sturdy cardboard box with foam inserts. The box is designed to protect the sensor from bumps, drops, and other damage during shipping. The sensor is wrapped in anti-static packaging to prevent any electrical damage.

The MAP pressure sensor is shipped via a reliable courier service. Tracking information is provided for every shipment, and delivery is expected within two to three business days.

FAQ:

Q1: What is the brand name of the MAP Pressure Sensor?
A1: The brand name of the MAP Pressure Sensor is Oetex.

Q2: What does MAP Pressure Sensor do?
A2: The MAP Pressure Sensor is designed to measure and monitor pressure in a variety of applications.

Q3: What types of pressure can the MAP Pressure Sensor measure?
A3: The MAP Pressure Sensor can measure absolute, gauge, and differential pressure.

Q4: What is the accuracy of the MAP Pressure Sensor?
A4: The MAP Pressure Sensor has an accuracy of ±0.5% full scale.

Q5: What is the operating temperature range for the MAP Pressure Sensor?
A5: The MAP Pressure Sensor has an operating temperature range of -20°C to +80°C (-4°F to +176°F).
