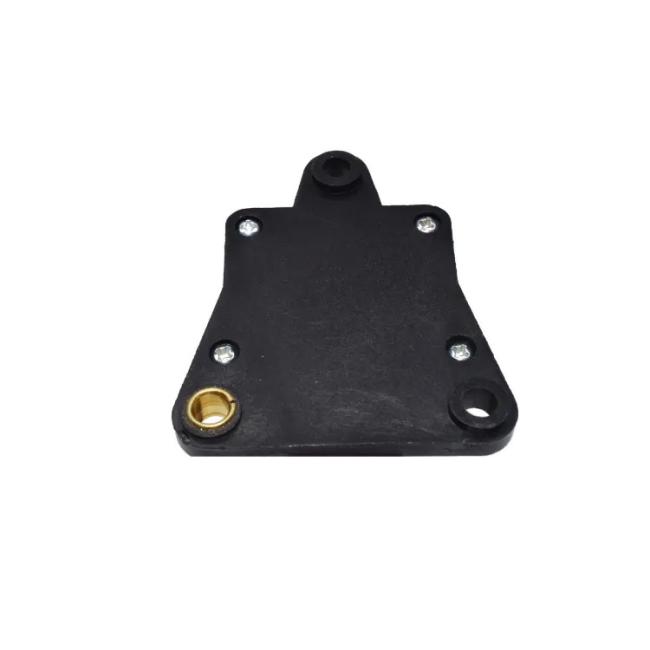

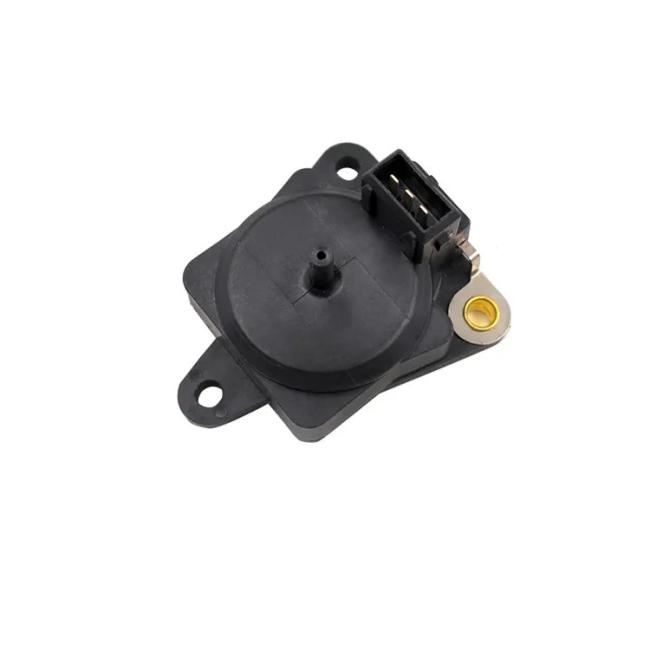

3 Bar MAP Intake Manifold Pressure Sensor 7654436 215810001101 For FORD SIERRA

Product Description:

A manifold absolute pressure (MAP) sensor measures the intake manifold pressure and is typically found on the inlet manifold, next or on the throttle body. This sensor provides intake pressure information to the Engine Control Unit (ECU), allowing it to calculate air density and determine the air-fuel mixture for the combustion process. The data it provides is also used to measure engine load, fuel injection pulse, and adjust the ignition timing.

MAP sensors can be used to look for throttle performance issues, and to check for a vacuum leak in the intake manifold. It signals can be converted to air mass data by combining engine speed and Intake Air Temperature (IAT) sensor data. In addition, MAP Sensors are often used in OBD II cars to determine if a vehicle’s Exhaust Gas Recirculation (EGR) valve is working properly as a back-up to the Mass Airflow Sensor or MAF sensor (which measures the air density and volume).

Common causes of Pressure Sensor failure include: contamination, clogging, electronics damage from high engine heat, and vibration damage from prolonged exposure in the engine compartment. Signs of a failing Pressure Sensor may include: difficulty starting the engine, detonated or misfire, excessive fuel consumption, lack of engine power, and/or a check engine light being illuminated.

Features:

• Product Name: MAP pressure sensor
• Measuring Range: 0-1.2MPa
• Warranty: 1 Year
• Housing Material: Stainless Steel
• Pressure Connection: G1/4
• Compensation Temperature Range: -10℃~60℃
• Vacuum Pressure Sensor
• Intake Air Pressure Sensor
• Differential Pressure Sensor

Technical Parameters:

Applications:

Oetex MAP Pressure Sensor is a practical and versatile atmospheric pressure sensor, which is designed to measure the level of barometric pressure accurately. This device has a range of 0-1.2MPa and is equipped with a G1/4 pressure connection. It is made of stainless steel and has a 1m cable length. This MAP pressure sensor is suitable for manifold absolute pressure measurements and outputs a voltage signal.

Customization:

Oetex MAP Pressure Sensor provides the best-in-class accuracy with ± 0.5%FS and a wide compensation temperature range from -10℃ to 60℃. Our MAP Pressure Sensor is made of stainless steel housing material, perfect for inlet air pressure, atmospheric pressure and absolute pressure sensing applications. We offer a one-year warranty for our products.

Support and Services:

MAP pressure sensor technology support and service includes:

• Technical support for product installation and set up.
• Troubleshooting assistance.
• Access to product documentation.
• Software updates and upgrades.
• Warranty coverage.
• Replacement parts.
• Repair services.

Packing and Shipping:

The MAP pressure sensor will be securely packaged and shipped according to the specifications of the item. The packaging will be designed to ensure the safe delivery of the item. It will be bubble-wrapped and placed in a box that is designed to absorb impacts and shocks during transit. Additionally, all the necessary documents, such as the packing list and product manual, will be included in the package.

The item will be shipped via a reputable courier service, such as UPS or FedEx. The item can be tracked and monitored during its transit, and a signature will be required upon delivery. All necessary information, such as the tracking number, will be provided to the customer.

FAQ:
