220V PSA Generator Oxygen 380V Pressure Swing Adsorption Oil And Gas Industry Use
Nitrogen Oxygen Generator Pressure swing adsorption Oil and gas industry use
Technological advantage:
1.Advanced process flow:Referring to the international advanced technical scheme, two adsorption I bitter process design,
3.Use advantage:The optimized design of the nitrogen production device overcomes the defects of PSA nitrogen production system
and improves the reliability and service life of the device. The time from startup to qualified nitrogen is less than 15 minutes.
Main field of use:
1.Metallurgy, metalworking industry 2.Chemical industry, new material industry 3.Mining industry 4.Oil and gas industry 5.Food and pharmaceutical industries 6.Electronic industry 7.Automotive, transportation and mobility industries and so on
Technical parameter of standard Nitrogen generating equipment (Nitrogen purity is99.5%)
| Model | N2 output (Nm³/h) | Air consumption (Nm³/min) | Inlet and outlet diameter(mm) | |
| KSZD-5 | 5 | 0.26 | DN15 | DN15 |
| KSZD-10 | 10 | 0.51 | DN15 | DN15 |
| KSZD-20 | 20 | 1.03 | DN25 | DN25 |
| KSZD-30 | 30 | 1.54 | DN25 | DN25 |
| KSZD-40 | 40 | 2.05 | DN25 | DN25 |
| KSZD-60 | 60 | 3.08 | DN25 | DN25 |
| KSZD-80 | 80 | 4.11 | DN40 | DN32 |
| KSZD-100 | 100 | 5.13 | DN40 | DN32 |
| KSZD-120 | 120 | 6.16 | DN40 | DN32 |
| KSZD-160 | 160 | 8.21 | DN50 | DN40 |
| KSZD-200 | 200 | 10.27 | DN50 | DN40 |
| KSZD-230 | 230 | 11.81 | DN50 | DN40 |
| KSZD-260 | 260 | 13.35 | DN65 | DN50 |
| KSZD-300 | 300 | 15.40 | DN65 | DN50 |
| KSZD-330 | 330 | 16.94 | DN65 | DN50 |
| KSZD-360 | 360 | 18.48 | DN65 | DN50 |
| KSZD-400 | 400 | 20.53 | DN65 | DN50 |
| KSZD-430 | 430 | 22.07 | DN80 | DN65 |
| KSZD-460 | 460 | 23.61 | DN80 | DN65 |
| KSZD-500 | 500 | 25.67 | DN80 | DN65 |
| KSZD-530 | 530 | 27.21 | DN80 | DN65 |
| KSZD-560 | 560 | 28.75 | DN80 | DN65 |
| KSZD-600 | 600 | 30.80 | DN80 | DN65 |
| KSZD-700 | 700 | 35.93 | DN100 | DN65 |
| KSZD-800 | 800 | 41.07 | DN100 | DN65 |
| KSZD-1000 | 1000 | 51.33 | DN100 | DN65 |
| KSZD-1200 | 1200 | 61.60 | DN125 | DN80 |
| KSZD-1500 | 1500 | 77.00 | DN125 | DN80 |
| KSZD-2000 | 2000 | 102.67 | DN150 | DN100 |
| KSZD-2500 | 2500 | 128.33 | DN150 | DN100 |

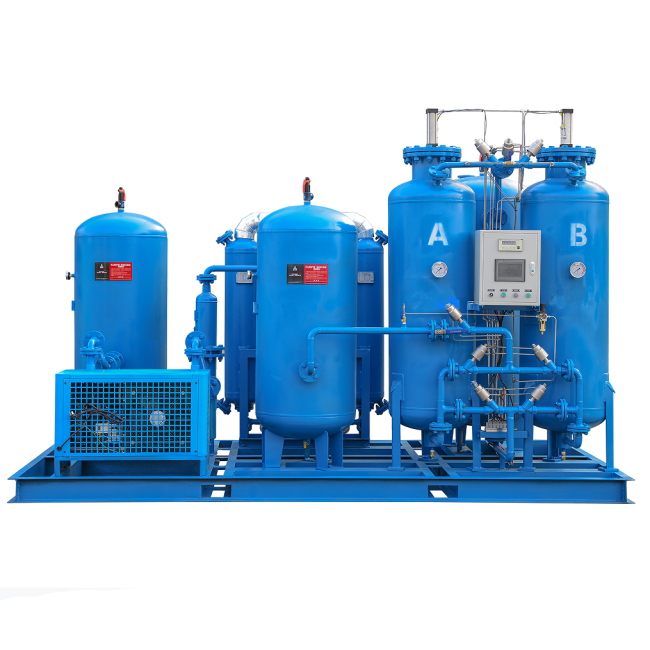

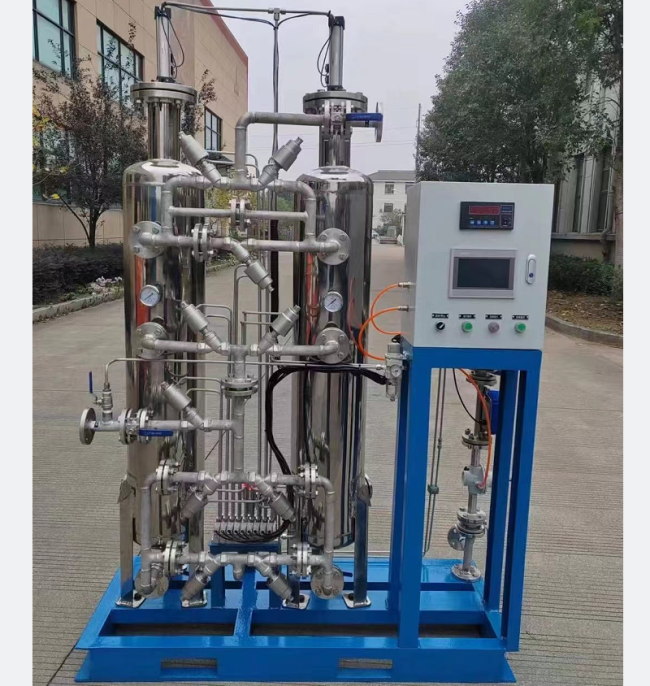

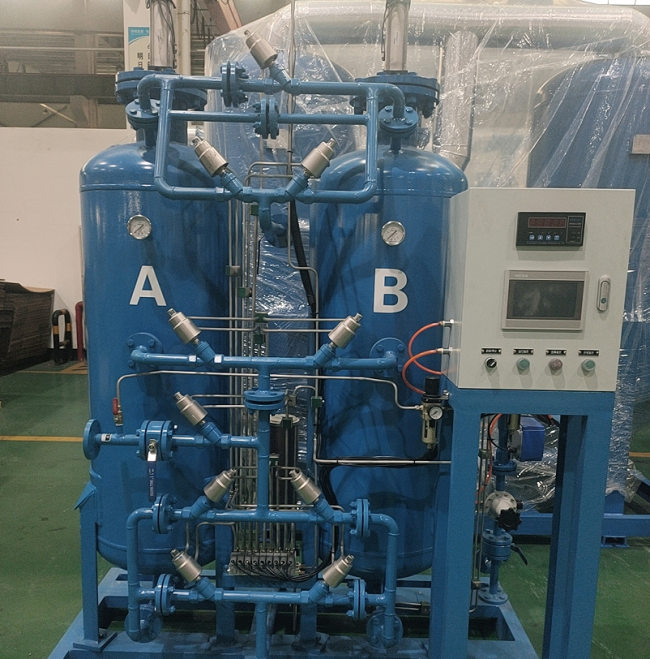

Product detailed pictures:
