Stainless Steel Oil Free Screw Air Compressor Iron Water Lubricated Less Failure Points
Water Lubricated Oil Free Screw Air Compressor Less Failure Points
Product characteristics:
There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.
Volumetric efficiency is more higher based on isothermal compression. More than15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressors, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50℃,and there is no risk of being burned.
Wider pressure ranges:2-40 Bar
The full intelligent CNC precise machining technology keeps the airend working smoothly, which can ensure lower noise.smaller vibration,and longer service life.
Technical parameters of Normal Pressure Water Lubricated Oil Free Screw Air Compressor
| Model |
Maximun work pressure |
FAD | Motor power | Noise | Weight | Pipe diameterds of cooling water inlet and outlet | Quantity of cooling water | Dimension |
Air outlet |
|||
| MPa | Psi | m³/min | cfm | kW | HP | dB(A) | kg | Water entering332℃ | L×W×H | |||
| T/h | mm | |||||||||||
| CM08BF | 0.8 | 116 | 1.15 | 41 | 7.5 | 10 | 58 | 630 | DN25 | 2 | 1550×775×1445 | 1ʺ |
| 1 | 145 | 1.02 | 36 | 500 | 1350×774×1150 | |||||||
| CM11BF | 0.8 | 116 | 1.55 | 55 | 11 | 15 | 58 | 650 | DN25 | 2.5 | 1550×775×1445 | 1ʺ |
| 1 | 145 | 1.32 | 47 | 520 | 1350×774×1150 | |||||||
| 1.25 | 181 | 1.02 | 36 | |||||||||
| CM15BF | 0.8 | 116 | 2.40 | 85 | 15 | 20 | 63 | 900 | DN25 | 3.5 | 1900×1000×1635 | 1ʺ |
| 1 | 145 | 2.12 | 75 | |||||||||
| 750 | 1680×1000×1335 | |||||||||||
| 1.25 | 181 | 1.61 | 57 | |||||||||
| CM18BF | 0.8 | 116 | 3.10 | 109 | 18.5 | 25 | 65 | 970 | DN25 | 4 | 1900×1000×1635 | 1ʺ |
| 1 | 145 | 2.62 | 93 | |||||||||
| 820 | 1680×1000×1335 | |||||||||||
| 1.25 | 181 | 2.13 | 75 | |||||||||
| CM22BF | 0.8 | 116 | 3.50 | 124 | 22 | 30 | 65 | 1000 | DN25 | 5 | 1900×1000×1635 | 1ʺ |
| 1 | 145 | 3.13 | 111 | |||||||||
| 850 | 1680×1000×1335 | |||||||||||
| 1.25 | 181 | 2.61 | 92 | |||||||||
| CM30BF | 0.8 | 116 | 5.00 | 177 | 30 | 40 | 66 | 1150 | DN40 | 7 | 1950×1050×1780 | 1 1/2ʺ |
| 1 | 145 | 4.20 | 148 | |||||||||
| 1080 | 1900×1050×1430 | |||||||||||
| 1.25 | 181 | 3.18 | 112 | |||||||||
| CM37BF | 0.8 | 116 | 6.10 | 215 | 37 | 50 | 67 | 1170 | DN40 | 9 | 1950×1050×1780 | 1 1/2ʺ |
| 1 | 145 | 5.22 | 184 | |||||||||
| 1100 | 1900×1050×1430 | |||||||||||
| 1.25 | 181 | 4.81 | 170 | |||||||||
| CM45BF | 0.8 | 116 | 7.80 | 275 | 45 | 60 | 68 | 1930 | DN40 | 10 | 3040×1280×1800 | 2ʺ |
| 1 | 145 | 6.13 | 216 | |||||||||
| 1430 | 2200×1350×1530 | |||||||||||
| 1.25 | 181 | 5.65 | 200 | |||||||||
| CM55BF | 0.8 | 116 | 9.60 | 339 | 55 | 75 | 70 | 2050 | DN40 | 12 | 3040×1280×1800 | 2ʺ |
| 1 | 145 | 8.60 | 304 | |||||||||
| 1550 | 2200×1350×1530 | |||||||||||
| 1.25 | 181 | 7.42 | 262 | |||||||||
| CM75BF | 0.8 | 116 | 12.90 | 455 | 75 | 100 | 73 | 2450 | DN40 | 18 | 3040×1280×1800 | 2ʺ |
| 1 | 145 | 11.42 | 403 | |||||||||
| 1790 | 2200×1350×1530 | |||||||||||
| 1.25 | 181 | 9.83 | 347 | |||||||||
| CM90B | 0.8 | 116 | 16.30 | 576 | 90 | 125 | 73 | 2160 | DN40 | 20 | 2500×1400×1580 | 2 1/2ʺ |
| 1 | 145 | 14.52 | 513 | |||||||||
| 1.25 | 181 | 12.30 | 434 | |||||||||
| CM110B | 0.8 | 116 | 19.40 | 685 | 110 | 150 | 78 | 2270 | DN40 | 24 | 2500×1400×1580 | 2 1/2ʺ |
| 1 | 145 | 16.90 | 597 | |||||||||
| 1.25 | 181 | 15.10 | 533 | |||||||||
| CM132B | 0.8 | 116 | 22.21 | 784 | 132 | 180 | 78 | 2350 | DN50 | 30 | 2500×1400×1580 | 2 1/2ʺ |
| 1 | 145 | 20.38 | 720 | |||||||||
| 1.25 | 181 | 18.29 | 646 | |||||||||
| CM160B | 0.8 | 116 | 28.85 | 1019 | 160 | 220 | 78 | 3720 | DN80 | 35 | 3100×1700×2090 | DN100 |
| 1 | 145 | 24.52 | 866 | |||||||||
| 1.25 | 181 | 22.17 | 783 | |||||||||
| CM200B | 0.8 | 116 | 36.63 | 1293 | 200 | 270 | 78 | 3750 | DN80 | 43 | 3100×1700×2090 | DN100 |
| 1 | 145 | 32.70 | 1155 | |||||||||
| 1.25 | 181 | 27.72 | 979 | |||||||||
| CM250B | 0.8 | 116 | 42.88 | 1514 | 250 | 340 | 78 | 3900 | DN80 | 53 | 3100×1700×2090 | DN100 |
| 1 | 145 | 39.00 | 1377 | |||||||||
| 1.25 | 181 | 34.64 | 1223 | |||||||||
| CM320B | 0.8 | 116 | 59.10 | 2087 | 320 | 430 | 80 | 4850 | DN100 | 60 | 3600×2800×2000 | DN125 |
| 1 | 145 | 53.50 | 1889 | |||||||||
| 1.25 | 181 | 48.25 | 1704 | |||||||||

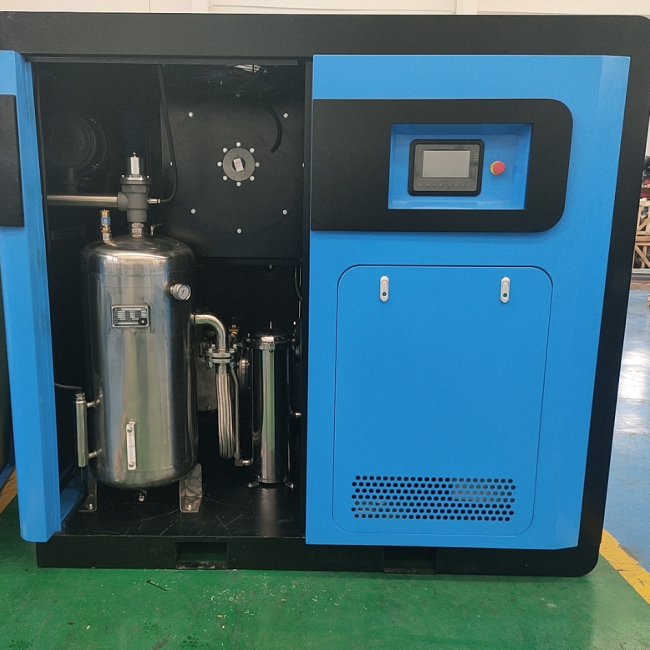

Pictures of our products:

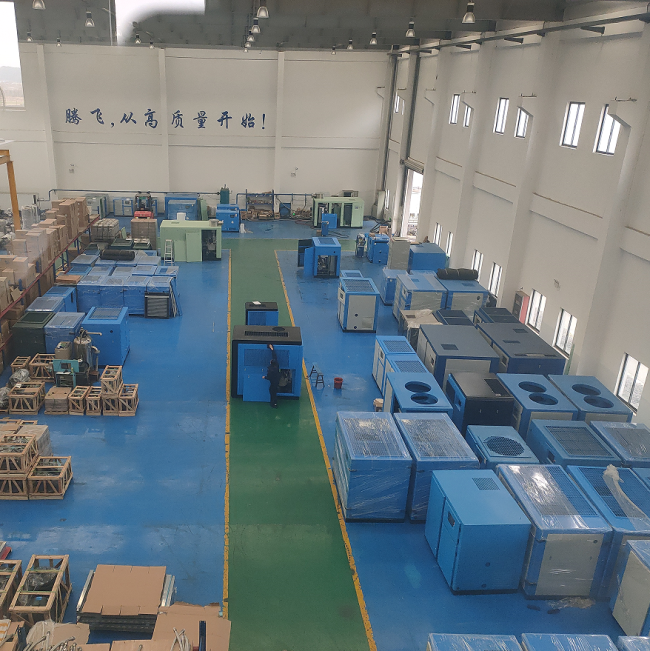

Our factory:
