Oil Less High Pressure Screw Air Compressor 40 Bar Micro Oil Pharmaceuticals 2.0MPa
High Pressure Screw Air Compressor 40bar Micro Oil Pharmaceuticals Industry Use
High pressure micro oil screw air compressor for PET Bottle Blowing Industry, water and beverage, food and medical.
Not Piston, not Booster, but Screw type.
We is a leading manufacturer of industrial air compressor china manufacturers, oir free air compressor china suppliers and screw air compressor china spare parts.Based in China, our product lower noise air compressors,Oil-free screw air compressor range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, etc. industries.
| Model | Work pressure | FAD | Air suppiy temperature | Power | Nosie |
Oil content (suppiy air) |
Weight | Cooling fan power |
Comprssed air Outlet diameter |
Dimension | |||
| L×W×H | |||||||||||||
| MPa | Pis | m³/min | cfm | kW | HP | dB(A) | PPM | kg | kW | inch | mm | ||
| CMN18G | 2.0～3.0 | 290.0～435.0 | 1.73 | 61 | ≤ambiet temperature+15℃ | 18.5 | 25 | 65 | ≤2 | 868 | 0.7 | 3/4ʺ | 1650×1150×1310 |
| CMN22G | 2.10 | 74 | 22 | 30 | 65 | 900 | |||||||
| CMN37G | 3.30 | 117 | 37 | 50 | 67 | 1340 | 1.6 | 1900×1420×1480 | |||||
| CMN55G | 6.20 | 219 | 55 | 75 | 70 | 2130 | 2.2 | DN32 | 2280×1500×1990 | ||||
| CMN132G | 13.50 | 477 | 132 | 180 | 73 | 3200 | 5.3 | DN40 | 3000×1750×1900 | ||||
| CMN130GPV | 5.4~13.5 | 191~477 | 55 | 75 | 73 | 2850 | 5.3 | DN40 | 2340×2200×1900 | ||||
| 75 | 100 | ||||||||||||
| CMN185G | 19.60 | 692 | 185 | 250 | 78 | 4320 | 5.7 | DN65 | 3200×1850×2190 | ||||
| CMN220GW | 24.60 | 869 | 220 | 300 | 78 | 4450 | 2.5 | DN65 | 3500×1900×2250 | ||||
| Model | Work pressure | FAD | Air suppiy temperature | Power | Nosie |
Oil content (suppiy air) |
Weight | Cooling fan power |
Comprssed air Outlet diameter |
Dimension | |||
| L×W×H | |||||||||||||
| MPa | Pis | m³/min | cfm | kW | HP | dB(A) | PPM | kg | W | inch | mm | ||
| CMN22G | 3.0～4.0 | 435.0～580.0 | 1.60 | 56 | ≤ambiet temperature+15℃ | 22 | 30 | 65 | ≤2 | 900 | 0.7 | 3/4ʺ | 1650×1150×1310 |
| CMN37G | 3.00 | 106 | 37 | 50 | 67 | 1340 | 1.6 | 1900×1420×1480 | |||||
| CMN55G | 5.70 | 201 | 55 | 75 | 70 | 2130 | 2.2 | DN32 | 2280×1500×1990 | ||||
| CMN132G | 12.50 | 441 | 132 | 180 | 73 | 3200 | 5.3 | DN40 | 3000×1750×1900 | ||||
| CMN130GPV | 4.9~12.3 | 173~434 | 55 | 75 | 73 | 2850 | 5.3 | DN40 | 2340×2200×1900 | ||||
| 75 | 100 | ||||||||||||
| CMN220GW | 19.70 | 696 | 220 | 300 | 78 | 4450 | 2.5 | DN65 | 3500×1900×2250 | ||||
| CMN250GW | 23.80 | 840 | 250 | 340 | 78 | 4530 | 2.5 | DN65 | 3500×1900×2250 | ||||
Products detail pictures:
Packing and transport

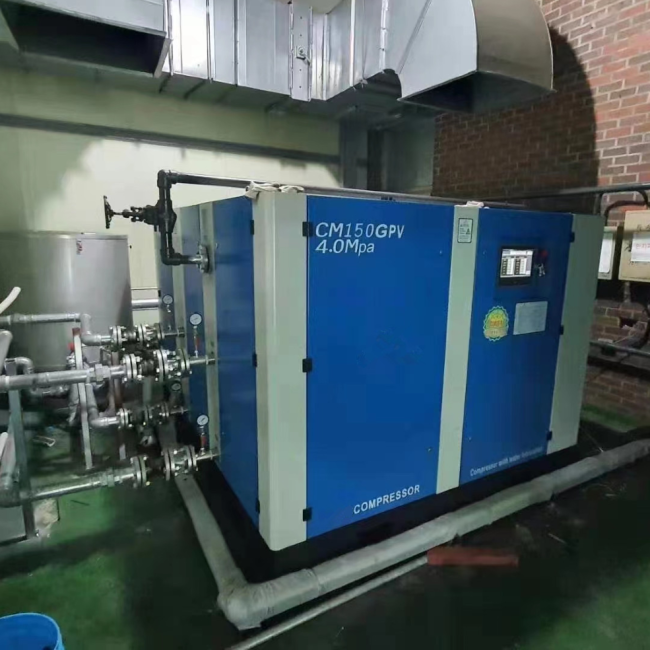

User use pictures
