Aluminium Alloy Adsorption Dryer 1000m3/H CE Standard 10bar 200kW

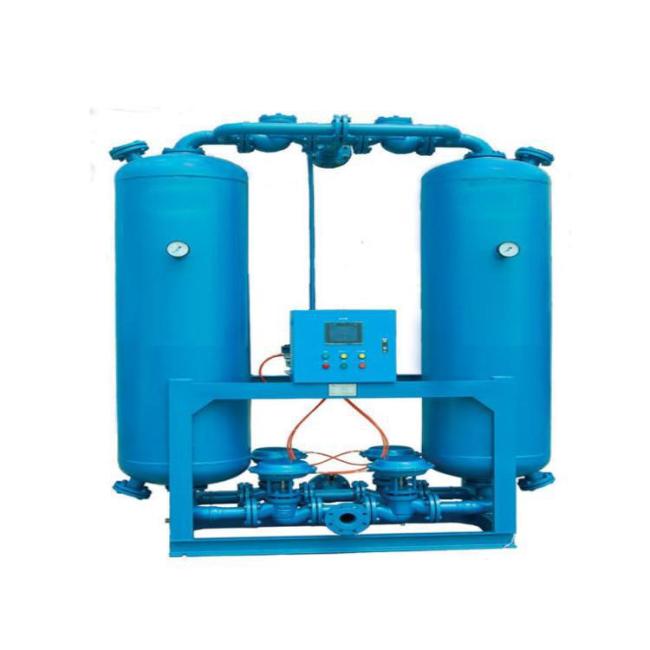

Micro heat regeneration adsorption dryer - suction dryer

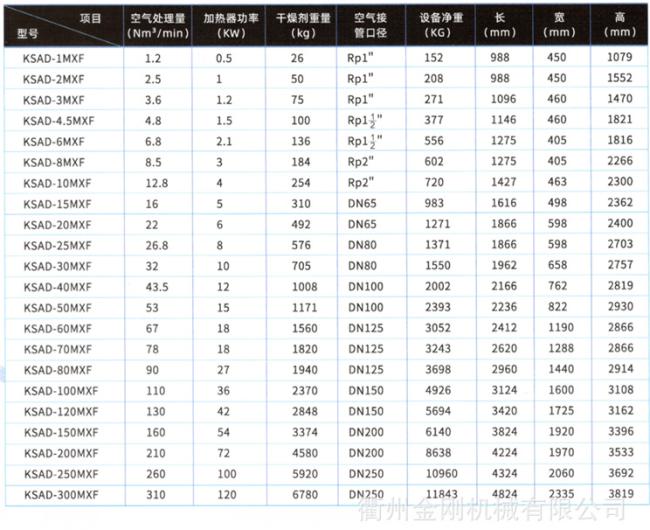

Operating conditions and technical indicators
Design pressure dew point: Standard type -20 ° C (can provide -40 ° C, -70 ° C products)
Intake temperature: 20-45 ° C
Working pressure: 0.6-1.OMpa
Desiccant: Standard type activated alumina, low dew point product activated alumina and 5A molecular sieve combination
Working mode: Two adsorption cylinders work alternately and continuously
Control method: microcomputer program control
Intake oil content: ≤ 0.1PPM
Pressure loss: ≤ 3% of inlet pressure
Regeneration gas volume: ≤ 6-8%
Regeneration method: micro thermal regeneration
Heater voltage: 1-8Nm3/min, 380V for 220V1ONm3/min and above
Cycle: 1-20Nm3/min, 120 minutes; 25~50Nm3/min, 240 minutes;

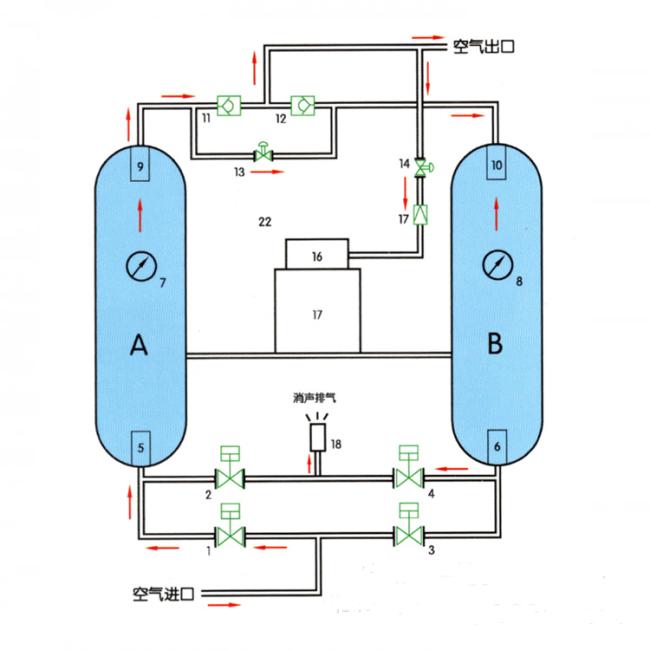

Flow chart of micro heat regeneration adsorption dryer - suction dryer
Adsorption drying cylinder: A.B
Pneumatic valve: 1.2.3.4
Diffuser: 5.6.9.10
Pressure gauge: 7.8
Check valve: 11.12.13.14
Regulating valve: 15.17
Restriction orifice plate: 16
Air source regulator: 18
Electromagnetic valve group: 19
Program control box: 20
Exhaust silencer: 21
Electric heater: 22

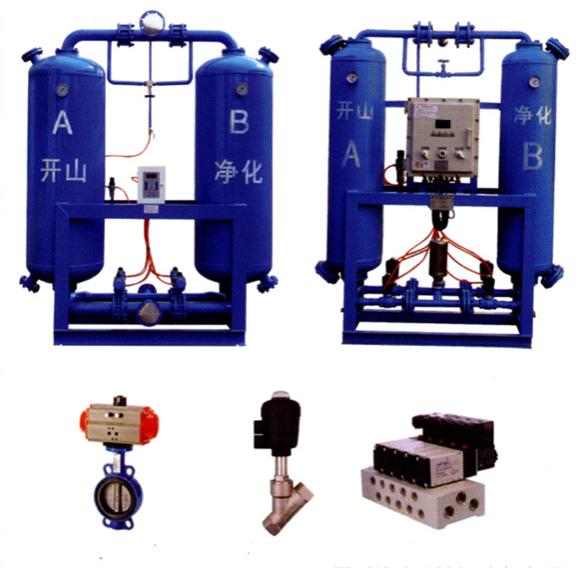

Micro heat regeneration adsorption dryer - supports ASME/CE/EAC/PED/DOSH standards
