Wave Fiber Tube Insulation Automotive Wiring Harness 9 Hole Connector 500mm White
Wave fiber tube insulation automotive wiring harness 9 hole connector 500mm white
1. Product description
Wave fiber tube insulation automotive wiring harness 9 hole connector 500mm white terminal customers customize on demand. The wire harness and terminal are firmly fixed,All terminals can withstand more than 50N tension. The terminal should not fall off in the heat shrinkable tube sheath.The heat shrinkable tube should meet UL94-V0. Conduction test 100%.Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Wave Fiber Tube Insulation Automotive Wiring Harness 9 Hole Connector 500mm White |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Rail traffic,energy storage cabinet, motor equipment |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Conduction test 100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

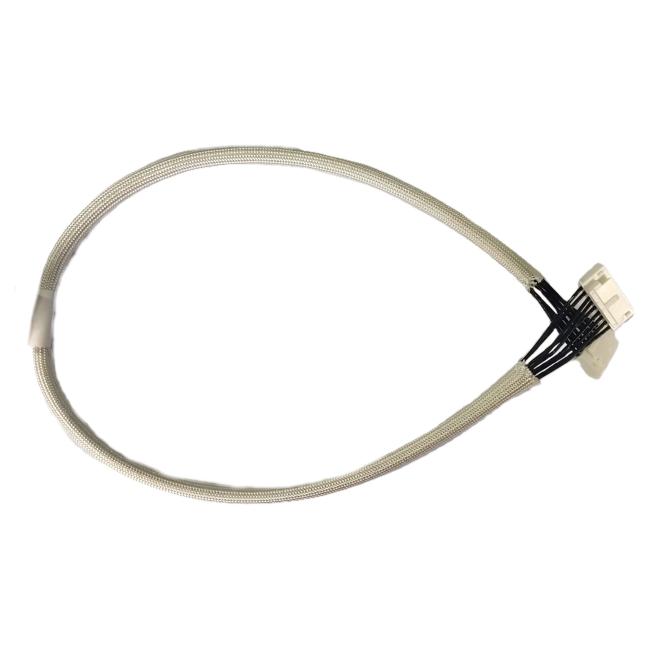

3. Picture of real products
4. Application area
I: On-board entertainment system: The 9-hole connector of wave fiber tube insulated automotive wiring harness can be used to connect audio and video devices in on-board entertainment system to achieve high-quality audio and video transmission and playback.
II: Vehicle communication system: The connector can be used to connect vehicle communication equipment, such as Bluetooth module, GPS navigation system, etc., to realize the connection and data transmission between the vehicle and external communication network.
III: On-board control system: The connector can be used to connect the control module of the vehicle, such as the engine control unit, brake system control unit, etc., to realize the control and coordination of each system of the vehicle.
5. Feature
I: Wave fiber tube insulation: The cable harness adopts bellows insulation design, which can effectively protect the wires and signals inside the harness from external environment interference and damage.
II: 9-hole connector: This connector has 9 jacks and can be used to connect multiple wires and signal wires. This porous design enables the harness to transmit multiple signals and power sources simultaneously, meeting the needs of complex automotive electrical systems.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
