1. Product description
DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness the wire harness and terminal are firmly fixed,Harness and
terminals should be securely secured. The wiring harness and wire harness partsshould be fixed firmly and can withstand 1500N tension.The heat
shrinkable tube should meet UL94-V0. Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Assembly of internal equipment of various types of vehicles |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 500N,Flexing test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

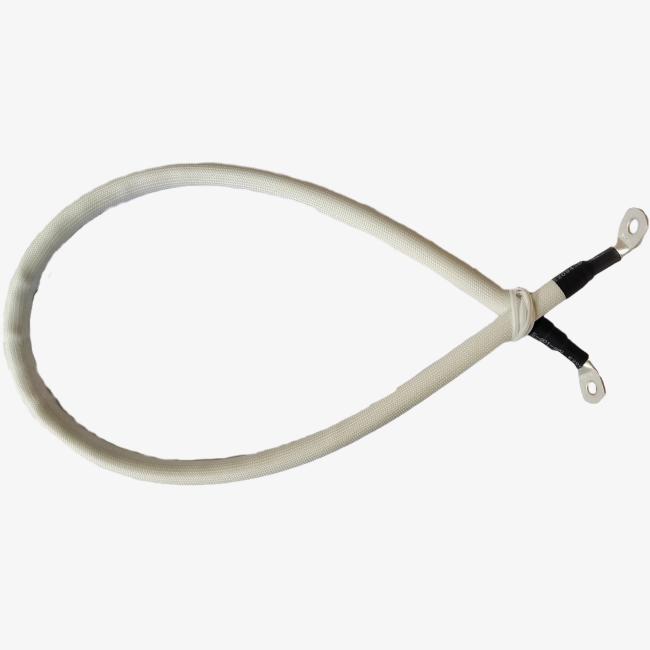

3. Picture of real products
4. Application area
I: Electric vehicles: Wiring harnesses can be used in the power transmission system of electric vehicles to connect battery packs, motors, chargers and other devices to provide high-power DC power supply.
II: Hybrid electric vehicles: The wire harness can be used in the power transmission system of hybrid electric vehicles to connect battery packs, engines, motors, generators and other equipment to achieve coordinated supply of electricity and fuel.
III: Vehicle security system: The wire harness can be used to connect cameras, sensors and other equipment in the vehicle security system to achieve image and data transmission and monitoring functions.
5. Feature
I: T45 16-6: T45 indicates that the wire harness skin material is T45 grade, with certain wear resistance and temperature resistance. 16-6 means that there are 16 wires in the harness, 6 of which are for a specific function or use.
II: High temperature resistance: The material and structure design of the harness make it have high temperature resistance, which can withstand high operating temperature in the automotive electrical system.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
