Black Teflon Insulated Wire High Frequency Transmission Wire Harness ODM

Black teflon insulated wire high frequency transmission wire harness ODM

1. Product description

  Black teflon insulated wire high frequency transmission wire harness ODM use of oxygen free copper conductor works like a high energy rate,

and the wire adopts Teflon UL1332, the wire conforms to SGS environmental protection material; Waterproof grade IP67; The tension between the

terminal and the wire can withstand the international tension test to ensure the softness of the wire body and facilitate installation.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

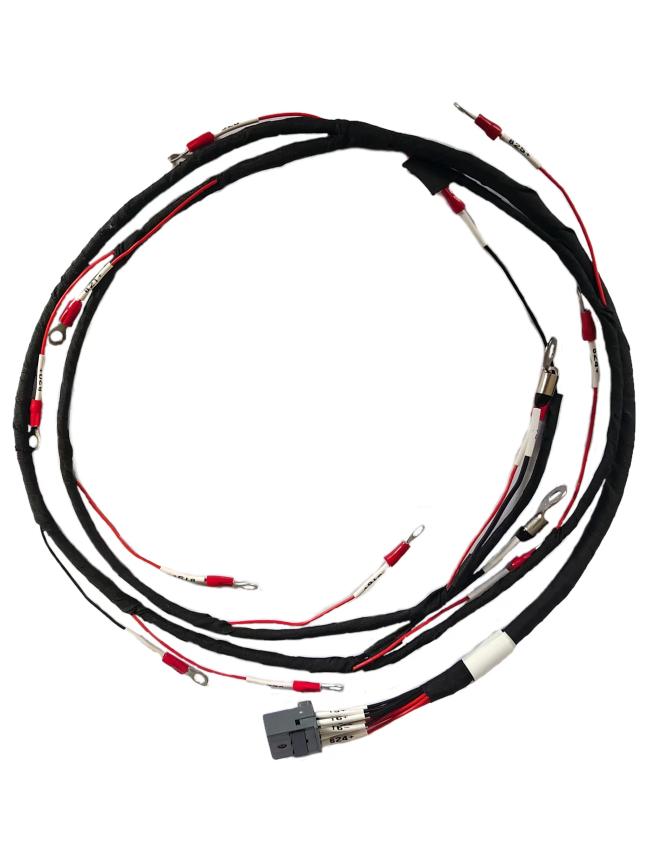

3. Picture of real products

4. Application area

I: Communication and network equipment: black PTFE insulated wire high frequency transmission line harness ODM is suitable for high frequency signal transmission in communication and network equipment. It can be used to connect routers, switches, optical fiber devices, etc., providing reliable high-frequency signal transmission and connection functions.

II: High frequency test and measurement equipment: This harness ODM is suitable for high frequency test and measurement equipment, such as spectrum analyzer, oscilloscope, signal generator, etc. It is capable of transmitting high frequency signals and provides accurate test and measurement functions.

III: High frequency electronic equipment: black PTFE insulated wire high frequency transmission line harness ODM can be used in a variety of high frequency electronic equipment, such as RF modules, antenna systems, wireless sensors, etc. It can provide reliable high-frequency signal transmission and connection to ensure the normal operation of the equipment.

5. Feature

I: High temperature resistance: The harness has excellent high temperature resistance and can work in high temperature environment without being affected. Teflon can withstand temperatures up to 200 ° C and above, ensuring reliability and stability of wiring harnesses in high-temperature applications.

II: Softness and bending resistance: The harness has softness and good bending resistance, making it easy to install and wire. It can adapt to different wiring requirements, making the installation process more convenient and flexible.

III: Black PTFE insulation: The wire harness uses black PTFE as insulation material, which has excellent electrical insulation performance and high temperature resistance performance. Teflon has low dielectric constant and low loss angular tangent, which can provide low signal attenuation and high signal transmission quality.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
