CAT5E FTP RJ45 direct connection shielding industrial wire harness

CAT5E FTP RJ45 direct connection shielding industrial wire harness

1. Product description

  CAT5E FTP RJ45 direct connection shielding industrial wire harness a shield (FTP) structure is used with a shield layer (aluminum foil or copper

mesh) to protect the signal from external electromagnetic interference. Shielding structure can reduce signal distortion and interference, providing

more reliable signal transmission.The harness complies with CAT5E standards and supports high-speed data transmission. It is capable of

transmitting data rates up to 1 Gbps and is suitable for data communication requirements in most industrial applications.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

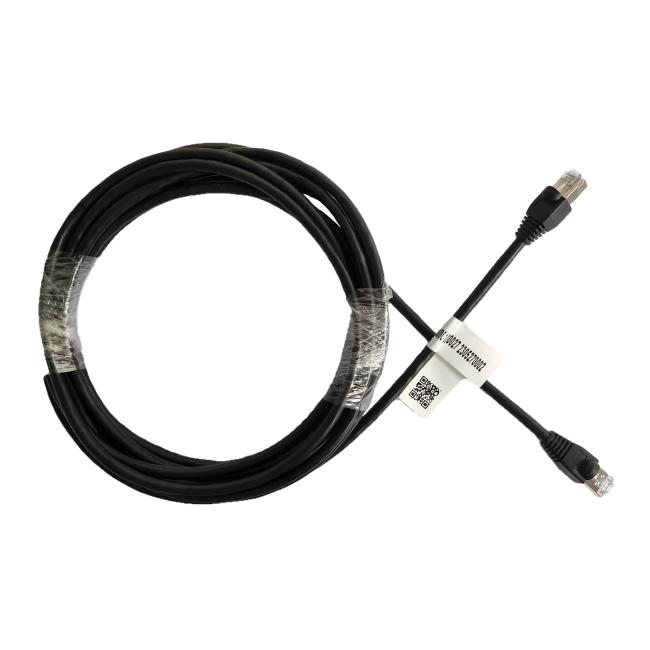

3. Picture of real products

4. Application area

I: Factory automation: Factory automation systems usually require high-speed, reliable data transfer. CAT5E FTP RJ45 direct connection shielded industrial wiring harness can be used to connect various industrial equipment, such as PLC, robots, sensors, etc., to achieve data communication and control.

II: Robot control: In robot control systems, high-speed data transmission and stable connections are key. The wire harness can be used to connect the robot controller to various robot components to achieve accurate data transmission and control instructions, ensuring precise movement and operation of the robot.

III: Industrial monitoring: An industrial monitoring system needs to connect sensors and monitoring devices to a central control station. CAT5E FTP RJ45 direct connection shielded industrial wiring harness can be used to connect monitoring devices and sensors, transmit monitoring data and video signals, and realize real-time monitoring and remote control.

5. Feature

I: Shielding design: The harness adopts FTP (shielded twisted pair) structure with shielding layer (aluminum foil) to protect the signal from external electromagnetic interference. The shielding structure can effectively reduce signal interference and provide more reliable signal transmission.

II: Anti-interference ability: the shielding design and high-quality wire make the harness have good anti-interference ability, which can effectively reduce the influence of external electromagnetic interference on signal transmission and ensure the reliability and stability of data.

III: CAT5E standard: The harness complies with CAT5E standard and supports high-speed data transmission. It is capable of transmitting data rates up to 1 Gbps and is suitable for data communication requirements in most industrial applications.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
