RCONE 2*32PIN Double Row Plastic Case 500mm Electronic Harness DB15 6 Core Test Tool

RCONE 2*32PIN double row plastic case, DB15,6 core test tool blue 500mm electronic harness

1. Product description

  RCONE 2*32PIN double row plastic case, DB15,6 core test tool blue 500mm electronic harness double row plastic shell, waterproof, ash proof, UV resistant, high temperature resistant. The wiring harness structure of the test tooling is formed by aviation aluminum die-casting, with a voltage resistance of 300V and a voltage insulation resistance of 5MΩ. The wiring harness of the test tooling is die-cast and formed by aviation aluminum alloy, which has high temperature resistance characteristics and can reach more than 150 degrees. The RCONE test kit is suitable for testing insulation resistance, voltage resistance, leakage current, on-resistance and other parameters of most aviation connectors and wireless communication modules.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

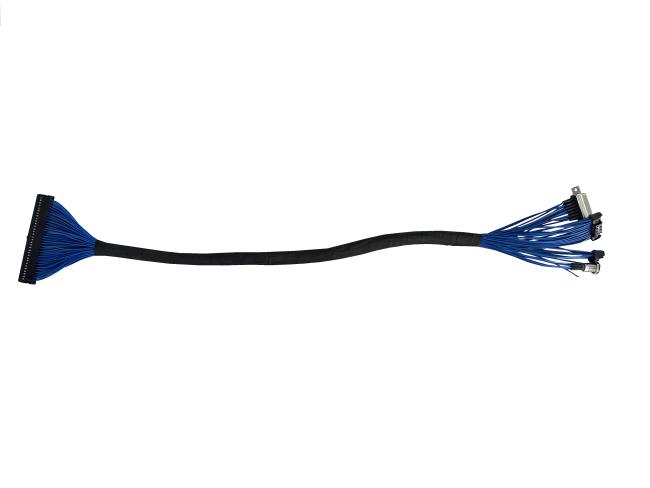

3. Picture of real products

4. Application area

I: Aerospace: RCONE electronic wiring harnesses are widely used to connect aircraft, rockets, spacecraft, aircraft and other equipment. In the field of aviation, RCONE electronic harness is mainly used for the connection of power sockets, test tooling and testing of aviation products.

II: Industrial equipment product testing: RCONE electronic harness is mainly designed to improve the performance of products, extend their service life, reduce maintenance costs. In the aviation field, electronic wire harnesses can improve the quality of signal transmission between devices, enhance the connectivity between devices, and ensure the normal operation of devices.

5. Feature

I: High signal transmission quality

II: High electrical insulation grade

III: Low loss characteristic

IV: Anti-electromagnetic interference

VI: Compact structure and beautiful appearance

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
