Water Treatment Polished Sanitary Stainless Steel 304 0.1 Micro Filter for Fruit Juice Filtration of Fine Chemical Liquid
Price:
$198/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Food and beverage:wine,beer ,vodka,juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtrationElectronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Products Description

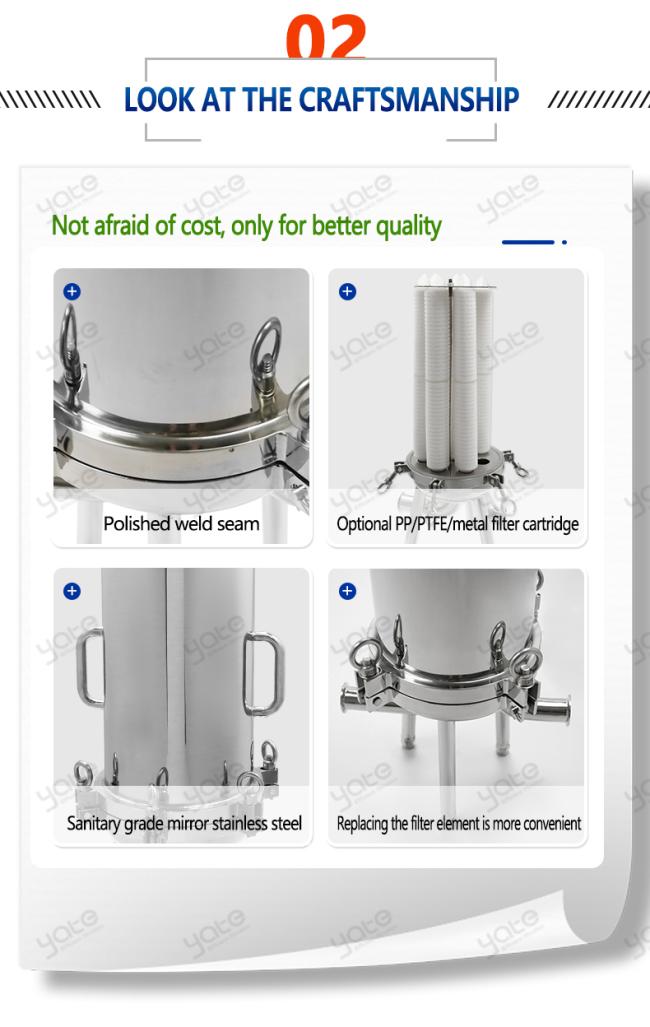

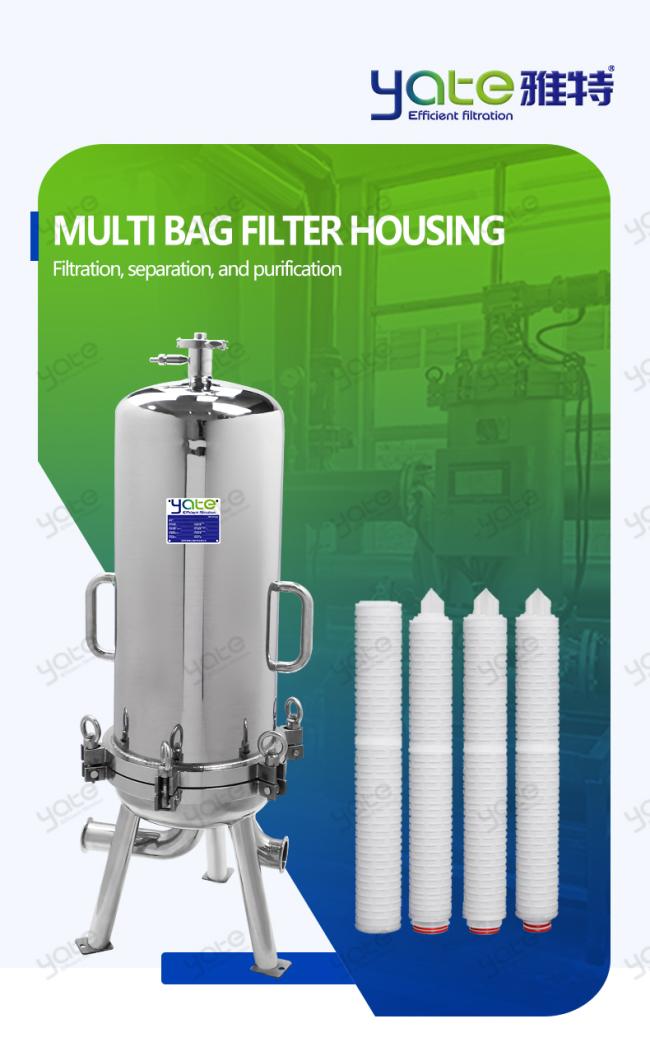

Cartridge filter housing
1. Equipment material :SS304, 5S316L, lined with PTFE. 2. In and out caliber :DN25-80 flange or Tri-Clamp. 3. Design pressure :0.6MPa, 1.0MPa. 4. Filter specifications: 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core and more. 5. Surface treatment: polishing treatment. 6. Sealing ring material: silicone, EPDM , fluorine , PTFE fluorine rubber. 7. Filter elements :PP folding filter, PTFE folding filter, PES folding filter, titanium rod filter, metal sintered filter, etc
|
Model
|
Diameter(mm)
|
Connection
|
Max.Flow
(m3/h)
|
Working Pressure(MPa)
|
|
YT-1X10C
|
102
|
Ø25 Tri-Clamp
|
0.5
|
0.6
|
|
YT-1X20C
|
102
|
Ø25 Tri-Clamp
|
1
|
0.6
|
|
YT-1X30C
|
102
|
Ø25 Tri-Clamp
|
1.5
|
0.6
|
|
YT-3X10C
|
204
|
Ø38 Tri-Clamp
|
1.5
|
0.6
|
|
YT-3X20C
|
204
|
Ø38 Tri-Clamp
|
3
|
0.6
|
|
YT-3X30C
|
204
|
Ø38 Tri-Clamp
|
4.5
|
0.6
|
|
YT-5X10C
|
219
|
Ø38 Tri-Clamp
|
2.5
|
0.6
|
|
YT-5X20C
|
219
|
Ø38 Tri-Clamp
|
5
|
0.6
|
|
YT-5X30C
|
219
|
Ø38 Tri-Clamp
|
7.5
|
0.6
|
|
YT-7X10C
|
273
|
Ø45 Tri-Clamp
|
3.5
|
0.6
|
|
YT-7X20C
|
273
|
Ø45 Tri-Clamp
|
7
|
0.6
|
|
YT-7X30C
|
273
|
Ø45 Tri-Clamp
|
10.5
|
0.6
|
