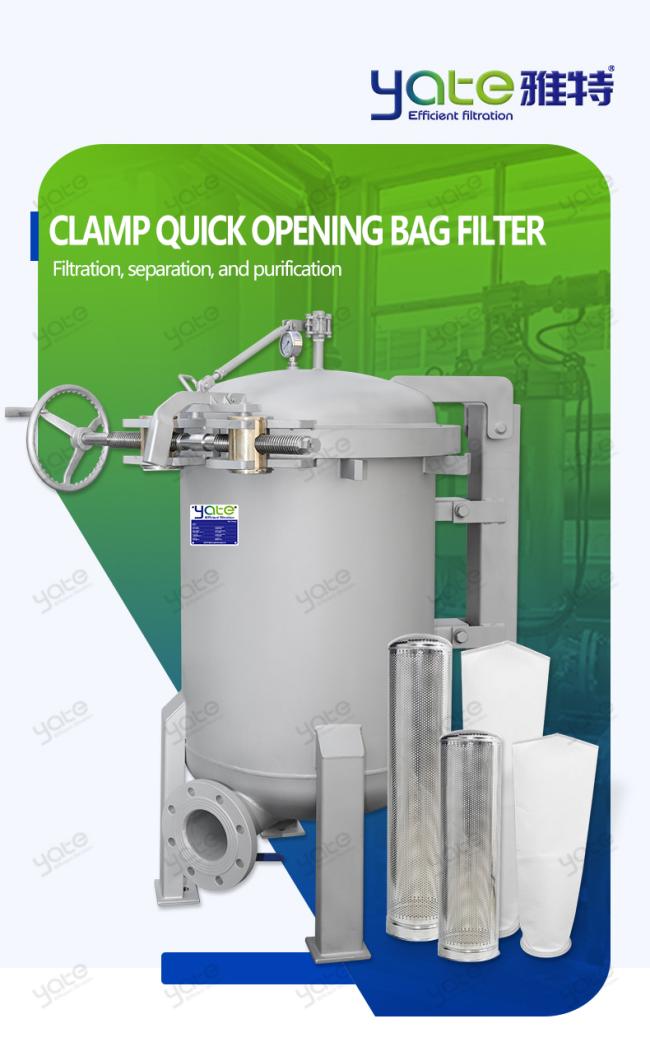

304 316 Stainless Steel Fast Open Bag Filter Housing for Mining Water Treatment Petrochemical Plant Cold Water Circulation
Price:
$1,697.20/sets 1-19 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Application Field
Food and beverage:wine，beer ，vodka，juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtrationAutomotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Products Description
Advantages of quick-opening stainless steel bag filter
1. Handwheel fast opening design, open cover only 15 seconds, suitable for frequent change of filter bag conditions.
2.The bag filter opens up and down to save space and is suitable for working conditions with limited position. 3. The design of the bag filter housing side into the bottom to ensure that the liquid can be completely discharged, can reduce the tangent of the height, and the pipeline installation is more convenient; 4. The design and compact size of the bag filter housing minimize the loss of liquid. 5. Industrial bag filter can be customized 1-24 bags according to user needs, material according to user material characteristics, can be designed for carbon steel, stainless steel (304, 316L) and so on.
Model | Filter Bag# | Filter Bag Qty | Filtration Area(m2) | Connection | Max.Flow (m3/h) | Working Pressure(MPa) |
YT-2P2S | 2# | 2 | 1 | DN50-DN100 | 70 | 0.6 |
YT-3P2S | 2# | 3 | 1.5 | DN80-DN100 | 100 | 0.6 |
YT-4P2S | 2# | 4 | 2 | DN80-DN100 | 140 | 0.6 |
YT-6P2S | 2# | 6 | 3 | DN80-DN100 | 240 | 0.6 |
YT-8P2S | 2# | 8 | 4 | DN100-DN200 | 280 | 0.6 |
YT-10P2S | 2# | 10 | 5 | DN150-DN200 | 350 | 0.6 |
YT-12P2S | 2# | 12 | 6 | DN150-DN250 | 420 | 0.6 |
YT-14P2S | 2# | 14 | 7 | DN200-DN250 | 490 | 0.6 |
YT-16P2S | 2# | 16 | 8 | DN200-DN300 | 560 | 0.6 |
YT-18P2S | 2# | 18 | 9 | DN250-DN350 | 630 | 0.6 |
YT-20P2S | 2# | 20 | 10 | DN250-DN400 | 700 | 0.6 |
Advantages
1. Choose high-quality materials 2. Superb welding technology, strong sealing 3. Efficient filtration effect 4. Provide complete filtration solutions 5. Global real case feedback 6. Factory processing equipment and inspection equipment are complete.
