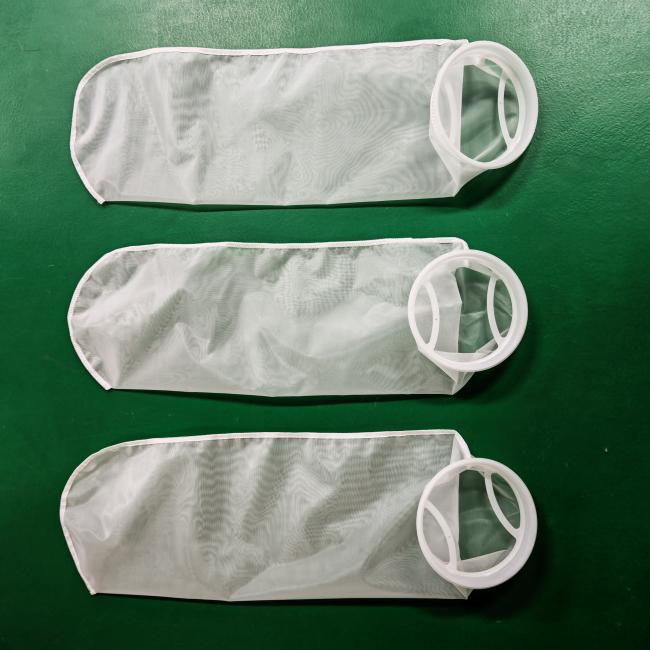

Sanitary Nylon Liquid Filtration Bag 450-500 Mesh Filtration Accuracy for Industrial Filtration Needs
Price:
$2.55-2.70/sets
MOQ:
1000 sets
Delivery Time:
Negotiable
Product Description
Specifications Data
SAFETY INTRODUCTION
Designed to meet the most demanding needs of food and beverage processing, pharmaceutical and biotechnology industries. This filter bag not only carries the heavy responsibility of filtering purity, but is also a key link in ensuring product safety and improving production efficiency. Complies with food safety standards such as FDA, EU and China GB. The material surface is smooth and not easy to absorb impurities, effectively avoiding secondary contamination of the liquid and ensuring the purity and safety of every drop of liquid.
APPLICATIONS
* Food and beverage industry
* Pharmaceutical and biotechnology industry * Chemical industry
* Wastewater and water treatment industry
* Automobile and machinery industry
* Electronics and semiconductor industry
* Other industries such as chemical fiber,papermaking, petroleum, metallurgy, textile, coating and paint
Products Details
Filter bag type | Filter material | Diameter mm | Length mm | Maximum discharge m³/h | Filter area m2 | Volume L | Precision (mesh) | Pocket ring | Techn-ology |
1# | Nylon | 180 | 430 | 20 | 0.24 | 8 | 20-500 | Plastic ring | Sewing |
2# | Nylon | 180 | 810 | 0.48 | 0.48 | 17 | 20-500 | Plastic ring | Sewing |
3# | Nylon | 105 | 230 | 0.08 | 0.08 | 1.3 | 20-500 | Plastic ring | Sewing |
4# | Nylon | 105 | 380 | 0.16 | 0.16 | 2.6 | 20-500 | Plastic ring | Sewing |
5# | Nylon | 150 | 560 | 0.24 | 0.24 | 8 | 20-500 | Plastic ring | Sewing |
Filter Material Performance Table
product Name | strong acid | weak acid | strong alkali | weak base | oils and fats | aromatic | alcohol ethers | organic solvent |
polyester (PE) | √ | √ | √ | √ | √ | |||
polypropylene (PP) | √ | √ | √ | √ | √ | √ | √ | |
nylon (NMO) | √ | √ | √ | √ | √ | |||
teflonethene (PTFE) | √ | √ | √ | √ | √ | √ | √ | √ |
Product Description
We use advanced production technology and sophisticated equipment, and every process is strictly controlled. From material selection to production and packaging, we strive for perfection in every link to ensure that every detail of the filter bag meets high quality requirements. This persistent pursuit of technology makes our filter bags perform well in both filtration efficiency and durability.
Hot melt process and edge sewing
Our liquid filter bags use hot melt technology and edge sewing technology. Hot melt technology achieves seamless connection between filter media and filter bag frame through a precisely controlled heating and pressure system. Edge sewing technology significantly improves the sealing and structural strength of the filter bag, ensuring the absolute purity and safety of the filtration process.
High-efficiency filtration, excellent performance
By selecting high-quality filter materials and combining precise filter hole design, our liquid filter bags can efficiently intercept tiny particles, suspended matter and harmful impurities in the liquid, ensuring that the filtered liquid reaches extremely high purity and clarity. At the same time, the optimized filter structure and material selection enable the filter bags to have a longer service life and lower replacement frequency while maintaining high-efficiency filtration, bringing lower maintenance costs and higher production efficiency to your production line.
Stable, reliable and adaptable
After strict quality control and performance testing, our liquid filter bags have demonstrated excellent stability and reliability. Whether in high pressure, high temperature or corrosive liquid environments, they can maintain stable filtration performance to ensure continuous and stable operation of the production line. In addition, we also provide filter bag options of various specifications and materials to meet the diverse needs of different industries and application scenarios.
Professional customization, considerate service
In order to meet the special needs of different customers, we provide professional customization services. Whether it is special size requirements, filtration accuracy adjustment or special process treatment, our professional team can provide you with a one-to-one solution. We promise to meet your every need with the fastest speed, the best quality and the most considerate service.
Environmentally friendly materials, green production
We always adhere to the concept of green development, select environmentally friendly filter materials and production processes, and are committed to reducing the impact on the environment. Our liquid filter bag materials are non-toxic and harmless, recyclable and reusable, and meet international environmental standards and industry requirements. Choosing our products means choosing a responsibility and contribution to the environment.
Laboratory Testing Equipment
Laboratory testing equipment From left to right:
1. Filter material air permeability testing equipment
2. Filter material thickness testing equipment
3. Filter material weight measuring equipment
4. Filter material sampling machine

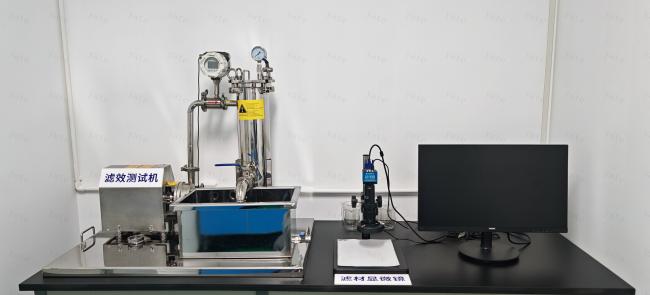

Laboratory testing equipment From left to right:
1. Filter efficiency test equipment
2. Filter material microscope
Company Profile, Showroom and Certificates
Application Scenarios
