Vertical Design Stainless Steel Filter Housing with 0.2 μm Filtration Precision and 0.6Mpa Working Pressure
Price:
$350-500
MOQ:
1
Delivery Time:
Negotiable
Brand:
yate
Product Description

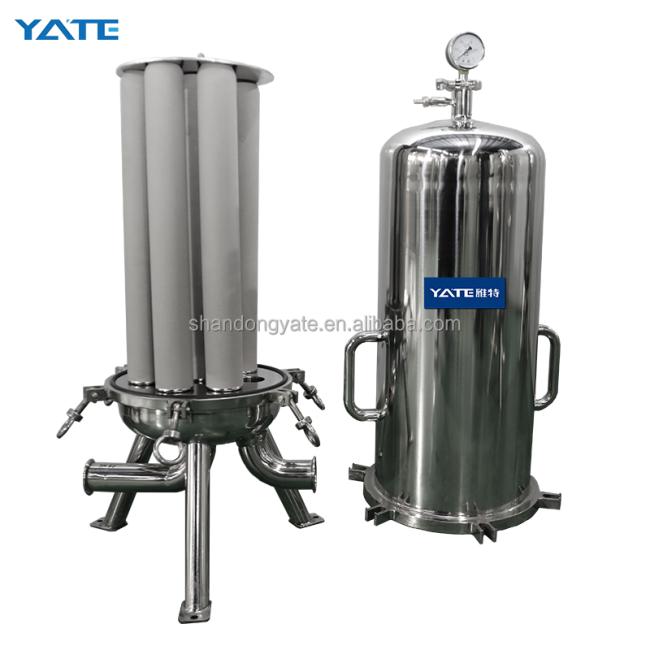

Stainless Filter Factory Directly 10"/20/30 Inch Sanitary Filter Housing
Cartridge Stainless Steel Housing For Wine Beer Filtration
Products Description
Note:
Before opening the filter, please exhaust and release the pressure.
Advantages of stainless steel cartridge filter （beer、wine filtration）:
Food grade stainless steel liquid filter housing pp filter core oil filter housing.
can be applied for most particles so it is broadly for precision filter and sterilization.
◆the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
◆the length of folding filter core is 10”,20”,30”,40”
◆the material of the filter core is PP,PTFE,nylon,SS304
◆the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,
can be applied for most particles so it is broadly for precision filter and sterilization.
◆the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
◆the length of folding filter core is 10”,20”,30”,40”
◆the material of the filter core is PP,PTFE,nylon,SS304
◆the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,
and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.Food grade stainless steel liquid filter housing pp filter core oil filter housing.
Model | Filter element | Filter element Qty | Connection | Max. Flow (m³/h) | Working pressure(MPa) |
YT-10*1 | 10” | 1 | DN20 | 0.5 | 0.5-1.6 |
YT-20*3 | 20” | 3 | DN25 | 3 | 0.5-1.6 |
YT-20*10 | 20” | 10 | DN50 | 10 | 0.5-1.6 |
YT-20*7 | 20” | 7 | DN40 | 7 | 0.5-1.6 |
YT-30*5 | 30” | 5 | DN25 | 7.5 | 0.5-1.6 |
YT-30*11 | 30” | 11 | DN40 | 16.5 | 0.5-1.6 |

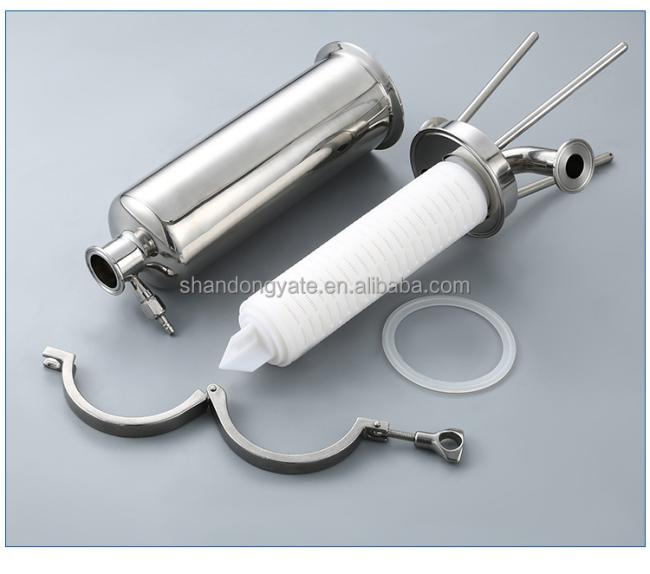

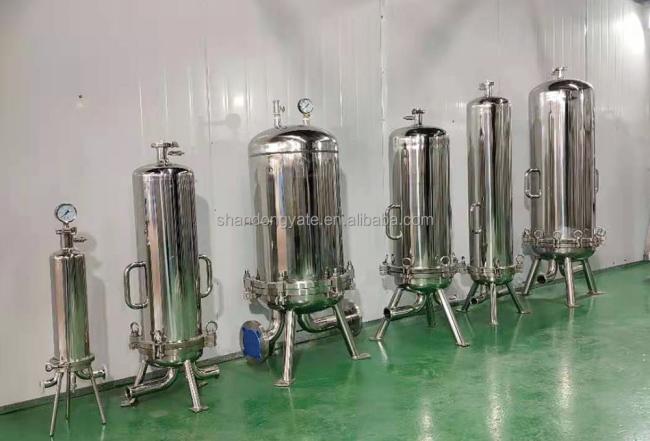

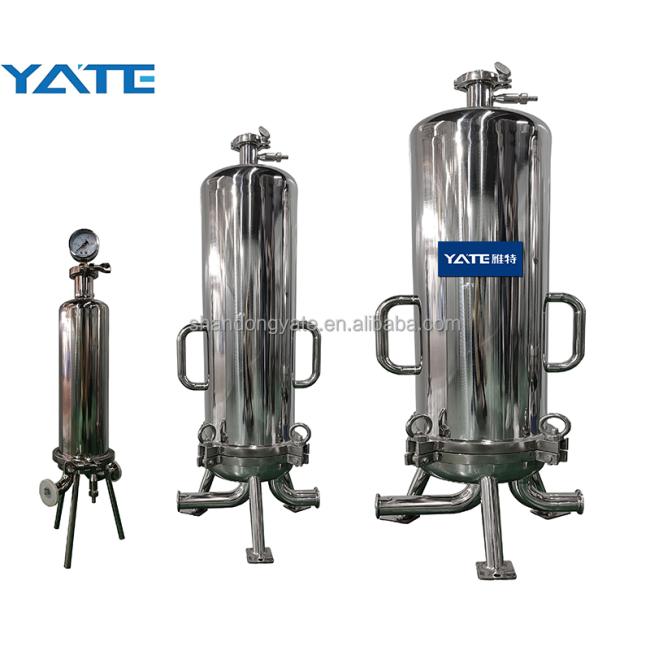

Details Images
Sign
Filter Adaptation Field
Application: petrochemical industry, fine chemical industry, pharmaceutical chemical industry, electric power, paper making, water treatment system, automobile industry, mechanical processing, coating, electronics, etc.
EXPORT TO MANY COUNTRIES -----------------------
PASSED VARIOUS CERTIFICATIONS
Professional Solid-liquid Separation and Filtration Manufacturer
Adhering to the design concept of "filter what you think", we pursue the essence of filtering. We are willing to innovate and devote ourselves to the research of various fluid filtration technologies, especially in the research of automatic filtration, and finally win the recognition of the market.
Enterprise Philosophy
Enterprise Philosophy To reduce cost and increase efficiency for customers to provide stable and reliable filtration solutions
