GB Standard Aluminium Coil A1100 H14 Customized ASTM B209 Standard Packing
Product Description:
Aluminum coil is a metal product for flying shear after casting and rolling machine is processed by calendering and drawing angles. According to the different metal elements contained in the aluminum coil, the aluminum coil can be roughly divided into 9 categories, that is, can be divided into 9 series.The series 9 belongs to the reserve series, and the technology is so developed. In order to cope with the appearance of aluminum plates containing other alloy elements, the International Federation of Aluminum Plates and Belts specially indicates that the 9000 series is the reserve series, waiting for another new variety to appear to fill the gap of the 9000 series.

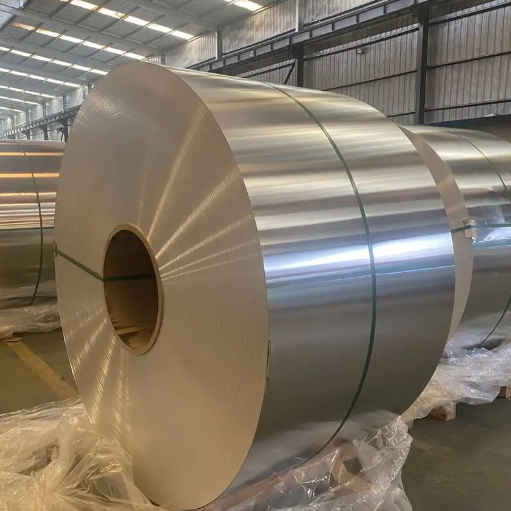

Detailed Photo:
Technical Parameters:
| Aluminium Alloy | Thickness (mm) |
Width (mm) | Temper | |
| A1050,A1060,A1070,A1100 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 | |
| A3003,A3004,A3105 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 | |
| A5052,A5005,A5083,A5754 | 0.15-10 | 20-2620 | O,H12,H14,H34,H32,H36,H111,H112 | |
| A6061,A6082,A6063 | 0.15-10 | 20-2620 | T4,T6,T651 | |
| A8011 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 | |
| Standard width | 914mm,1000mm,1220mm,1250mm,1500mm,width can be up to 2620mm | |||
| Material process | both CC AND DC | |||
| Customerize size | Size can be produced as per clients requirement | |||
| Surface | Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish ,Anodizing | |||
| Quality Standard | ASTM B209,EN573,EN485 | |||
| MOQ per size | 1 ton | |||
| Payment Terms | TT OR LC | |||
| Delivery time | Within 7-10 days after receipt the lc or deposit,depends on the specific quantity | |||
| Application | Construction ,Building,ACP,Decoration ,Roofing,Mould,Ship Building,Lighting,Aircraft,Oil tank /truck body ,Dome | |||
| Packing | Standard export worthy wooden pallets,and standard packing is about 2-2.5 tons per pallet | |||
Chemical Composition:
Physical Properties:
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
Recommend Products:
Technological Process:
Applications:
Support and Services:
- Expert advice on product selection and application
- Technical guidance and support for installation, use and maintenance of the product
- Testing and inspection services to ensure product quality
- On-site support to ensure a successful installation
- Troubleshooting and repair services in the event of product failure
- Regular maintenance and service contracts to ensure long-term performance
Packing and Shipping:
Packaging: The aluminium coils are packaged in shrink-wrapped bundles, with protective caps on each end. The bundles are then placed on wooden pallets for further protection.
Shipping: The aluminium coils are shipped by truck, rail, or sea, depending on the customer's preference. All shipments are insured and tracked to ensure safe arrival.
Certificate:
FAQ:
1.Can you supply what is the service?
We can supply the kinds of metal materials and products,and we also can supply other process services.
2.Can you supply the free sample?
We can supply the free sample,but the sample express freight should be by you.
3.What about your the fast lead time if we place order?
It is normal 7-10 days after receive your deposit,depends on the specific quantity.
4.Which payment terms can you accept?
We can accept the TT,Western Union now or 100%L/C at sight.
