ASTM B209 3003 2024 T3 - T8 Aluminum Pipe 0.8 - 40mm Wall Thickness For Building
Price:
Negotiable
MOQ:
1ton
Delivery Time:
3-15 days
Brand:
CHINALCO
Product Description

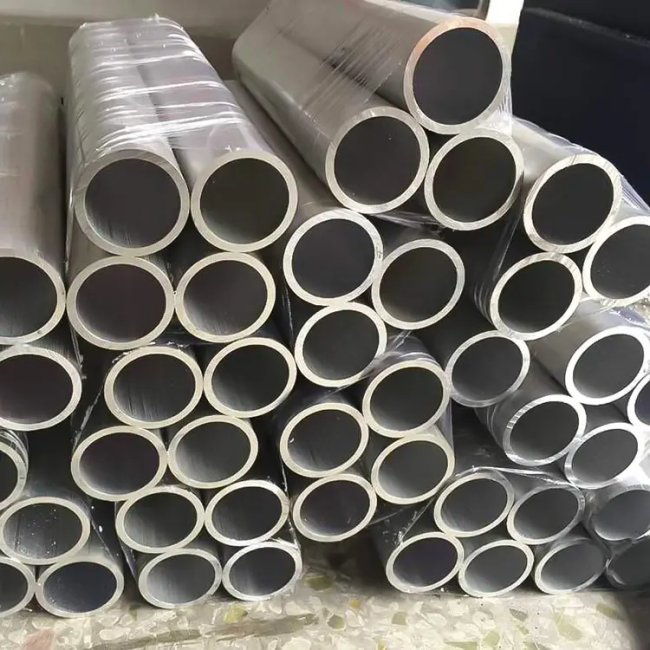

ASTM B209 3003 2024 T3 - T8 Aluminum Pipe 0.8 - 40mm Wall Thickness For Building
Product Description
Aluminium is a highly versatile metal, known for its light weight, corrosion resistance, and excellent conductivity. It is widely used in various industries due to its unique properties. One of the key forms in which aluminium is used is in the shape of tubes. Aluminium tubes come in different shapes and sizes, making them suitable for a wide range of applications.
| Item | Aluminium pipe |
| Material | Aluminium |
| Grade | 1000 series: 1050,1060,1070,1080,1100,1435, etc |
| 2000 series: 2011,2014,2017,2024, etc | |
| 3000 series: 3002,3003,3104,3204,3030, etc | |
| 5000 series: 5005,5025,5040,5056,5083, etc | |
| 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc | |
| 7000 series: 7003,7005,7050,7075, etc | |
| standards | ASTM, ASME,EN, JIS, DIN,GB/T etc |
| Size | Outer Diameter:3-250mm/customized |
| Wall Thickness: 0.3-50mm/customized | |
| Length: 1000mm -6000mm/customized | |
| Surface treatment | Mill finish,Anodized,Electrophoresis,Powder coating,Wooden grain,Sand blast |
| Surface colors | Nature, silver, bronze, champagne, black, gloden, etc.As customized |
| Temper | T3-T8,O-H118 |
| Moulding/Pattern | 1. Using our moulds, no fee |
| 2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free. | |
| 3. Can be diguessed. | |
| MOQ per size | 1 ton |
| Payment Terms | TT OR 100% LC at sight |
| Delivery Time | Within 7-10 days after receipt the lc or deposit |
Product Detail
Chemical Compositon
| Grade | IS ON OR 209 | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | Al99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 99.5 |
| 1060 | Al99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1070 | Al99.7 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1100 | Al99.0Cu | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | 99 | |
| 2014 | Cu4SiMg | 0.50-1.2 | 0.7 | 3.9-0.5 | 0.40-1.2 | 0.20-0.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 2017 | Cu4MgSi | 0.20-0.8 | 0.7 | 3.5-4.5 | 0.40-1.0 | 0.40-1.0 | - | - | 0.3 | - | 99 |
| 2024 | Cu4Mg1 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 3003 | Al Mn1Cu | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 99 |
| 5005 | AlMg1(B) | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | - | 0.25 | - | 99 |
| 5042 | Al Mg3.5Mn | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | 99 |
| 5052 | Al Mg2.5 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 99 |
| 5083 | Al Mg4.5Mn0.7 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | - | -0.1 | - | 99 |
| 5754 | Al Mg3 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | 99 |
| 6061 | Al Mg1SiCu | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.36 | - | 0.25 | - | 99 |
| 6063 | Al Mg0.5Si | 0.20-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | - | 99 |
| 6082 | Al Si1MgMn | 0.7-1.3 | 0.5 | 0.1 | 0.40-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | 99 |
| 7050 | Al Zn6CuMgZr | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | 99 |
| 7075 | Al Zn5.5MgCu | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.0 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | 99 |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q: Are you manufacturer?
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 1 Tons are requested as the minimum order quantity on our side.
We can accept smaller quantities if the warehouse has the right stock size.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Purchase quantity
