Professional Customization Aluminum Pipe ASTM 5052 5083 T651 40mm Round polished
Professional Customization Aluminum Pipe ASTM 5052 5083 T651 40mm Round Polished
Product Description

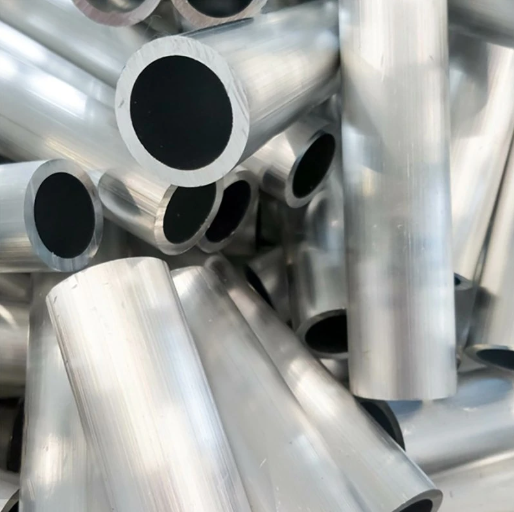

We offer a wide range of high-quality aluminum tubes in various styles to meet different requirements. Our aluminum tube products come in diverse shapes, including the common round, square, rectangular ,hexagonal tubes, as well as special profile tubes, catering to various applications in different fields. Whether for pipelines, structures, decorations, or other projects, we provide customized aluminum tube solutions.
|
Item
|
Aluminum Tube/Pipe
|
|
Standard
|
GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006 etc
|
|
Grade
|
1000,2000,3000,4000,5000,6000,7000 series
|
|
Temper
|
O-H112/T3-T8/T351-T851
|
|
Tolerance
|
±1%
|
|
Surface Treatment
|
Mirrored,Brushed,Sand blasted,Etched,Titanium,Embrossed,Wood Grain Pattern
|
|
Processing Service
|
Bending,Punching,Cutting etc
|
|
Edge
|
Mill edge,Cut edge
|
|
Thickness
|
0.1-20mm or as required
|
|
Width
|
10-220mmrequired
|
|
Customized
|
Yes
|
|
Certificate
|
ISO9001
|
|
Package
|
Standard Seaworthy Wooden Pallet Packing
|
|
MOQ
|
1 Ton
|
|
Sample
|
Available
|
|
Delivery Time
|
7-10 Working Day,depends on the specific quantity
|
Product Detail
Chemical Compositon
| Grade | IS ON OR 209 | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | Al99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 99.5 |
| 1060 | Al99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1070 | Al99.7 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1100 | Al99.0Cu | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | 99 | |
| 2014 | Cu4SiMg | 0.50-1.2 | 0.7 | 3.9-0.5 | 0.40-1.2 | 0.20-0.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 2017 | Cu4MgSi | 0.20-0.8 | 0.7 | 3.5-4.5 | 0.40-1.0 | 0.40-1.0 | - | - | 0.3 | - | 99 |
| 2024 | Cu4Mg1 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 3003 | Al Mn1Cu | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 99 |
| 5005 | AlMg1(B) | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | - | 0.25 | - | 99 |
| 5042 | Al Mg3.5Mn | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | 99 |
| 5052 | Al Mg2.5 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 99 |
| 5083 | Al Mg4.5Mn0.7 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | - | -0.1 | - | 99 |
| 5754 | Al Mg3 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | 99 |
| 6061 | Al Mg1SiCu | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.36 | - | 0.25 | - | 99 |
| 6063 | Al Mg0.5Si | 0.20-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | - | 99 |
| 6082 | Al Si1MgMn | 0.7-1.3 | 0.5 | 0.1 | 0.40-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | 99 |
| 7050 | Al Zn6CuMgZr | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | 99 |
| 7075 | Al Zn5.5MgCu | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.0 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | 99 |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q: Are you manufacturer?
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request.
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 1 Tons are requested as the minimum order quantity on our side.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Purchase quantity
