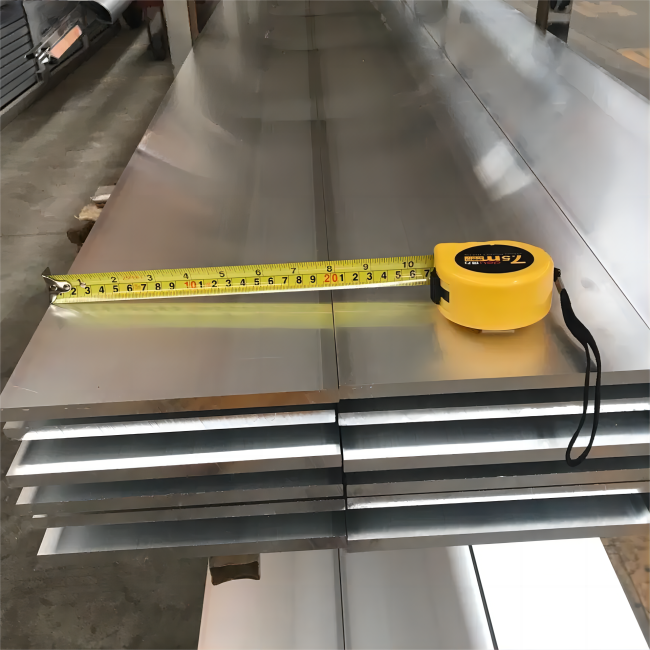

Custom Length 6063 -T5 Aluminium Flat Bar Extruded Alloy 10mm 20mm Width Mill Finish
Custom Length 6063 -T5 Aluminium Flat Bar Extruded Alloy 10mm 20mm Width Mill Finish
Description
| Item | Aluminum flat bar |
| Material | Aluminium alloy |
| Size | Width:5-650mm |
| Length<12m | |
|
Grade |
1000 series: 1050,1060,1070,1080,1100,1435, etc 2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc |
|
Surface Treatment |
Mill finish,anodized, Powder coating,Wooden grain,Sand blast, electroplate |
| Package | Packed in bundle with plastic bags and kraft paper, then fixed on the tray |
| MOQ | 500KG |
| Leading Time | 7-10 days after advance payment |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | - | - | 0.1 | - | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | - | 0.25 | - | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | Rem. |
| 5038 | 0.40-0.7 | 0.4 | 0.1 | 0.40~1.0 | 4.0-4.9 | - | 0.3 | 0.2 | Rem |
| 5083 | ≤0.40 | 0-0.4 | ≤0.10 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | ≤0.25 | ≤0.15 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rem. |
| 6082 | 0.7-1.3 | 0.5 | 0.10 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.25 | 0.25 | Rem. |
| 6063 | 0.20-0.6 | 0.35 | 0.10 | 0.10 | 0.45-0.9 | 0.10 | 0.10 | 0.10 | Rem. |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 99.60 |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem. |
Mechanical property
|
Alloy |
Temper
|
Tensile Strength
|
Yield Strength
|
Elongation (%)
|
Tensile Strength
|
Yield Strength
|
|
|
|
(ksi)
|
(ksi)
|
0.01-0.05 in
|
0.051-0.125 in
|
(MPa)
|
(MPa)
|
|
|
1100 |
H12
|
16
|
15
|
4
|
12
|
110.3
|
103.4
|
|
H14
|
18
|
17
|
3
|
10
|
124.1
|
117.2
|
|
|
3003 |
H12
|
19
|
18
|
9
|
11
|
131
|
124.1
|
|
H14
|
22
|
21
|
3
|
7
|
151.7
|
144.8
|
|
|
3004 |
H32
|
31
|
25
|
6
|
15
|
213.7
|
172.4
|
|
H34
|
35
|
29
|
5
|
10
|
241.3
|
199.9
|
|
|
3005 |
H12
|
26
|
24
|
5
|
13
|
179.3
|
165.5
|
|
H14
|
29
|
28
|
4
|
9
|
199.9
|
193.1
|
|
|
5005 |
H12
|
20
|
19
|
5
|
9
|
137.9
|
131
|
|
H14
|
23
|
22
|
4
|
7
|
158.6
|
151.7
|
|
|
5052 |
H32
|
33
|
28
|
7
|
10
|
227.5
|
193.1
|
|
H34
|
38
|
31
|
6
|
8
|
262
|
213.7
|
|
|
5056 |
O
|
42
|
22
|
23
|
24
|
289.6
|
151.7
|
|
H38
|
60
|
50
|
6
|
13
|
413.7
|
344.7
|
|
|
6061 |
T4
|
35
|
21
|
22
|
24
|
241.3
|
144.8
|
|
T6
|
45
|
40
|
12
|
17
|
310.3
|
275.8
|
|
|
7075 |
O
|
33
|
15
|
16
|
18
|
227.5
|
103.4
|
|
T6
|
83
|
73
|
11
|
12
|
572.3
|
503.3
|
|
Recommend Products
Application
Aluminium flat bar can be widely applied in construction, machinery, electronics, sports equipment, advertising, transportation, consumer goods, furniture, aviation, military, and other applications.
Packing & Shipping
Certificate
FAQ
1. Are you manufacturer?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Aluminum products,copper tube,copper sheet,copper coil,titanium tube,titanium sheet
4. why should you buy from us not from other suppliers?
High cost performance, product quality, in the steel industry has more years of trading experience, can provide a stable source of goods for enterprises
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
