Stable Automatic Screw Feeding System Durable Stainless Steel

Price Negotiable

Price: USD54~ 194

MOQ: 1

Delivery Time: 3-15days

Brand: waterun

Product Description

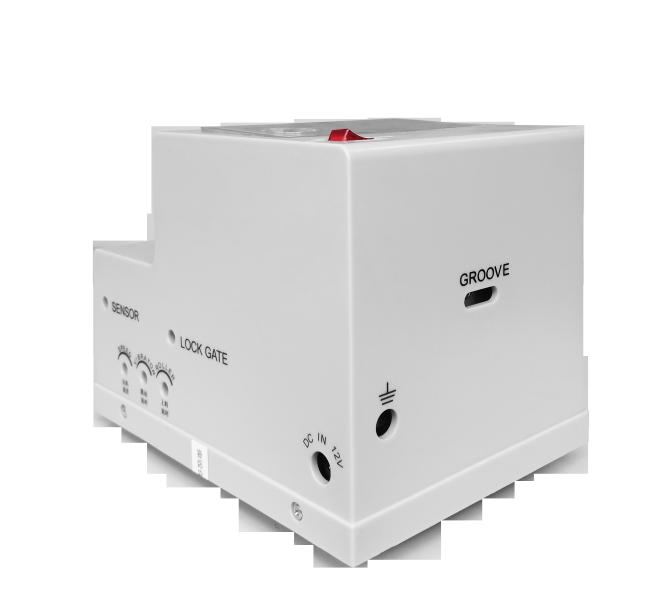

Auto Screw Feeder Driver Conveyor System Screw Counting Function Stainless Steel

Product Detail:

1. New technology , the machine will never get jammed with screws .

2. Convenient to operate and fix the problem by the operator .

3. With self-detecting system for machine breakdown .

4. Rail adjustment range : M1.0-M5.0

5. Digital display prevents error occurred .

6. Automatic circular counting with fixed quantity .

Technical Details:

Model	Waterun-900D
DC power supply	AC220V, DC12V 500MA, AC Adapter
Applicable screw length(under head)	Up to 20mm
Rail adjustment range	M1.0-M5.0
Speed of picking up	1.5 sec/piece
Product size	180 x 125 x 150mm
Weight	About 3kg

Introduction:

It is unnecessary to target the screw cap, compared to screw plate, each screw can save 1.4 seconds, productivity increased by 4 times!

When the settings achieved, the machine will automatic alarm and cycle, it is very clear to see with digital display panel.

When non--normal condition occurs, the machine can automatic alarm.

The volume is exquisite, does not occupy the space.

Problems and solutions :

Malfunction	Reason	Solutions
Screw Feeder can't work	1:Power supply broken,2:Switch is broken	Replace the broken part
Power indicator is on,but the machine can't work	1:Front/back sensor block the signal； 2:The motor power cable is cut	1:check and adjust 2:Rewelding the wire
Screw stuck in rail	Up and down brush . The gap between the rail or the position of high limited plate is wrong .	Making the adjustment after checking
Dropping the screw	The up/bottom adjust plate didn't installed very well	Adjust the position of the adjusting plate .
Vibrating all the time	1:The speed of vibration is too big , and the setting delayed time is to long ； 2:Front/ back sensor was in the wrong place	Making the adjustment.
It is too slow to give out the screws .	1:The screw feeder was put on the unflat place； 2:The speed of vibration is too small ；	1:Re-adjust the angle of the rail ; 2:Adjust the speed of giving the screws .； 3:Lengthern the time of delivering and giving the screws .
