TPU Dental Sheet Aligners Comfortable High Technology
Parameters
| Material | TPU |
| Specification | T076RC125N |
| Thickness | 0.76±0.02mm |
| Width | 125.0±1.0mm |
| Color | Colorless, light green, light blue |
| Surface Finish - Surface A | Mirror |
| Surface Finish - Surface B | Frosted |
| Properties | Value | ASTM Standard |
| Proportion | 1.2g/cm3 | D792 |
| Yield Strength | N55MPa | D638 |
| Breaking Tenacity | >65MPa | D 638 |
| Tensile Elastic Modulus | 1900MPa | D638 |
| Bending Strength | 90MPa | D790 |
| Bending Elastic Modulus | 2300 MPa | D790 |
| Yield Elongation | 6% | D638 |
| Breaking Elongation | 150% | D638 |
| 48 hrs Stress Relaxation | 25% | |
| Shore Hardness | 84±3D | D2240 |
| Vicat Temperature | 101C | D1525 |
Advantages
1,High Toughness
More tough than PETG and PP materials,long-term protection of the orthodontic position
2,Strong Stain Resistance
Perfect solution to stained aligners such as coffee
3,More Options
Available in a variety of sizes to meet the clinical needs of different stages
4,Higher Strength
High hard polyester resin, designed for dentistry
5,Light & durable, more comfortable to wear,
Invisible and brighter smile
Application

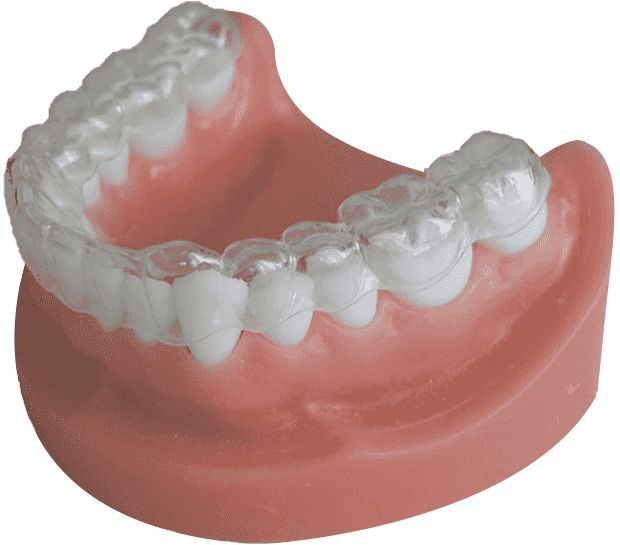

Prismlab orthodontic foils are used for orthodontics. Dentists can formulate special orthodontic schemes according to the orthodontic conditions of patients, and then make specific orthodontic braces in each period to achieve the purpose of teeth. Each invisible braces are customized, and it is easy to make them through prismlab orthodontic foils.
