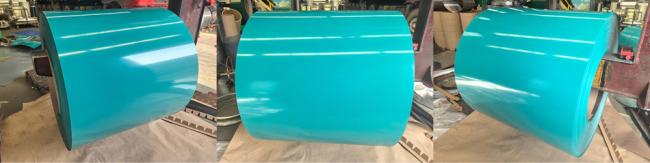

20 micron Top Coating Color Coated Steel Coil For Home Appliance
20 micron Top Coating Color Coated Steel Coil For Home Appliance
Product Description:
Prepainted steel is most commonly used as a solid color and is usually done so by following the RAL standard color chart , to ensure consistency. Alternatively, a sample of the desired color can be sent and we will produce the same tone.
The base metal for ppgi/ppgl is created using cold-rolled steel, hot dipped galvanized steel, electro-galvanized steel or hot dipped galvalume steel. The surface of the material can be coated with a variety of materials such as polyester, silicon modified polyester, polyvinylidene fluoride and high-durability polyester.
Technical Parameters:
| Parameter | Description |
|---|---|
| Tensile Strength | 270-500 MPa |
| Color | Ral Standard Color / Customized |
| Surface Structure | Big/Small/Zero/Regular Spangle |
| Back Coating | 5-7 micron |
| Coil ID | 508 mm / 610 mm |
| Surface | Bright/Wrinkle/Matt |
| Yield Strength | 195-420 MPa |
| Material | Steel |
| Baseplate | Galvanized Or Galvalumed |
| Width | 25-1500 mm |
Applications:
Color coated coils are mainly used in building, transport, home appliances, solar energy, furniture. Especially in home appliances, the sheets are mainly used as the side door plate of refrigerators,and air conditioners, freezers, and washing machine. Using galvanized sheets or galvalume sheet as the substrate, color coated sheet is made by first going through surface pretreatment, then coating for one or more layers, and funally baking and cooling.
Some advantages of pre-painted steel coil :
* Corrosion resistance
* Cosmetically appealing
* Strength of the steel combined with the corrosion resistance of the metallic coating combined with its aesthetic appeal
* Very customizable in terms of color, coating thickness, paint vendor, etc.
* Increase yield in roll formed applications due to time saved painting after forming
RAL standard colors:
Our company’s mainly advantages:
1 We have rich export operation experience for this product, and we know about the common-used spec in your country.
2 We have long-term cooperation with our Forwarder Agent, and harbor reinforcement team, they dedicated to the operation of these raw material product for over 10 years.
3 For every order, we have strictly packing and loading demand, we also take samples from the batch product, check the mechanical properties and the capacity of corrosion resistant.
4 Business is cruel, we just keep sincerely and patiently to match the right customers.
