Automatic Linear Model 3L-10L Water Bottle Rinsing Filling Capping Machine
Automatic Linear Model 3L-10L Water Bottle Rinsing Filling Capping Machine
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
Product Paramenters:
| Model |
CGFL4-4-1 (linear type) |
CGFL8-8-1 (linear type) |
CGFL12-12-1 (linear type) |
CGF12-12-4R (rotary type) |
CGF16-16-4R (rotary type) |
CGF20-20-6R (rotary type) |
| Heads of washing,filling ,capping | 4-4-1 | 8-8-1 | 12-12-1 | 12-12-4 | 16-16-4 | 20-20-6 |
| Productiona capacity(bottle/hour) | 600-800 | 1200-1500 | 1800-2000 | 3000-3500 | 4000-4500 | 5000-6000 |
| Suitable bottle diameter(mm) | Φ=100-200 H=170-380(5000-10000ml) | |||||
| Spraying pressure(kg/cm²) | 2-3 | |||||
| Motor power/Maiin motor(kw) | 3.0 | 3.0 | 3.7 | 5.0 | 6.5 | 9.0 |
| Overall dimension(L×W×H) | 4200×1400×2500 | 6100×1400×2500 | 8800×1400×2500 | 3100×2100×2550 | 3800×2300×2800 | 4500×2800×2900 |
| Weight(kg) | 2500 | 3500 | 4500 | 4800 | 5500 | 7500 |
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and soon.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits .

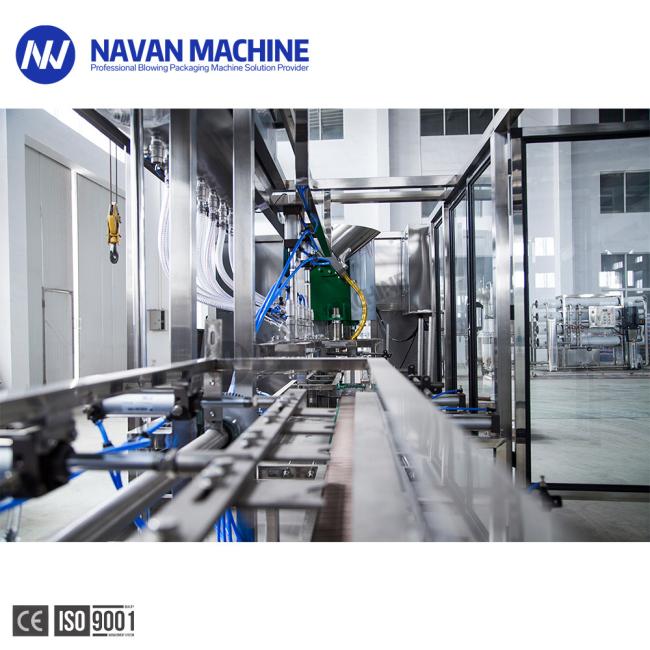

NAVAN Water bottling machine combines washing,filling and rotary capping functions into one unit which is a fully automatic and high efficieney liquid packing equipment.
Rinsing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

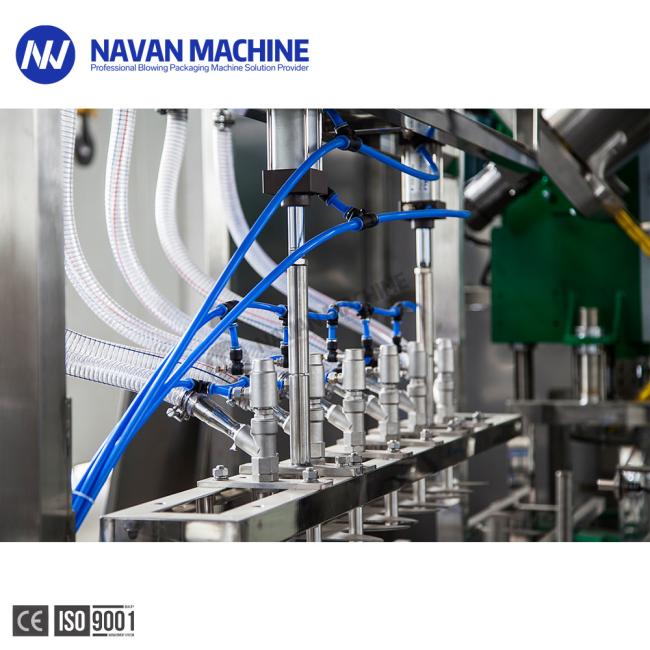

Bottle Filler
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

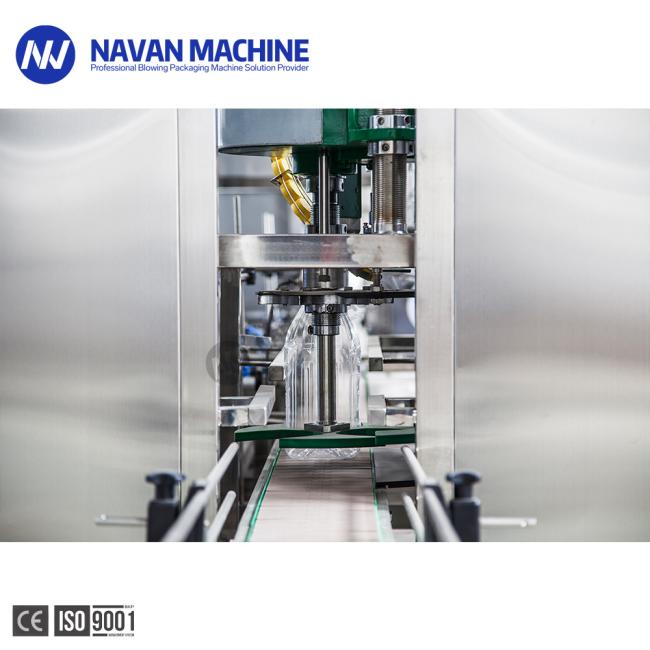

Bottle Capper
The Capper consists of an internal steel structure with stainless steel casing. Fixed components include the cap hopper, cap feeder and cam actuating capping heads. The cap feeder and all contact parts are made of stainless steel or food grade plastic. The cap feeder guides the caps onto a chute for pick-up. A rotative capping turret with magnetic chuck heads applies plastic screw caps on PET bottles.
