Automatic Water Filling Machines Washer Capper Function 3 In 1 For Small Bottle

Applications:

PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes.

Product Paramenters:

Features :

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.

This machine is used to fill juice and noncarbonated drink into pet bottle and with screw caps capping

function.

This machine integrated three function:

1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

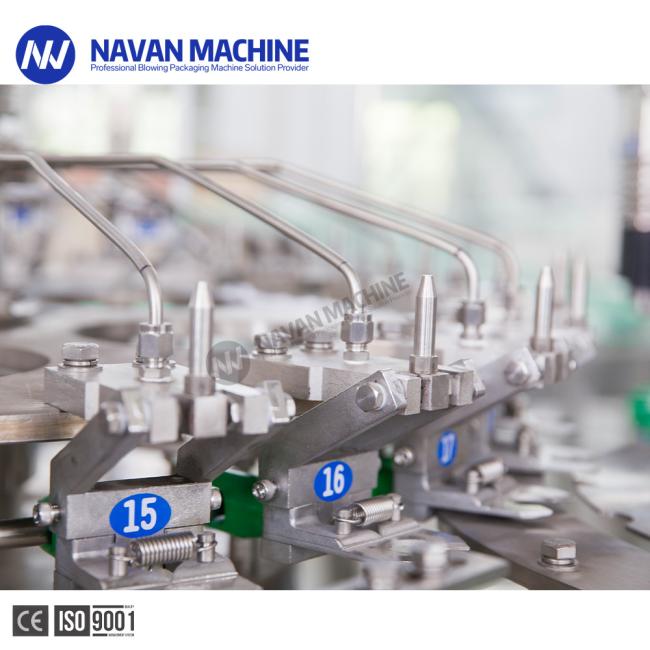

Rinser Station:

• All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
• 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
• 304 stainless steel washing pumps

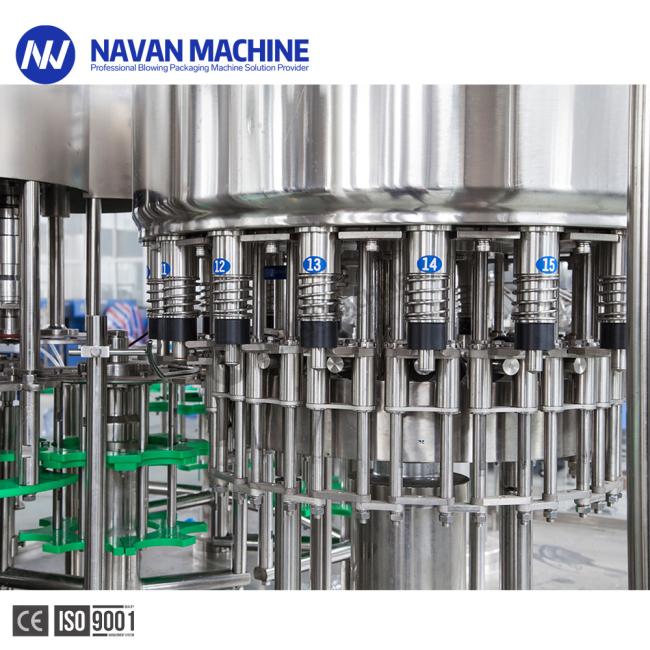

Filler station

High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

All 304 stainless steel contact parts &

liquid tank, fine polish, easy to clean

No bottle no filling

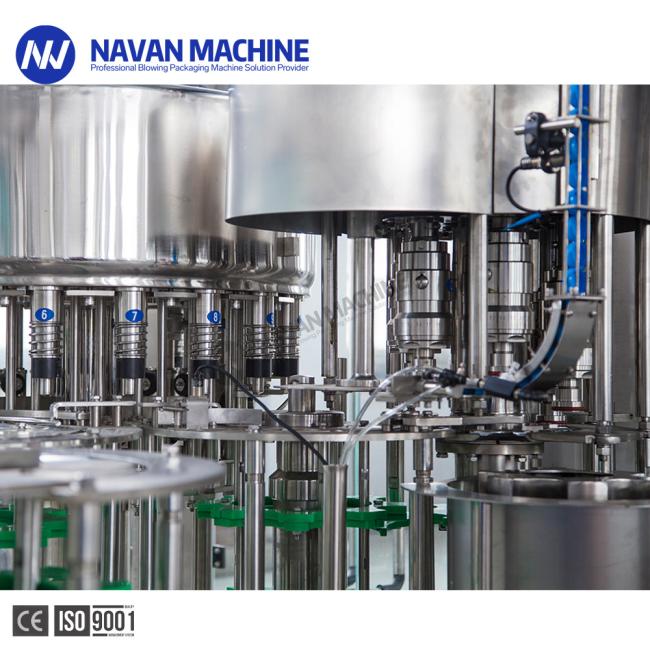

Capper Station

• The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts.

• Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head.

• Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often.

• When capping head catch cap, it will go down to bottle mouth and finish capping.

Electric Part & Safe Device & Automation:

• When accident system automatic stop & alarm
• Emergency switch when accident
• PLC , Touch-screen Control Panel & inverter
• Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

• 304 stainless steel frame
• Tempering Glass window, Clear & no odor
• Excellent start wheel design, easy change over parts
• Machine Base with anti-rust process, ensure the forever antirust
• All seal where liquid may Leakage & base neck come with rubber, water proof
• Manual lubrication system

1.installation&commissioning

After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed

2.Quality assurance

The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.

3.Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.
