Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine
Auto 1000BPH Carbonated Soft Drink 3-In-1 Washing Filling Capping Machine
Carbonated soft drink 3-in-1 filling machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
Product Paramenters:
| Model | CGFD8-8-4 |
| Application | Soda water , sparkling water , Govas, cola etc ...carbonated drink |
|
Number of washing,filling& capping heads |
8-8-4 |
|
Production capacity(500ml) |
800~1000 |
| Filling precision | ≤±5mm(liquid level) |
|
User Ambient Conditions |
Temperature:10~40℃; Humidity: No dew |
|
Suitable bottle specification |
Volume=100-2000ml Diameter φ=50-100 Bottle height H=150 ~340mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style |
Plastic Screw Cap φ=20-50 |
| Machine material | Food stage SS304 OR SS316 |
|
Air source pressure(Mpa) |
0.5-0.6 |
| Filling way/principle | Isobaric filling |
| Motor power(kw) | Main motor 1.9kw |
| Control System | SIMENS PLC+ TOUCH SCREEN |
| Features |
No Bottle No Filling No Bottle No Capping |
| Power Supply |
Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement |
|
Overall dimensions(mm) |
1900*1420*2000 |
| Weight (kg) | 1500 |
Product Description

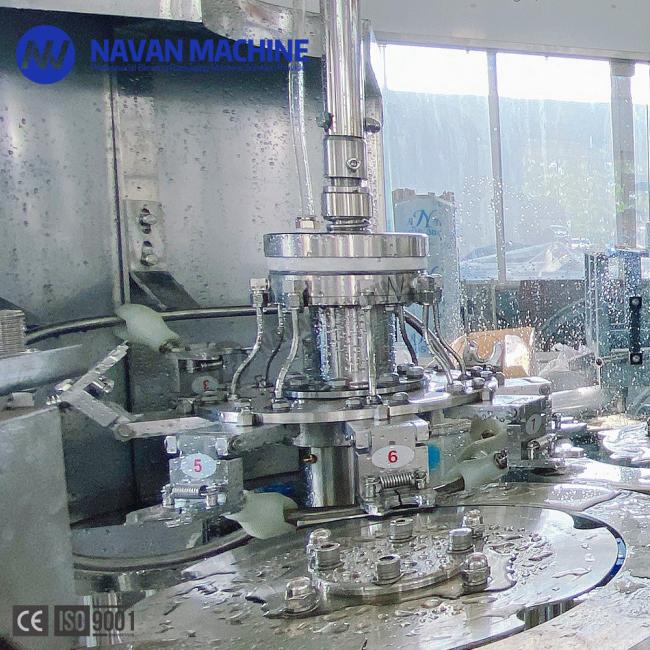

Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

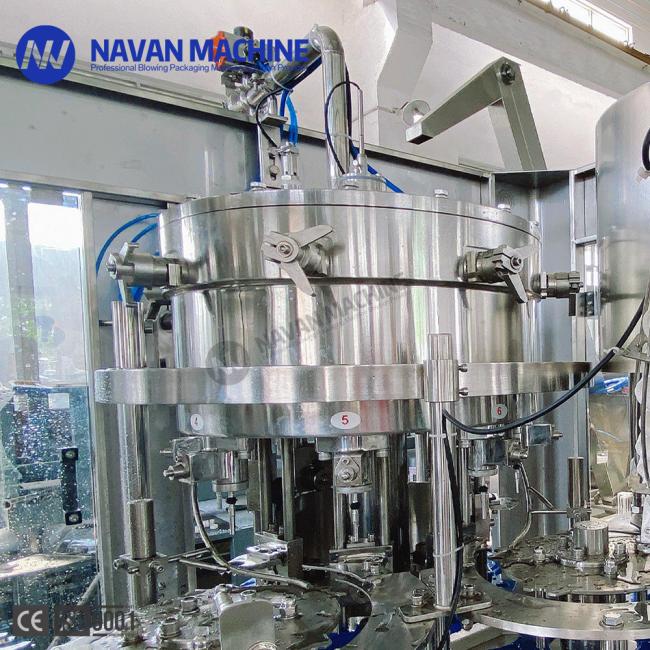

Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

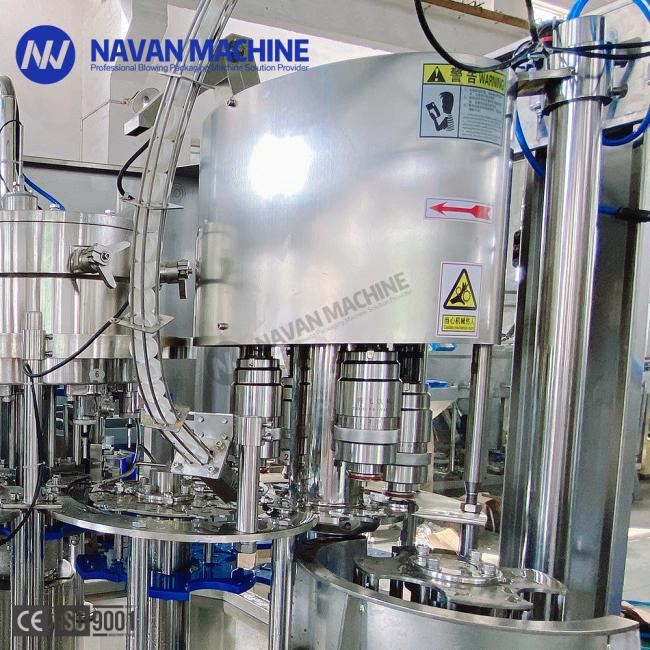

Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Our Service
- Standardized workshop of total 20,000 square meters.
- Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
- The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
- Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
- The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
- Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
