Auto Glass Bottle Carbonated Drink Washing Filling Capping Machine Line
Auto Glass Bottle Carbonated Drink Washing Filling Capping Machine Line
It's used to filling gas-contained liquid in glass bottle - special plastic ring pull aluminum cap, with bottle washing, filling, sealing parts.Widely used in every beverage factory.
Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc
| Main Technical parameters | |
| Model | NPXGF18-18-6 |
| Produciton capacity(330ml) | 3000-5000 |
| Heads of Rinsing Filling & Capping | 18-18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Isobaric filling (twice vacuumized ) |
| Filling temperature (℃) | 0~5 |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 3 |
| Total power(kw) | 3.18 |
| Overall dimensions(mm) | 3012x2012x3260 |
| Weight(kg) | 3800 |
Details of the Machine

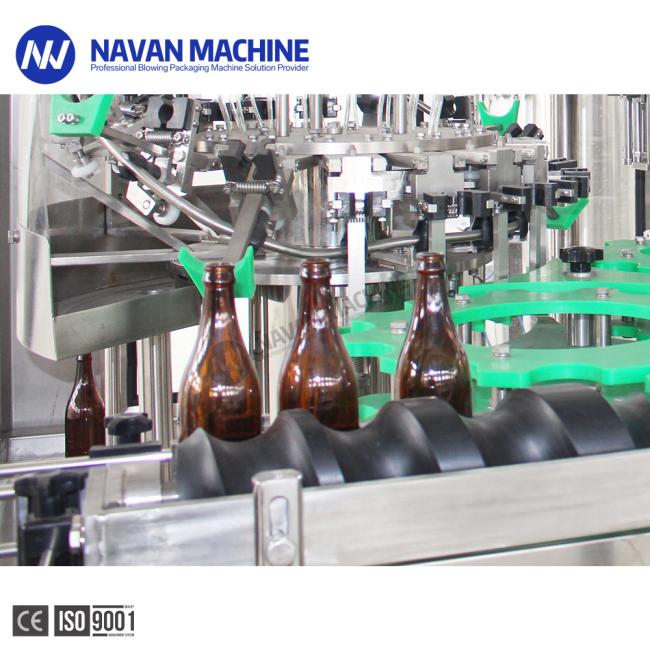

- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

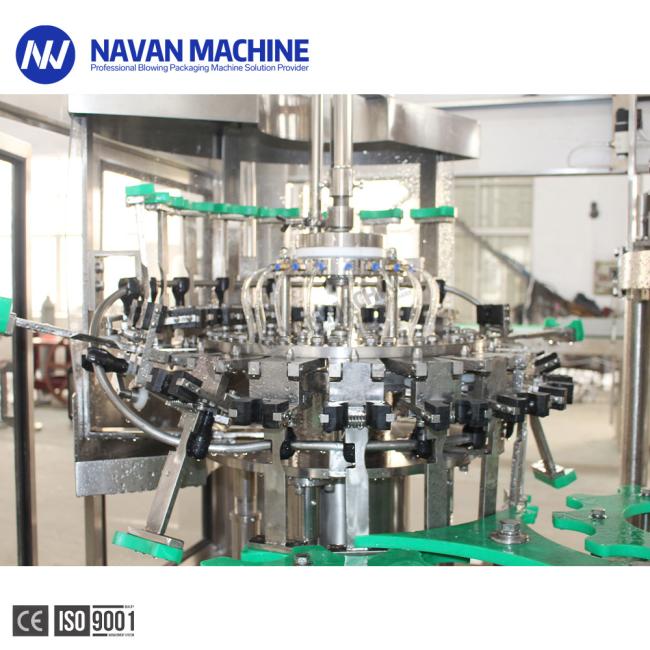

- Glass Bottle Washing.
Spring cramps are used in the bottle washing process.
The empty bottles can be turned over 180~ along the conveying rail.
There are two times of internal and external washing, the efficiency of bottle washing is high.

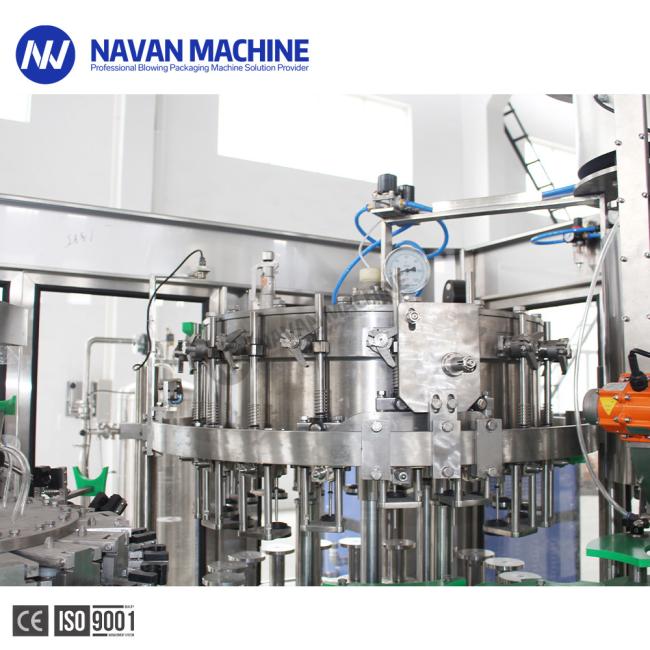

- Glass Bottle Filling
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing

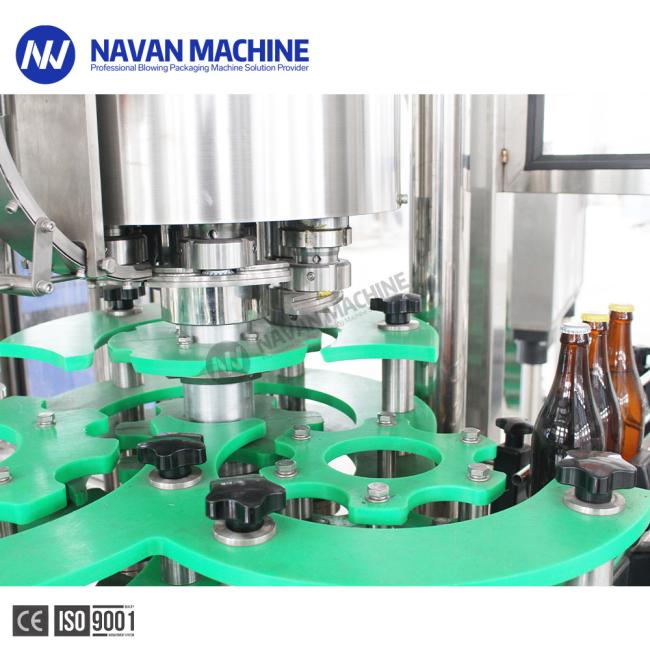

-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Our Service
- Standardized workshop of total 20,000 square meters.
- Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
- The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
- Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
- The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
- Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
