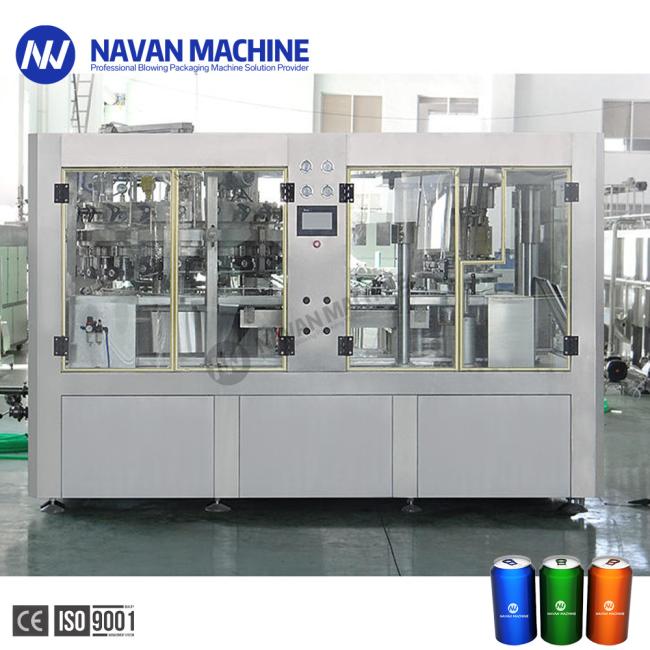

Automatic Soda Water Beer Aluminum Tin Can Filling And Sealing Machine

Machine process:

Equal pressure filling is adopted. During filling.

• The empty can reaches into the can lifting cylinder after passing through the pneumatic triplex parts, and the empty can is raised and the conical seal gasket under the filling valve is sealed.
• The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty can to form the equal pressure.
• From a large material barrel, the beer passes through 14 small conduits and flows into empty can. When the liquid level in the empty can blocks the gas return pipe mouth, then the filling stops.
• Under the action of arm, the de-forming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it's discharged, the can is sent to the sealing machine for sealing machine for sealing by the hook chain that runs synchronously. During the sealing, the sealing wheel carries out pre-sealing and then real sealing. After it's sealed, the can is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.

Main Technical Parameters:

Competitive Advantage:

• One year warranty for the whole system
• Free equipment installation and debugging
• After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
• Every 3 years, we can help to overhaul the machine free (Labor)
• We can provide internship service and help you train the operator and mechanic
• Free production technology and process configuration
• We can help you to design the production line, workshop and provide turn-key project
