Automatic 200-2000ml Glass Bottle Kombucha Washing Filling Capping Machine
Automatic 200-2000ml Glass Bottle Kombucha Waashing Filling Capping Machine
For the centering guide of our NPXGF glass bottle washing filling capping 3-in-1 unit, we adopt double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF50-50-15 |
| Produciton capacity(330ml) | 18000-19000 |
| Heads of Rinsing Filling & Capping | 50-50-15 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 11 |
| Total power(kw) | 11.5 |
| Overall dimensions(mm) | 4987x3846x3200 |
| Weight(kg) | 11000 |
1 - NXGF Glass Bottle Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

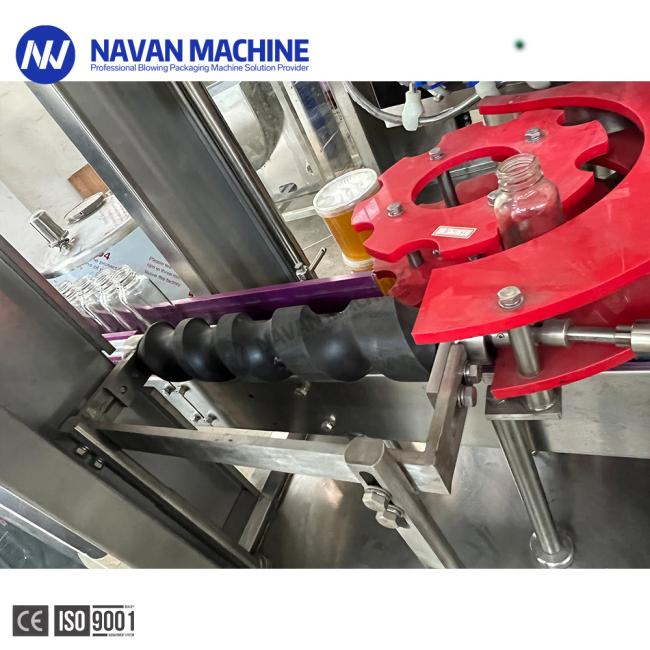

2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

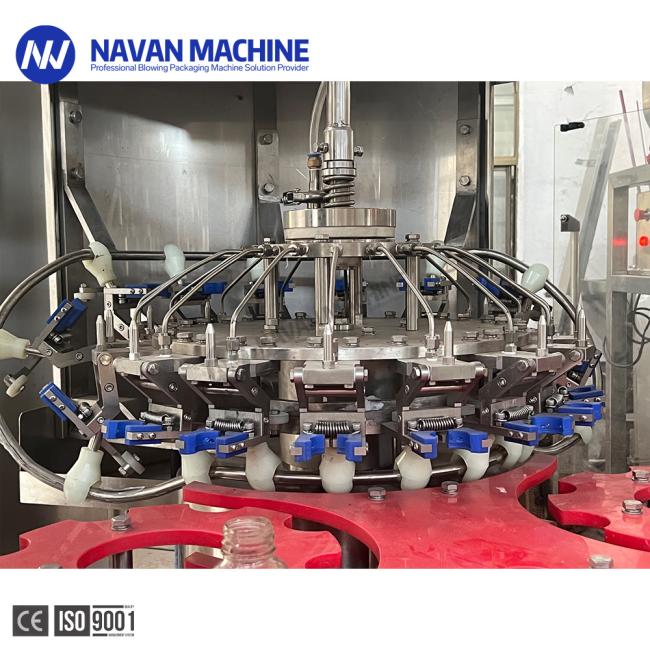

3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

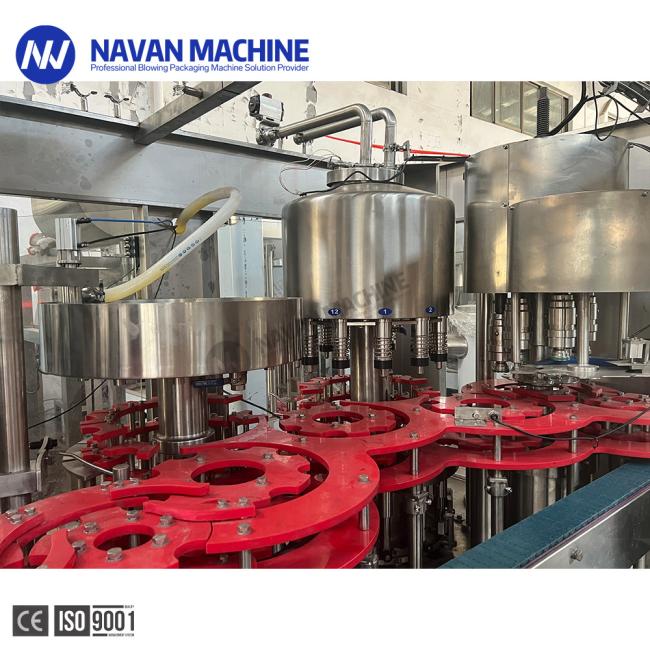

4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

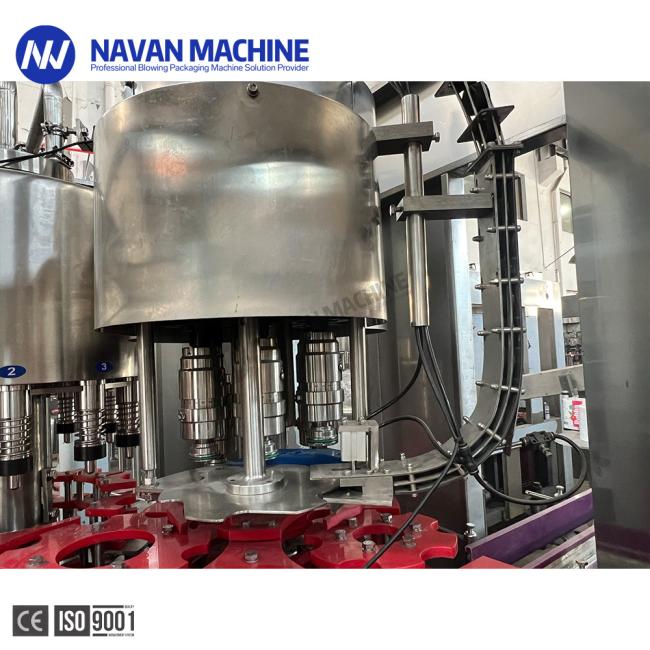

5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
