Small Linear Water Filling Machine Automatic Pure / Mineral Water Filling Rinsing Capping Line
Small Linear Water Filling Machine Automatic Pure / Mineral Water Filling Rinsing Capping Line
The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.
Product Paramenters:
| Model | CGF40-40-10/12 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 40-40-10/12 |
| Production Capacity(500ml) | 19000-20000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 7.5kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 4600*2800*2600 |
| Weight (kg) | 8500 |
| All machines could be customized , we could design and produce machines according to your request. | |

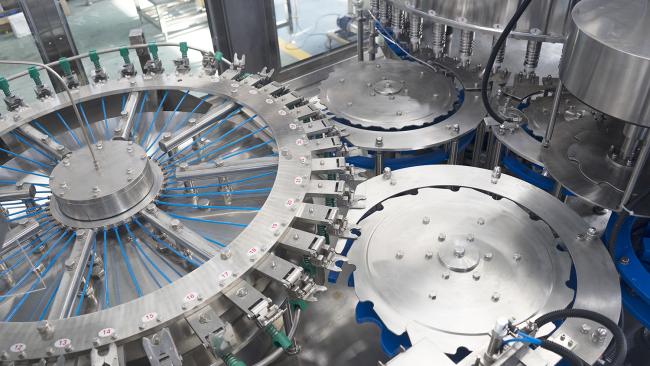

Rinser Station:
- All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
- 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
- 304 stainless steel washing pumps
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Capper Station
- Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304stainless steel construction
- No bottle no capping
Electric Part & Safe Device & Automation:
- When accident system automatic stop & alarm
- Emergency switch when accident
- PLC , Touch-screen Control Panel & inverter
- Food Grade 304 stainless steel rinsing pump, reliable & sanitary
Machine Base & Machine Construction:
- 304 stainless steel frame
- Tempering Glass window, Clear & no odor
- Excellent start wheel design, easy change over parts
- Machine Base with anti-rust process, ensure the forever antirust
- All seal where liquid may Leakage & base neck come with rubber, water proof
- Manual lubrication system
Company introduction:
Our company is a renowned manufacturer specializing in the production of beverage packaging equipment and a wide range of water treatment equipment. We have established a strong reputation among our customers both domestically and internationally.
Currently, we offer a comprehensive range of production lines for various beverages including mineral water, pure water, fruit juice, tea drinks, milk drinks, and carbonated drinks. These production lines have a capacity ranging from 1000 to 20000 bottles per hour. Additionally, we also manufacture production lines for vinegar, soy sauce, and wine. Furthermore, we produce 3-5 gallon barreled water production lines with a capacity of 80-120 barrels per hour. In addition to these, we also offer various water treatment plants.
